RWD Digital Microscope
SKU: DOM-1001
RWD Digital Microscope
Description

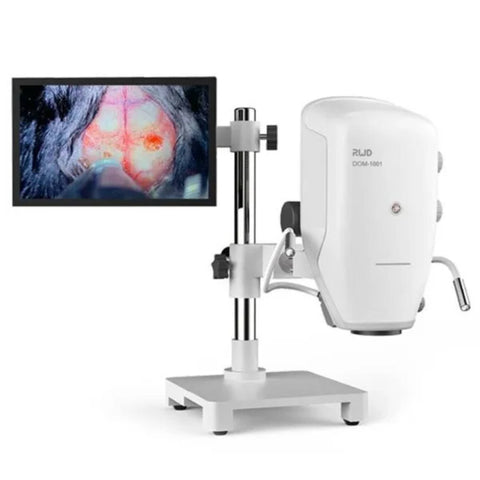

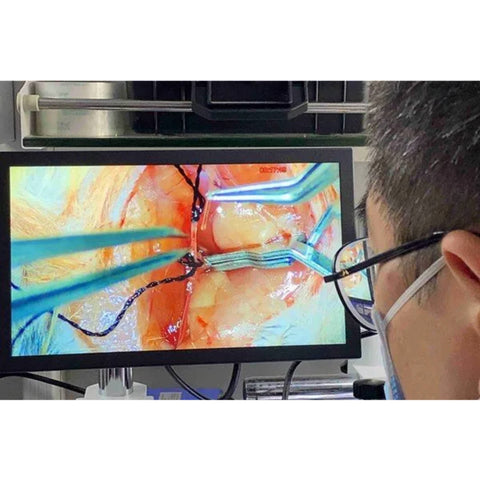

DOM-1001 is a 16 Million Pixels high-end integrated digital microscope, and enables real-time record, collect, and share high-definition 4K images and videos(1080P). Multiple people can view samples simultaneously, supporting the whole process of taking pictures and videos. it is widely applied in Life science: dental, animal surgery, tumor, morphological observation, embryologic histology, education, Industry & Manufacturing: electronics& semiconductor, metals, medical, new energy, etc.
Features
- 16MP CMOS camera: The camera comes with fast automatic one-key exposure, supports exposure compensation, and can quickly shoot samples that contain areas of sharp bright and dark contrast.
- Auto/manual one-button white balance and RGB adjustable enables real colors.
- FHD resolution real-time images: The 60fps CMOS camera provides recording 4K pictures and 1080p videos.
- The 7:1 zoom ratio (with switchable locking aperture) able to realize rapid magnification.

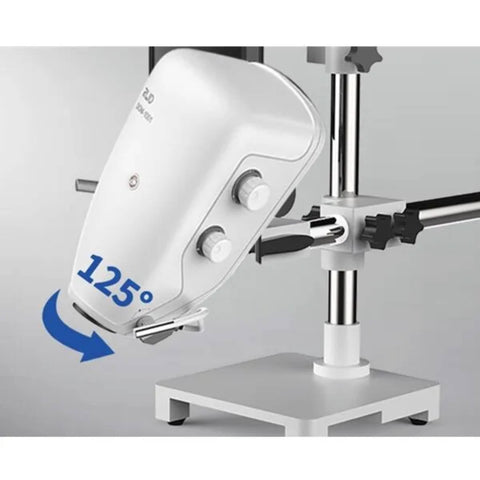

- Ergonomic design : Foot pedal to adjust focal length, 180 mm working distance.
Specifications
|
Parameter item |
Technical Item Description |
|
Resolution |
1920×1080pixel |
|
Sensor grade |
Panasonic 1600W 1/2.33″CMOS |
|
Pixel size |
1.335μmX1.335μm |
|
Sensor size |
6.18mmx4.65mm |
|
magnification |
18-100x (27-inch monitor) |
|
Zoom Ratio |
07:01 |
|
Working distance |
180mm |
|
The depth of field |
6.7 mm (Highest magnification), 0.41 mm (Lowest magnification） |
|
Model |
Type name |
Number |
Notes |
|
DOM-1001 |
Digital Microscope |
N |
Standard configuration includes 11.6-inch display |
