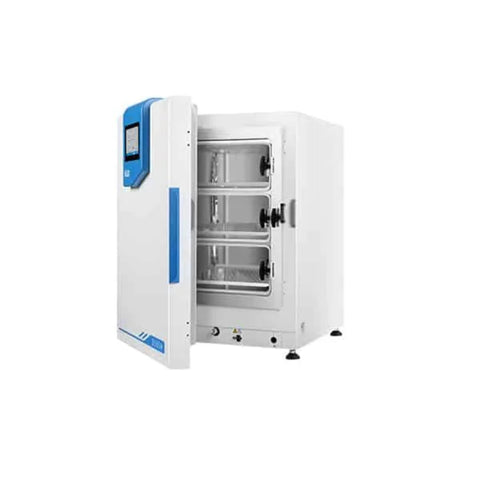

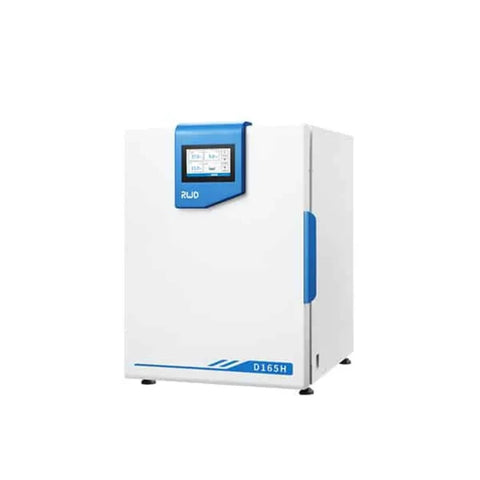

RWD D165H CO2 Incubator without O2 Sensor
SKU: D165H
RWD D165H CO2 Incubator without O2 Sensor
Description
RWD D165H CO₂ incubator for cell culture has been upgraded with a 180℃ high-temperature sterilization program for more thorough microbial elimination; a new multi-level humidity adjustment function has been added to reduce the formation of condensation; an optional three-small-partition inner door is available for flexible sample storage and to reduce air exchange within the chamber, making daily cleaning and maintenance simpler.
RWD D165H CO₂ incubator for cell culture is upgraded to 180℃ high-temperature sterilization, effectively killing 99.99% of microorganisms.
RWD D165H CO₂ incubator for cell culture uses direct hot-water reservoir humidification to ensure more precise humidity control.
RWD D165H CO₂ incubator for cell culture adopts three small doors, which cause less disturbance when opening and closing.
Advantages
More effective sterilization procedure
RWD D165H CO₂ incubator for cell culture implements a 180°C dry heat sterilization program that can efficiently kill fungi, molds, bacteria, and their spores. It has been validated by a third party, ensuring a sterilization effectiveness of up to 12log SAL. The entire process takes approximately 12 hours.
More efficient humidity control

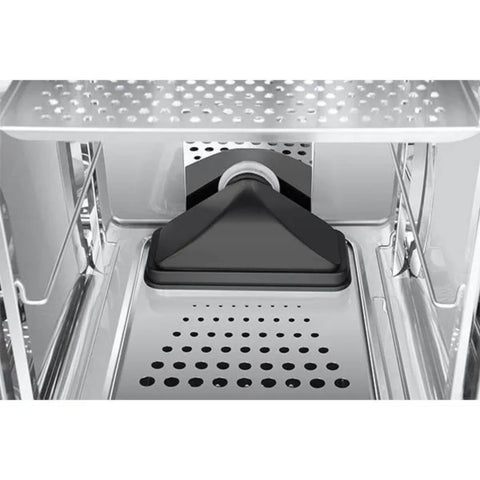

RWD D165H CO₂ incubator for cell culture adopts a reservoir design that enhances internal space efficiency and accelerates humidity recovery by five times compared to standard water pans. After a 30-second door opening, relative humidity is restored within 10 minutes. The system monitors water levels in real-time to ensure timely refilling and maintain optimal humidity. It also features a low-humidity mode to prevent condensation and contamination.
More energy-efficient internal door accessories
RWD D165H CO₂ incubator for cell culture offers an optional triple small-section door design that not only effectively reduces the amount of air exchange each time a door is opened – thereby lowering the risk of fluctuations in the internal environment – but also significantly enhances the convenience and safety of operations.
A brand-new software upgrade
RWD D165H CO₂ incubator for cell culture is equipped with the R-Link intelligent cloud-based control system, allowing you to monitor the device status anytime and receive real-time alarm notifications on your mobile device, ensuring timely handling and safeguarding the samples.
Specifications
|
Parameters |
Size & Weight |
Interior Volume |
170L |
|
Internal dimensions |
47.0(W)×57.0(D)×60.0(H) cm |
||
|
External dimensions |
69.0(W)×87.0(D)×93.0(H) |
||
|
Net Weight |
110KG |
||
|

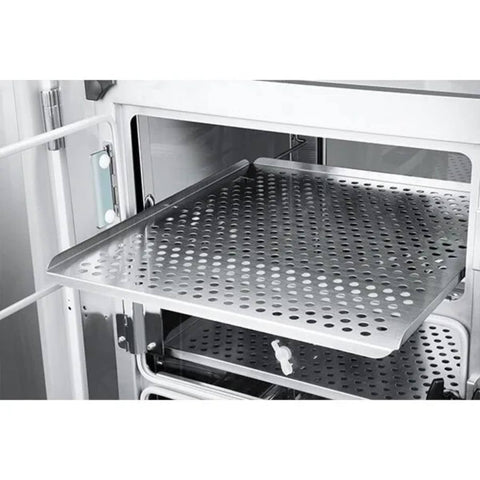

Shelves |
Number (Standard & Max) |
3, up to 11 |
|
|
Dimensions |
41.8*46.5cm；1943.7cm2 |
||
|
Load bearing |
16 kg/sheet |
||
|
Temperature |
Heating Method |
Gas jacket direct heating |
|
|
Sensor |
Dual Pt1000 platinum thermistor |
||
|
Controller |
PID |
||
|
Control & Range |
± 0.1 ℃ @37 ℃, 3 ℃ -55 ℃ higher than ambient temperature |
||
|
Uniformity |
±0.25℃@37℃ |
||
|
CO2 Concentration |
Control & Range |
±0.1%@5%，0 ~ 20% |
|
|
Sensor |
190 ℃ high temperature infrared (IR) probe |
||
|
Input pressure |
Recommended 0.08~ 0.1 Mpa |
||
|
Uniformity |
±0.3% |
||
|
Readability & Setability |
0.1% |
||
|
Humidity |
Moisturizing mode |
Integrated reservoir |
|
|
Relative humidity |
≥93% |
||
|
Volume |
3.8L |
||
|
Display |
Water level display |
||
|
Antifouling control |
Sterilization temperature |
180 ℃ high temperature dry heat sterilization |
|
|
Sterilization time |
About 12 hours |
||
|
Filter |
0.3 µm HEPA high-efficiency filter |
||
|
Security settings |
Temperature alarm setting |
User customizable, upper limit: (T + 0.1)~ (T + 5.0); lower limit: (T-0.1)~ (T-5.0) |
|
|
CO2 alarm settings |
User customizable, upper limit: (T + 0.1%)~ (T + 1.0%); lower limit: (T-0.1%)~ (T-1.0%) |
||
|
Humidity alarm settings |
Low water level alarm |
||
|
Door alarm settings |
Alarm prompt 2 minutes after opening the door |
||
|
Safety door lock |
During high-temperature sterilization, the internal cavity temperature exceeds 65 ℃ and automatically locks |
||
|
Software settings |
Display control |
High definition touch screen |
|
|
Data storage and export |
Equipped with R-link IoT module, it can view equipment operation status and receive equipment alarm data through mobile end or fixed end point. The screen can display parameter data within one month and automatically record parameter data within six months. It records once per minute and can also record alarm records and operation records within six months. |
