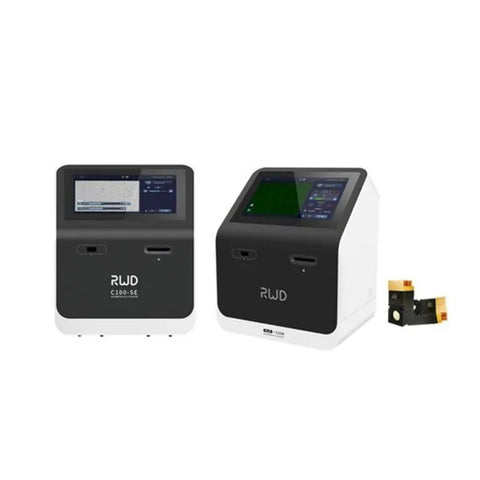

RWD Automated Cell Counter-BrightField
SKU: C100-SE
RWD Automated Cell Counter-BrightField
Description
A Real Time-Saver Speeds up Your Research.
RWD automated cell counters provide two models to meet different customers’ needs in BF&FL cell counting and analysis in 9s. Combined with highly intelligent software and excellent microscopy optics structure, the counters could liberate researchers from the heavy work of daily cell counting.
Overview
The automated cell counter can identify both live and dead cells. Information such as cell counts, viability and diameter can be obtained with just one click. With fluorescence cube, C100 can display images in BF and FL channels simultaneously and present cell counts and cell morphology. It is an optimal device to analyze cell viability and transfection efficiency in immunology and vaccine development, cell therapy, tumor research, stem cell, metabolism research, and others.
Application
Tumor Research: Passage cell line, pre-detection of apoptosis
Immunological research: PBMCs, lymphocytes
Cell Biology Research: Primary Cells
Cell quality control: stem cells, CIK
Cell expression level detection: fluorescent protein, transfection efficiency detection
Advantages
Smart cell recognition
Clustered cells can be identified and counted separately. In trypan blue mode, the counting result will show the proportion of live cells and dead cells.
The results of HEK293 cell line and mouse primary macrophage count showed:
C100 counter has a smaller standard deviation of multiple counts.
The actual measured value and the theoretical value have a slight deviation in a great linear relationship.
The CV value of manual counting can reach more than 10%, while the CV value of the C100 counting result is much lower than 5%.

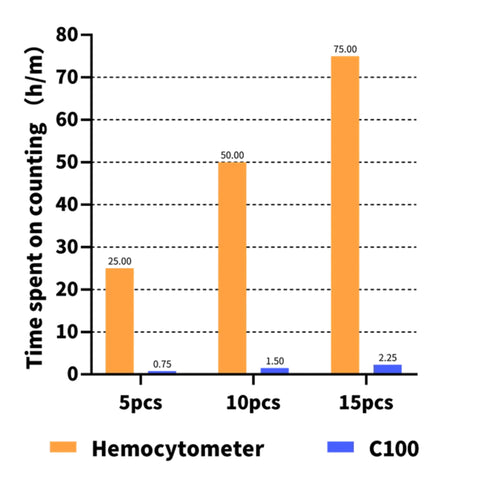

Fast cell counting in 9 seconds
Compared to the hemocytometer, it can save you more than 24hrs within a month when counting 10 samples per day
It takes about 5 minutes to use a hemocytometer for manual cell counting, while C100-SE/C100 only takes 9s. Counting ten samples per day can save more than 24 hours a month.
User-friendly operation

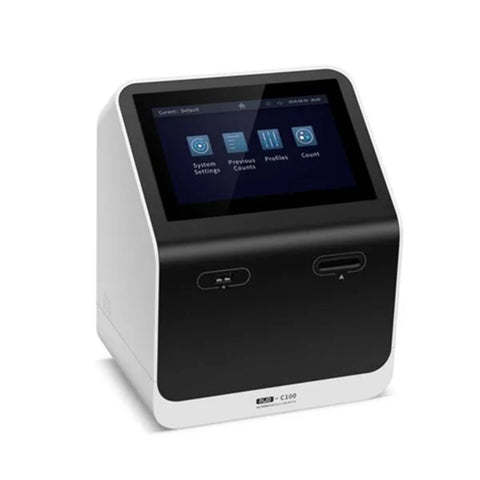

Touchscreen with built-in user guide interfaces ensures easy operation.
Compact design
Small size fits into different placements.
Removable modular FL cubes allow easy switches among various scenes.
Specifications
|
Parameters |
Description |
|
Model |
C100-SE |
|
Amplification Factor |
2.5×, 5.0 Megapixel |
|
Focus Method |
Manual focusing & Autofocusing |
|
Counting Area |
2.15 mm×1.62 mm |
|
Cell Type |
Cell lines, stem cells, primary cells, pollens, beer yeast |
|
Cell Size Range |
4-60 μm (Optimal: 7-60 μm) |
|
Cell Concentration Range |
10^4-10^7 cells/mL |
|
Cell counting Time |
Less than 9s |
|
Historical Data Storage |
1000 counting reports and images at most |
|
Languages |
Chinese and English |
|
Dimensions |
212 mm(W)* 264 mm(H)* 165 mm (D) |
|
Weight |
3.0kg |
|
Cat No. |
Product Description |
|
C100-SE |
Automated Cell Counter (BF) |
