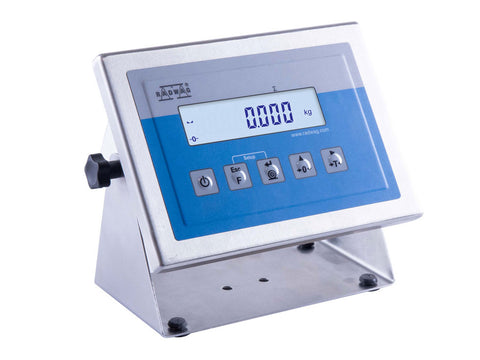

RADWAG PUE 7.1 Weighing Terminal
SKU: WX-008-0025
RADWAG PUE 7.1 Weighing Terminal
Buy RADWAG products from MSE Supplies at the best value.
|
Sku # |
WX-008-0025 |
WX-008-0026 |
|
Model # |
PUE 7.1 |
PUE 7.1P |
|
Protection class |
IP 43 |
IP 66/67 |
|
Housing |
stainless steel |
- |
Ergonomics and Comfort of Operation
It is equipped with 5.7" TFT display featuring a touch panel and a membrane keypad.
The device offers two proximity sensors which can be programmed using the menu. It can connect with maximum 2 weighing platforms, a barcode scanner, a printer, a labeller, RFID reader and PC equipment (mouse, keyboard, USB flash drive). Standard PUE 7.1 terminal communicates with 1 weighing platform, and is provided with an extended communication interface offering 2×USB, 2×RS 232, Ethernet, 4inputs/4outputs (digital), Wi-Fi®
It is possible to expand the PUE 7.1 terminal with 1 extra platform, this is done by installation of an additional platform module, DP-6.
Caution: in case of a terminal supporting 2 weighing platforms, only cable version is available (/R version does not exist).
Datasheet
|
Model |
PUE 7.1 |
PUE 7.1P |
|
Metrological parameters |
||
|
OIML Class |
III |
- |
|
Maximum quantity of verification units |
6000 e |
- |
|
Minimum volatge per verification unit |
0.4 µV |
- |
|
Maximum voltage per verification unit |
3.25 µV |
- |
|
Minimum load cell impedance |
50 Ω |
- |
|
Maximum load cell impedance |
1200 Ω |
- |
|
Load cell excitation voltage |
5V DC |
- |
|
Maximum increase of signa |
19.5 mV |
- |
|
Physical parameters |
||
|
Display |
5.7” Resistiv-Farb-Touchscreen |
|
|
Device dimensions |
206×140×71 mm |
215×156×120 mm |
|
Packaging dimensions |
300×250×130 mm |
300×250×130 mm |
|
Net weight |
0.6 kg |
0.8 kg |
|
Gross weight |
1.2 kg |
2.75 kg |
|
Construction |
||
|
Protection class |
IP 43 |
front IP 66/67, construction IP 32 |
|
Keypad |
touch screen |
touch screen |
|
Housing |
ABS plastic |
Stainless steel |
|
Components and software |
||
|
Database capacity |
16 GB (micro SD) |
- |
|
Operating system |
Linux |
- |
|
Processor |
quad-core 64-bit Cortex-A53 1.2 GHz |
- |
|
Memory |
RAM 1GB LPDDR2 |
- |
|
Data memory |
16 GB (micro SD) |
- |
|
Communication interface |
||
|
Communication interface |
2×RS232, 2×USB-A, Ethernet, 4 IN / 4 OUT (digital), Wi-Fi® |
|
|
Additional DP6 A/C converter module |
1 (option) |
1 (option) |
|
Metrological parameters |
||
|
Minimum load cell impedance |
- |
50 Ω |
|
Maximum load cell impedance |
- |
1200 Ω |
|
Load cell excitation voltage |
- |
5V DC |
|
Maximum increase of signal |
- |
19.5 mV |
|
Electrical parameters |
||
|
Power consumption max. |
max. 1 A |
- |
|
Environmental conditions |
||
|
Operating temperature |
-10 — +40 °C |
|
|
Relative humidity |
10% — 85% RH no condensation |
|
|
Number of buttons |
8 |
8 |
|
Components and software |
||
|
Operating system |
- |
Linux |
|
Processor |
- |
quad-core 64-bit Cortex-A53 1.2 GHz |
|
Memory |
- |
RAM 1GB LPDDR2 |
|
Data memory |
- |
16 GB (micro SD) |
|
Features of use |
||
|
Max number of platforms |
2 |
2 |
*The power supply can be connected to the socket on the back of the balance housing or to the terminal.
