RADWAG PS.X7, PS.X7.M Precision Balances
SKU: WL-226-0011
RADWAG PS.X7, PS.X7.M Precision Balances
Buy RADWAG products from MSE Supplies at the best value.
|
SKU # |
WL-226-0011 | WL-226-0012 | WL-226-0014 | WL-226-0015 | WL-226-0016 | WL-226-0010 | WL-226-0013 |
|
Model # |
PS 200/2000.X7 |
PS 210.X7 |
PS 360.X7 |
PS 600.X7 |
PS 750.X7 |
PS 1000.X7 |
PS 3000.X7 |
|
Maximum Capacity (g) |
200/2000 |
210 |
360 |
600 |
750 |
1000 |
3000 |
|
Readability (mg) |
1/10 |
1 |
1 |
1 |
1 |
1 |
1 |
|
SKU # |
WL-226-0003 | WL-226-0004 | WL-226-0005 | WL-226-0007 | WL-226-0008 | WL-226-0001 |
|
Model # |
PS 2100.X7.M |
PS 3500.X7.M |
PS 4500.X7.M |
PS 6100.X7.M |
PS 8100.X7.M |
PS 10100.X7.M |
|
Maximum Capacity (g) |
2100 |
3500 |
4500 |
6100 |
8100 |
10100 |
|
Readability (mg) |
10 |
10 |
10 |
10 |
10 |
10 |
Weighing module
MONOBLOCK technology enables weighing loads with the readability of d=0.01 g at the maximum capacity of 10 kg. Rigid base ensures stability of the weighing system and great resistance to shocks.
Internal adjustment system means precision and high measurement repeatability. Leverage of internal weight mass enables adjustment within the whole measuring range.
Features
- d=0.01 g readability at 10 kg max capacity
- great resistance to ambient conditions
- stability and repeatability over time
- MONOBLOCK technology
- internal adjustment within the whole measuring range
- complex databases and ALIBI memory

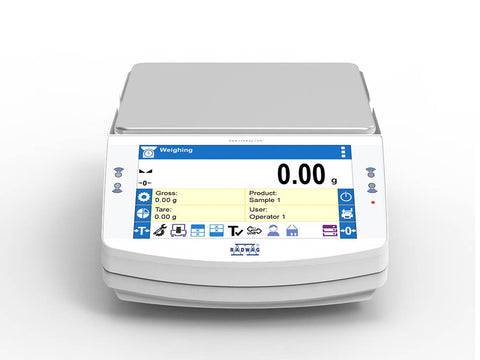

- ergonomic 7” colour touchscreen
- touch-free operation
Databases
In PS X7.M Precision Balances the information system is based on 9 databases which allow several users to work with database storing several products. The registered weighing results can be subject to further analysis.
The data is registered in 9 databases:
- Products (5 000 products)
- Users (100 users)
- Packaging (100 packaging types)
- Customers (1 000 customers)
- Formulations (100 formulations)
- Formulations reports (500 reports)
- Ambient Conditions (10 000 records)
- Weighings (50 000 records)
- ALIBI memory (512 000 records).
ALIBI memory
PS X7.M Precision Balances feature ALIBI memory, which guarantees safety as it automatically records measurements, and allows data prereview, copying and archiving. The ALIBI memory allows to record up to 512,000 weighment records.
New Possibilities

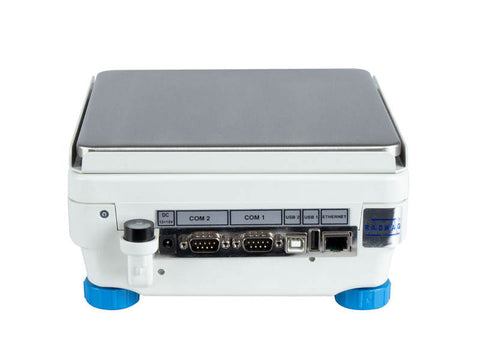

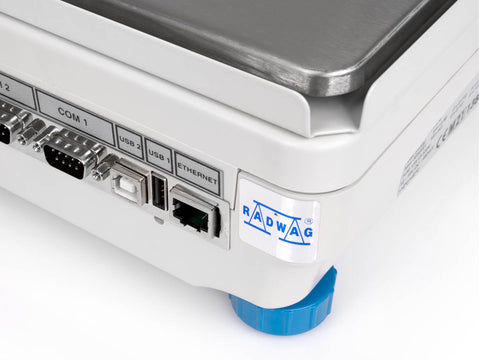

PS X7.M Precision Balances enable user to design the layout of the information on the display through a wide selection of widgets. Personalizing the PS X7.M balance display gives access to information and operating results directly from the main display panel. PS X7.M Precision Balances are equipped with multiple communication interfaces: 2 x RS232, USB-A, USB-B, Ethernet and Wi-Fi. The balances housing is made of plastic, and the pan is made of stainless steel.
USB allows for fast transfer and copying of work results (measurements, reports, databases) to a computer or other weighing device. The balance provides possibility of remote data management.
THBR 2.0 System
The balances work with THBR 2.0 System for ambient conditions monitoring.
Datasheet
| Model No. | PS 200/2000.X7 | PS 210.X7 | PS 360.X7 | PS 600.X7 | PS 750.X7 | PS 1000.X7 | PS 3000.X7 |
| Metrological parameters | |||||||
| Maximum capacity [Max] | 200/2000 g | 210 g | 360 g | 600 g | 750 g | 1000 g | 3000 g |
| Minimum load | 20 mg | 20 mg | 20 mg | 20 mg | 20 mg | 20 mg | - |
| Readability [d] | 1/10 mg | 1 mg | 1 mg | 1 mg | 1 mg | 1 mg | 1 mg |
| Verification unit [e] | 10 / 100 mg | 10 mg | 10 mg | 10 mg | 10 mg | 10 mg | - |
| Tare range | -2000 g | -210 g | -360 kg | -600 kg | -750 kg | -1000 kg | -3000 g |
| Standard repeatability [5% Max] | 0.5/5 mg | 0.5 mg | 0.5 mg | 0.5 mg | 0.5 mg | 0.5 mg | 0.6 mg |
| Standard repeatability [Max] | 1/10 mg | 1 mg | 1 mg | 1.5 mg | 1.5 mg | 1.5 mg | 1.5 mg |
| Standard minimum weight (USP) | 1 g | 1 g | 1 g | 1 g | 1 g | 1 g | 1.2 g |
| Standard minimum weight (U=1%, k=2) | 0.1 g | 0.1 g | 0.1 g | 0.1 g | 0.1 g | 0.1 g | 0.12 g |
| Linearity | ±2/20 mg | ±2 mg | ±2 mg | ±3 mg | ±3 mg | ±3 mg | ±6 mg |
| Stabilization time | 2/1.5 s | 2 s | 2 s | 2 s | 2 s | 2 s | 3 s |
| Adjustment | internal (automatic) | ||||||
| OIML Class | II | - | |||||
| Physical parameters | |||||||
| Leveling system | manual | ||||||
| Display | 7″ graphic colour touchscreen | ||||||
| Delivery components | Balance, weighing pan, weighing pan shield, grounding bumper ×1, bumper ×3, power supply. | ||||||
| Weighing pan dimensions | 128×128 mm | ||||||
| Packaging dimensions | 545×455×575 mm | ||||||
| Net weight | 3.9 kg | 3.54 kg | 3.99 kg | 3.99 kg | 3.9 kg | 4.01 kg | 3.9 kg |
| Gross weight | 8.5 kg | 5 kg | 5 kg | 5.5 kg | 5 kg | 5 kg | 5.5 kg |
| Construction | |||||||
| Protection class | IP 43 | ||||||
| Components and software | |||||||
| Database capacity | Products, Users, Packaging, Customers, Formulations, Formulations reports, Ambient Conditions, Weighings, Alibi memory | ||||||
| Features of use | |||||||
| Touch-free operation | 2 IR Sensors | ||||||
| Communication interface | |||||||
| Communication interface | 2×RS232¹, USB-A, USB-B, Ethernet, Wi-Fi® | ||||||
| Electrical parameters | |||||||
| Power supply | Adapter: 100 – 240V AC 50/60Hz 0.6A; 12V DC 1.2A | ||||||
| Balance: 12 – 15V DC 0.8A max | |||||||
| Power consumption | 4 W | ||||||
| Environmental conditions | |||||||
| Operating temperature | +10 – +40 °C | ||||||
| Ambient conditions monitoring (option) | THBR 2.0 System, THBR BOX, THB P, THB W, THB S | ||||||
| Relative humidity | 40% — 80% | ||||||
| Model No. | PS 2100.X7.M | PS 3500.X7.M | PS 4500.X7.M | PS 6100.X7.M | PS 8100.X7.M | PS 10100.X7.M |
| Metrological parameters | ||||||
| Maximum capacity [Max] | 2100 g | 3500 g | 4500 g | 6100 g | 8100 g | 10100 g |
| Minimum load | 500 mg | 500 mg | 500 mg | 500 mg | 500 mg | - |
| Readability [d] | 10 mg | 10 mg | 10 mg | 10 mg | 10 mg | 10 mg |
| Verification unit [e] | 100 mg | 100 mg | 100 mg | 100 mg | 100 mg | - |
| Tare range | -2100 g | -3500 g | -4500 kg | -6100 kg | -8100 kg | -10100 kg |
| Standard repeatability [5% Max] | 5 mg | 5 mg | 5 mg | 5 mg | 5 mg | 5 mg |
| Standard repeatability [Max] | 8 mg | 8 mg | 8 mg | 8 mg | 10 mg | 12 mg |
| Standard minimum weight (USP) | 10 g | 10 g | 10 g | 10 g | 10 g | 10 g |
| Standard minimum weight (U=1%, k=2) | 1 g | 1 g | 1 g | 1 g | 1 g | 1 g |
| Linearity | ±20 mg | ±20 mg | ±20 mg | ±20 mg | ±20 mg | ±20 mg |
| Stabilization time | 1.5 s | 1.5 s | 1.5 s | 1.5 s | 1.5 s | 1.5 s |
| Adjustment | internal (automatic) | |||||
| OIML Class | II | - | ||||
| Physical parameters | ||||||
| Leveling system | manual | |||||
| Display | 7″ graphic colour touchscreen | |||||
| Delivery components | Balance, weighing pan, weighing pan shield, power supply | |||||
| Weighing pan dimensions | 195×195 mm | |||||
| Device dimensions | - | - | 333x206x107 mm | 333x206x107 mm | 333x206x107 mm | 333x206x107 mm |
| Packaging dimensions | 476×381×346 mm | |||||
| Net weight | 4.3 kg | 4.5 kg | 4.5 kg | 5.7 kg | 5.7 kg | 5.7 kg |
| Gross weight | 5.5 kg | 5.5 kg | 6 kg | 6.5 kg | 6.5 kg | 6.5 kg |
| Construction | ||||||
| Protection class | IP 43 | |||||
| Components and software | ||||||
| Database capacity | Products, Users, Packaging, Customers, Formulations, Formulations reports, Ambient Conditions, Weighings, Alibi memory | |||||
| Features of use | ||||||
| Touch-free operation | 2 IR Sensors | |||||
| Communication interface | ||||||
| Communication interface | 2×RS232¹, USB-A, USB-B, Ethernet, Wi-Fi® | |||||
| Electrical parameters | ||||||
| Power supply | Adapter: 100 – 240V AC 50/60Hz 0.6A; 12V DC 1.2A | |||||
| Balance: 12 – 15V DC 0.8A max | ||||||
| Power consumption | 4 W | |||||
| Environmental conditions | ||||||
| Operating temperature | +10 — +40 °C | |||||
| Ambient conditions monitoring (option) | THBR 2.0 System, THBR BOX, THB P, THB W, THB S | |||||
| Storage temperature | - | - | -20 – +50 °C | -20 – +50 °C | - | -20 – +50 °C |
| Relative humidity | 40% — 80% | |||||
*The power supply can be connected to the socket on the back of the balance housing or to the terminal.
