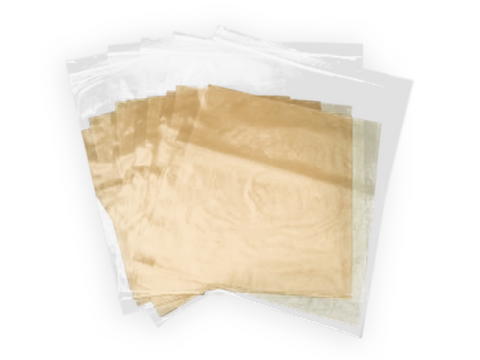

PurionX-121 High Performance Anion Exchange Membranes (AEMs), 8'' x 8''
SKU: ME0502
PurionX-121 High Performance Anion Exchange Membranes (AEMs), 8'' x 8''
Applications:
This anion exchange membrane (AEM) is a substrate reinforcement membrane with dry thickness of ~40 µm, excellent ionic conductivity, very high electrochemical stability in alkaline and oxidation environments, and mechanical stability. It can be widely used in various fields including AEM Electrolyzer, AEM fuel cell, Electrodialysis, Water Treatment and others.
Note: Keep membrane package closed/sealed when unused. Store, handle and process the membrane in a clean, dust-free environment.
Size: 8'' x 8'' (20 x 20 cm)
Pack Size: 1 pc/pack
Image for reference only
Specifications:
| Membrane Type | Anion Exchange Membrane |
| Appearance | Clear, Semi-Transparent |
| Counter Ion | Chloride (Cl-) |
| Thickness (dry) | 40 um |
| OH- Conductivity at 23.0 °C | 50-54 mS/cm |
| Weight per Unit Area | 4.5-4.8 mg/cm2 |
| Ion Exchange Capacity | 2.2-2.5 meq/g |
| Tensile Strength at 23.0 °C, 50% RH | 50-100 MPa |
| Young's Modulus at 23.0 °C, 50% RH | 1300-1800 MPa |
| Elongation at Break at 23.0 °C, 50% RH | 30-50 % |
| Dimensional Swelling in H2O at 23.0 °C | < 15 % |
| Water Uptake at 23.0 °C | 55-65 % |
| Alkaline Stability in 1 M KOH at 80 °C | >12,000 hours |
| Oxidation Stability in Fenton's test at 80 °C | >20 hours |
