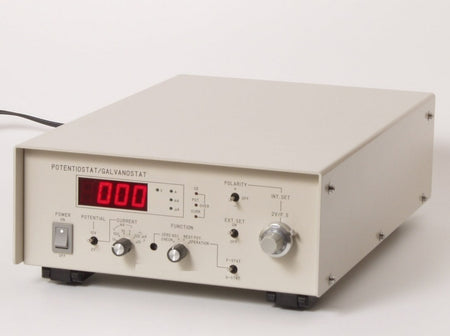

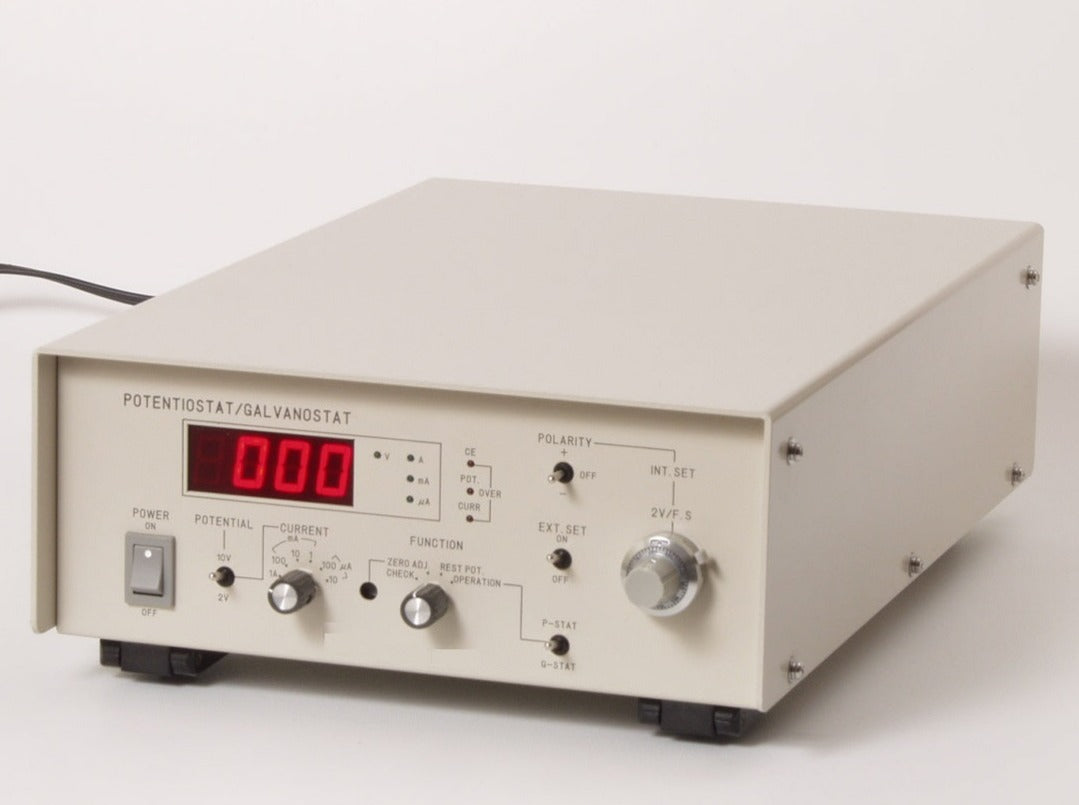

Portable Type Lab Potentiostat, Galvanostat for Electrochemical Measurement
MSE Supplies offers a compact standing-alone electrolyzing unit, integrating a potentiostat and a galvanostat which are indispensable for electrochemical measurement.
The potentiostat /galvanostat part, has sufficient functions for normal electrolytic testing and corrosion testing. This part is equipped with three major functions: high-input-impedance electrometer, potentiostat (constant-voltage control) and galvanostat(constant-current control).
The potentiostat/galvanostat part is provided also with alarm functions for uncontrollableness, excess voltage and excess current as well as additional convenient functions, including external control input and current-monitor noise refection filter.
Made in Japan.
Specifications:
| Potentiostat | |
| Maximum output | ±15V, ±1A |
| Current detection ranges | 6 ranges of ±1A, ±100mA, ±10mA, ±1mA, ±100uA, ±10uA |
| Maximum control voltage | ±10V |
| Control tolerance | ±3mV |
| Response speed | 50usec and less |
| Input resistance | 1010Ω and more |
| Galvanostat | |
| Maximum output | ±1A, ±15V |
| Set current ranges | 6 ranges of ±1A, ±100mA, ±10mA, ±1mA, ±100uA, ±10uA |
| Current set-up accuracy | No more than 1% of the set current range full scale |
| Response speed | 50usec and less |
| Electrometer | |
| Input resistance | 1010Ω and more |
| Bias current | 10-10Ω and more |
| Response speed | 10usec and less |
| Conversion error | No more than 0.1% of the input voltage |
| Voltage display ranges | 2 ranges of ±10V and ±2V (digital display) |
| Recording portion | |
| Voltage record output | 1:1 |
| Current record output | Full scale of each current range is converted into 1V |
| General | |
| Current consumption |
20VA at standby 100VA under maximum load |
| External dimensions | W215×D200×H100mm |
| Power supply | 115V AC, 50/60Hz |
| Weight | 7.7kg |
