Photo-Electrochemical Single-Sided Cell Setup

Photo-Electrochemical Single-Sided Cell Setup

Buy Redox.me products from MSE Supplies at the best value.

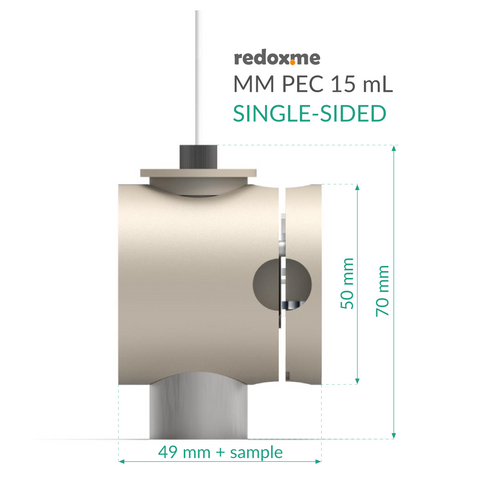

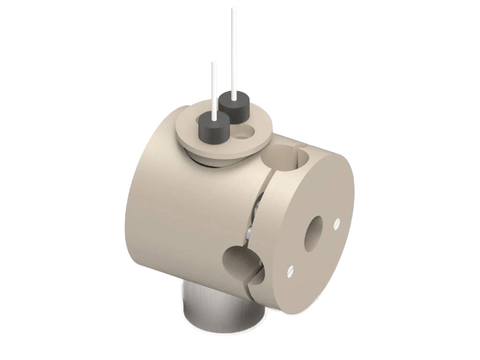

This is a horizontally mounted, single compartment photo-electrochemical cell. This cell allows several approaches to perform measurements in 2- or 3-electrode setups. It is designed to investigate performance of a thin film photo-anode (e.g. nanocrystalline material or conducting polymer) deposited on a rigid or flexible transparent substrate (typically fused quartz glass). The cathode (counter electrode) and reference electrode are mounted in a top casing. The cell elements are made of PEEK. It well fits aqueous (FKM/EPDM O-Rings) and organic solvent (FFKM O-Rings) electrolyte requirements. The construction is gas-tight having gas inlet and outlet, which can be used to bubble the solution and evacuate gases from the chamber.

Application note:

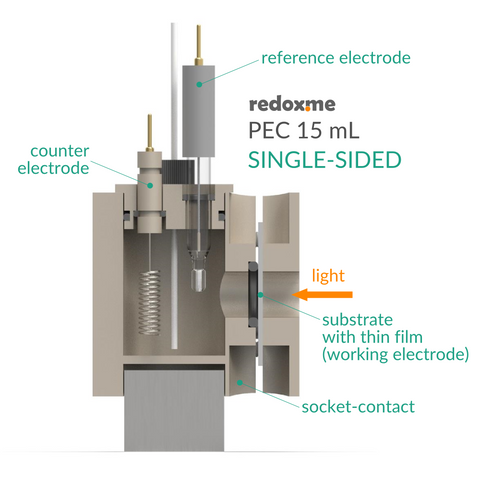

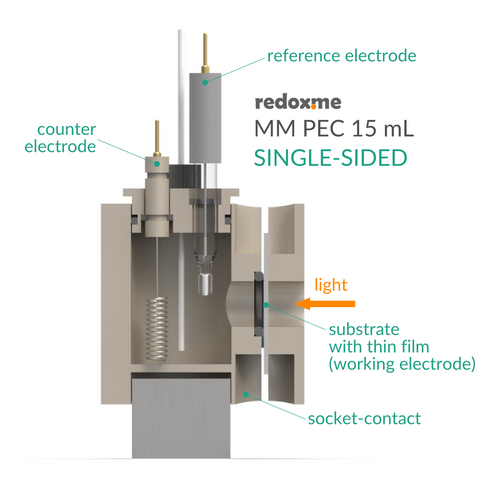

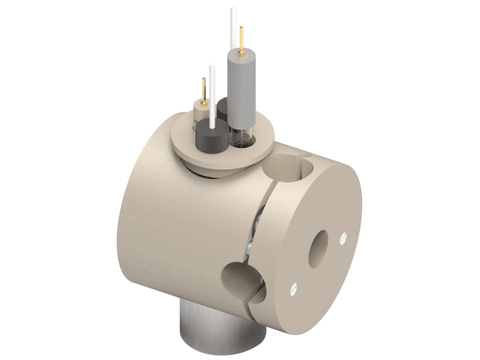

A thin film of interest deposited on a transparent glass or plastic foil is installed in the magnetic mount / screw mount facing the cell chamber. In 2-electrode setup, the counter electrode is placed in the socket close to the working electrode while the remaining socket is plugged. When 3-electrode setup is required, the reference electrode is placed close to the measured sample to limit the effect of electrolyte resistance, while the counter electrode occupies the remaining socket. Various auxiliary electrodes are suitable for this cell including metal wire, gauze and foil electrodes as well as non-metal electrodes. Typical applications include: basic photochemistry, photolytic water splitting, photoinduced charge separation and photocorrosion.

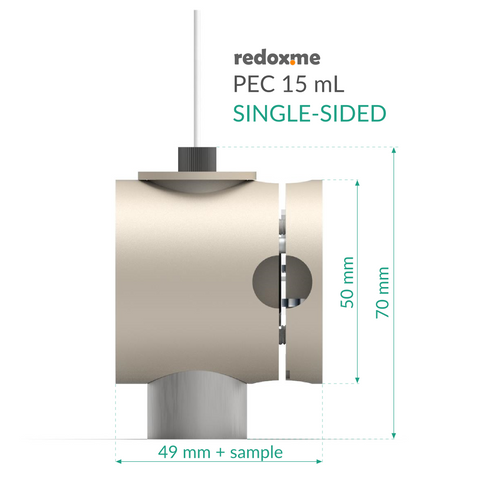

Specification: (Magnetic Mount)

Nominal exposure area: 1 cm²
Minimum electrolyte volume: 10 mL
Maximum electrolyte volume: 15 mL
Electrode plug diameter: 6 mm
Recommended substrate size: 25 mm x 25 mm
Maximum substrate thickness: 3 mm

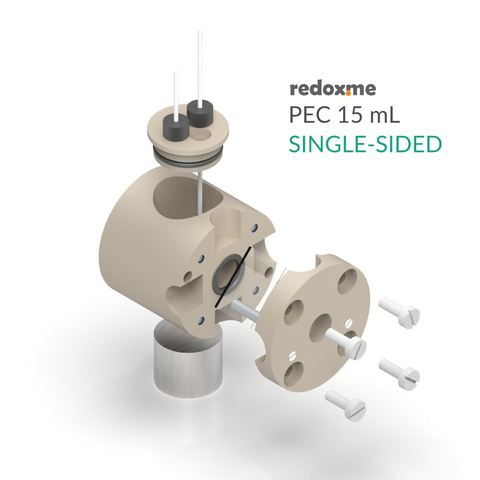

Specification: (Screw Mount)

Nominal exposure area: 1 cm² or 4.155 cm²
Minimum electrolyte volume: 10 mL
Maximum electrolyte volume: 15 mL
Electrode plug diameter: 6 mm
Recommended substrate size: 25 mm x 25 mm
Maximum substrate thickness: 3 mm

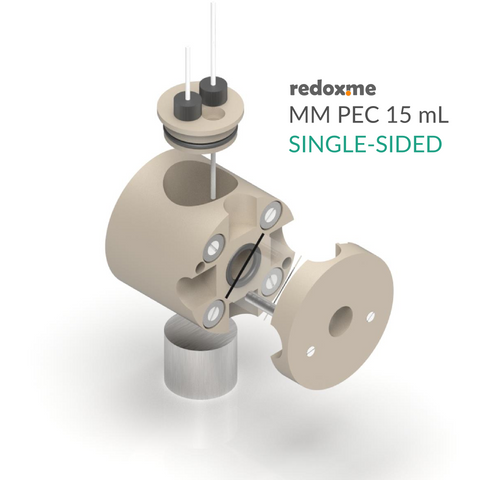

Product Includes (Magnetic Mount)

1 x lid – 0001CPEMA
1 x chamber - 0034CPEMAMM
1 x sample mount – 0004CPEMAMM
1 x pillar – 0031PSSMA
1 x plug

Product Includes (Screw Mount)

1 x lid
1 x chamber
1 x sample mount
1 x tripod
1 x set of screws
1 x plug

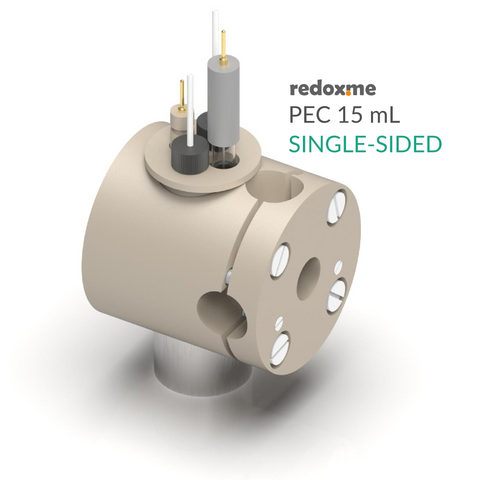

Setup Includes:

m Pec 15 ml Single-Sided - Magnetic Mount Photo-Electrochemical Cell 15 ml  Single-Sided, Photo-Electrochemical Cell 15 ml Single-Sided
Metal Wire Auxiliary Electrode - 50Hx15 0.6/250 mm, Platinum (99,9%), 1 mm Dia. Gold Plated Pin
Silver / Silver Chloride Reference Electrode - Ag/Agcl 30 mm, Non-Aqueous Silver - Ag/Ag+ 30 mm
