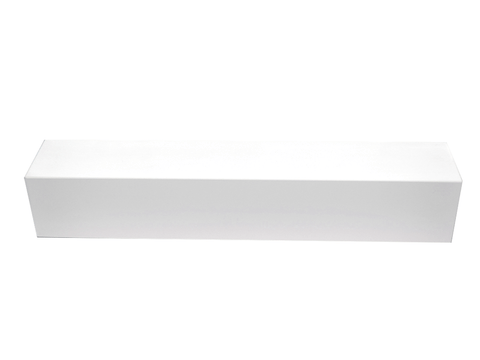

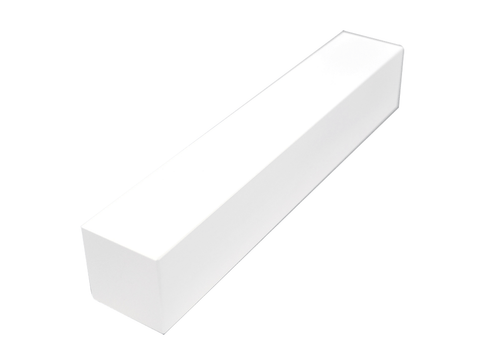

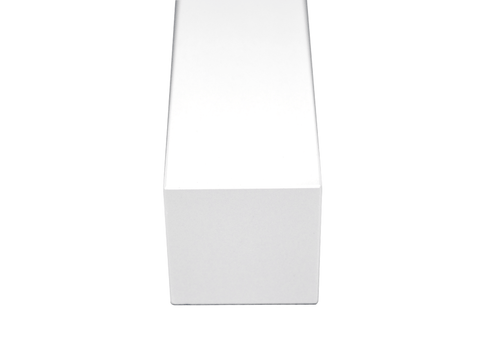

Lead-Tungstate Crystals PbWO4

To better serve you, we would like to discuss your specific requirement, Please Contact Us for a quote.

Product Description for Lead-Tungstate Crystals

Lead Tungstate (PbWO4) crystal is a scintillator which has been used as the detector material in several high energy physics devices, such as the CMS detector at CERN (European Organization for Nuclear Research). The crystal is distinguished by its fast decay time, high density and strong radiation hardness. So it may have an prominent application potential in medical devices. Because of its excellent optical properties and stable physical and chemical properties,it is popularly used as a photoelectric crystal in various photonics applications.

We can customize PbWOcrystals according to your application requirement, please contact us for details on our lead tungstate for sale.

Physical Properties

Density (g.cm-3)

8.28

Radiation length (cm)

0.92

Decay constant (ns)

6/30

Emission peak (nm)

440/530

Light yield (% that of NaI:Tl)

0.5

Melting point (°C)

1123

refractive Index

2.16

Hygroscopicity

none

Cleavage

101
