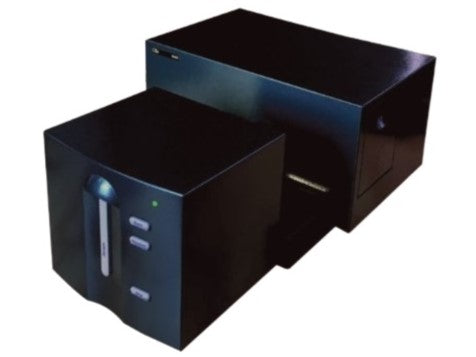

OLIS 8453 UV/Vis Spectrophotometer Package
SKU: OLIS-8453-Package
OLIS 8453 UV/Vis Spectrophotometer Package
The OLIS 8453 UV/Vis Spectrophotometer allows for excellent optical performance. The package also includes the OlisWorks Win 10 software, which allows for fast and efficient measurements (190-1100 nm with 1 nm resolution) that captures, displays, and analyzes 2D and 3D results.
The original manufacturer ended support for these solid-state UV/Vis instruments long ago. OLIS provides three choices: computerize yours, refurbish yours, or buy from us. The second two choices are warrantied exactly like new OLIS products.
Add OLIS and third-party accessories for temperature control, chemical denaturation, and more.
Save yourself thousands of dollars and minimize your carbon footprint with an OLIS computerized HP 8453 UV/Vis. You will (again) have a proud stopping point on the tour of your lab.
Reliable. Simple. Successful!
Features
- Package includes Spectrophotometer, PC, OLISWorks Software, and the required LAN Interface card
- Option of Windows 10 or Windows 11 on PC
- Adds 3D graphics to data collection and processing
- Adds 3D data fits for time-dependent spectra
- Software is more user friendly than the original ChemStation software
- Improved presentation and handling features
Accessories

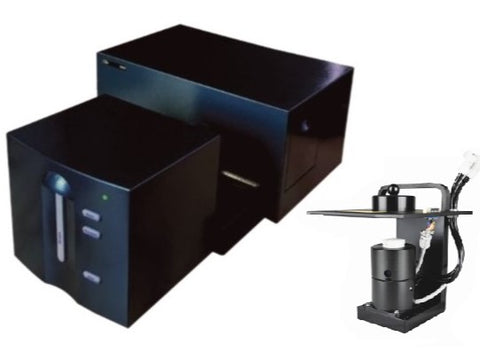

- Peltier Cell Holders
- Automatic Titrator
- Stopped Flow
UV/Vis Specifications
| Wavelength Range | 190 - 1100 nm |
| Slit Width | 1 nm |
| Stray Light | <0.03 % at 340 nm (NaNO,, ASTM) <0.05 % at 220 nm (Nal, ASTM) <1 % at 198 nm (KCI, EP) |
| Wavelength Accuracy | <± 0.5 nm, 0.5 = second scan (NIST 2031) <± 0.2 nm at 486.0 and 656.1 nm |
| Wavelength Reproducibility | <± 0.02 nm, ten consecutive scans (NIST 2034) |
| Photometric Accuracy | <± 0.005 nm at 440.0, 465.0, 546.1, 590.0 and 635.0 nm, 1 A (NIST 930e) <± 0.01 nm at 235, 257, 313, 350, 430 nm (potassium dichromate, EP method) |
| Photometric Noise | <0.0002 A. sixty 0.5 second scans at 0 A, 500 nm, rms |
| Photometric Stability | <0.001 A/hr at 0 A, 340 nm, after 1-hour warm up, measured over 1 hour, every 5 seconds, constant ambient temp |
| Baseline Flatness | <0.001 A, 0.5-second blank, 0.5-second scan, rms |
| Typical Scan Time | 0.5 seconds, full range |
| Shortest Scan Time | 0.1 seconds, full range |
| Time Until Next Scan | 0.6 seconds, full range, 0.1-second scan, up to 150 consecutive scans |
| Dimensions (LxWxH) | 56 x 34.4 x 18.5 cm |
Applications:
The Agilent 8453 is a UV-visible (190 to 1100 nm) spectrophotometer that uses diode-array technology for fast spectral scanning and complete spectral information, covering a wavelength range from 190 to 1100 nm.
This software upgrade will enhance your experience with using the spectrophotometer!
