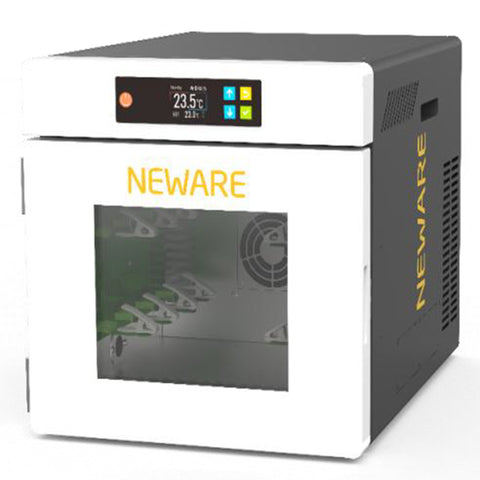

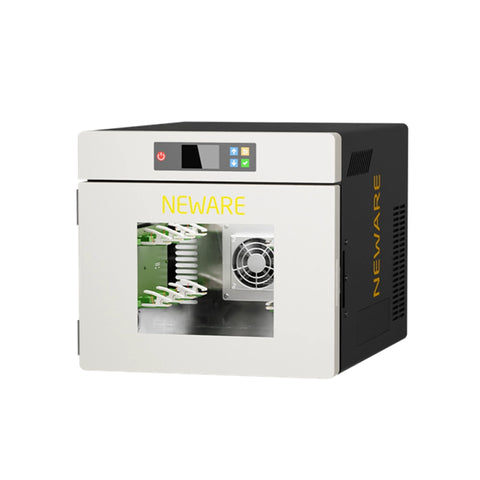

Neware Environmental Test Chamber Mini All-in-one Testing System
SKU: BR0566
Neware Environmental Test Chamber Mini All-in-one Testing System
The BR0566 integrates charge-discharge and temperature testing into a single system. It is equipped with advanced processors and powerful computing capabilities, enabling efficient handling of large-scale data and complex computational tasks.
Features:
- Ultimate control within your fingertips: personalized temperature regulation.
- Steady-state data acquisition. Embracing the energy of precision. The BR0566 is equipped with advanced processors and powerful computing capabilities, enabling efficient processing of large-scale data and complex computing tasks. It delivers exceptional performance, catering to various high-performance computing needs, including scientific research, data analysis, artificial intelligence, and deep learning applications.
- Mastering multiplicity: Simplifying the intricate. Combining the functionalities of compatible charge-discharge detection equipment and environmental test chambers into one cleverly designed solution, our product maximizes space utilization and enhances equipment efficiency.
- Neatly organized: 16 Testing Channels. Introducing our high-quality insulated battery core tray, meticulously designed to meet the demands of battery testing and production processes. With its exceptional capacity, it can securely hold up to 16 coin cells, providing a reliable and efficient solution for organizing and managing batteries.
- Support for personalized design: coin cell three-electrode system. The equipment can be equipped with a special three-electrode test device for coin cells to more accurately measure the battery performance and provide a comprehensive evaluation of its charge/discharge characteristics. It collects and records key data in real-time, including battery charge/discharge capacity, cycling stability, and charge/discharge efficiency, ensuring the accuracy and reliability of test results.
- Users can customize test parameters and steps according to their needs using the accompanying battery performance testing software (BTS), making it flexible to adapt to the testing requirements of different types of button batteries. This device exhibits outstanding flexibility and scalability, making it an ideal tool for battery research, production, and quality control.
- Powerful heat dissipation for optimal stability. According to the set temperature value, the control system automatically calculates and controls the output of the semiconductor refrigeration (heating) module using the newly developed fuzzy PID algorithm by New Wei, in order to achieve dynamic balance.
- Compact in size, big on functionality. A compact size is more suitable for small-scale development and experimentation, with a practical volume of 25 liters and occupying less than half a square meter of space. It frees up more desktop space and allows for easy observation of the experimental conditions inside the enclosure.
- Refined temperature control for long-lasting insulation. 40mm thick polyurethane foam for enhanced internal temperature protection, ensuring more accurate and reliable data.
- Intuitive interface, effortless operation. BR0566 prioritizes user experience and incorporates a touch LCD screen design with a user-friendly graphical interface and flexible configuration options. It features automatic screen wake-up through infrared human body sensing within a 1.5-meter range, allowing users to easily set up and manage the device.
- Perpetual dedication to safety protection.
- Power-Down Data Protection
- Short Circuit protection
- Abnormal Monitoring of Circulating Fan Operation
- Powerful programmability. Meet diverse testing needs.
The software is fully functional, covering a variety of work-step settings, recording, and data storage to meet a wide range of testing needs. - Extensive peripheral devices. Create a multi-dimensional testing environment. Integrated peripheral devices such as Auxiliary Voltage, Auxiliary Temperature for comprehensive testing and evaluation, providing multi-dimensional and quantifiable support for battery mass production testing.
Technical Specifications:
| Equipment name | Mini All-in-One Testing System |
| Model | BR0566 |
| Volume, size and weight | |
| Nominal volume | 25L |
| Inner box size | W360 mm×D300 mm×H220 mm |
| External dimensions | W440 mm×D550 mm×H390 mm |
| Weight About | 45kg |
| Performance | |
| Test environment conditions | The ambient temperature is +25℃, the relative humidity is less than or equal to 85%, and there is no sample in the test chamber (no load) |
| Test method | GB/T 5170.2-2017 Temperature test equipment |
| Temperature range | 15~60℃ |
| Temperature fluctuation | ≤±0.5℃ (no load, temperature stable) |
| Temperature deviation | ±2.0℃ (no load, temperature stable) |
| Heating time | 25℃→60℃ ≤50 min (no load, average nonlinearity) |
| Cooling time | 25℃→15℃ ≤60 min (no load, average nonlinearity) |
| Structural characteristics | |
| Insulation envelope structure | Exterior wall material: high quality cold rolled steel plate, surface spray treatment Inner wall material: stainless steel plate SUS304 Box insulation material: polyurethane foam |
| Air conditioning channel | DC fan, semiconductor cooling (heating) module |
| Standard configuration of test chamber | Door: hollow tempered glass + frame Cell fixture connection plate: 2 pieces Lighting: LED lighting |
| Control panel | Touch control button |
| Air conditioning unit | Semiconductor cooling (heating) module |
| Electrical control system | |
| Controller | LED digital display + touch key controller |
| Setting method | Touch-key type |
| Control mode | The forced circulating ventilation is controlled by the control system according to the set temperature value through PID automatic calculation output results to control the output of the semiconductor cooling (heating) module, so as to achieve dynamic balance |
| Communication mode | Ethernet standard interface |
| Cell testing equipment and test interconnection | |
| Testing equipment | 5V100mA16CH(BT-4016Q-5V100mA-TK-HWX) |
| Control unit | 1 |
| Network switch | 1 |
| Power cable | |
| Power cable | (One single-phase + protective earth wire) cable (the specific specification is selected according to the contract requirements) |
| Transportation | |
| Type of shipping | The test box is integral and transported as a whole Maximum transport size (excluding packaging): "see 4.3 External dimensions" |
| Conditions of use: The user shall guarantee the following conditions (the installation of power supply lines for the equipment shall be the responsibility of the user) | |
| Installation site | Well-ventilated There is no strong vibration around the equipment There is no strong electromagnetic field around the equipment There is no flammable, explosive, corrosive substances and dust around the equipment |
| Environmental conditions | Temperature: 25℃±3℃; Relative humidity: less than or equal to 85%; Air pressure: 86kPa~106kPa |
| Power supply conditions | AC (220±10%) V /50Hz or AC (110±10%) V /60Hz single phase + protective earth wire Power supply capacity: 0.2kW Maximum current: 1A (220V) or 2A (110V) |
| Other | Opening the door of the test chamber during the test will cause temperature fluctuations in the chamber |
| Cell specifications and placement | |
| Cell specification | Coin cells (milliampere class) |
