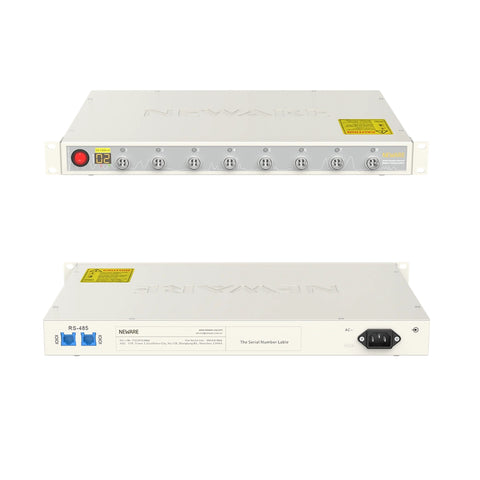

Neware CT-4008Q 5V100mA 4 Range and High Accuracy (0.02%FS) Battery Testing System
SKU: BR0239A
Product Details:
Neware CT-4000 battery testing system was launched in 2008 and is one of the most popular battery testing systems around the world. ISO9001:2015 certified, CT-4008Q Multi Range mA Battery Testing System, characterized with 0.02% FS accuracy and down to μA capability, enables users to perform DCIR tests, dQ/dV and other basic tests on three-electrode system. It has eight channels which has independent constant-current and constant-voltage source, programmed and controlled by computer software. It is widely used to test the electrochemical performance of coin cells, cylindrical cells and pouch cells in battery R&D and manufacturing labs.
Product Features:
- Four current ranges: 0.1mA, 1mA, 10mA and 100mA
- Accuracy: 0.02% FS
- Rise time: ≤1ms
- Minimum plus width: 500mS
Extra coin cell clamps can be ordered here.
About Neware
Since 1998, Neware has been committed to providing world-class testing solutions for the batteries and capacitors. Neware has provided flexible, high accuracy battery testing equipment to more than 32,000 customers worldwide ranging from battery manufacturers to R&D institutes, such as Argonne National Lab, LG Chem, Johnson Matthey, 3M, MIT, Stanford University and Princeton University. Customers are satisficed with stable, cost-effective battery testing equipment, along with the great service of Neware. ISO9001:2015 certified.
MSE Supplies is an authorized distributor of Neware in the USA. The product image is for reference only. The actual product may look different based on the product configuration.
MSE Supplies is a US-based leading supplier of battery research materials and equipment with thousands of customers worldwide.
Product Specifications:
| Neware Model | CT-4008Q-5V100mA | |
| SKU# | BR0239A (110V version) | |
| BR0239B (220V version) | ||
| BR0239AC 110V, without middle machine | ||
| BR0239BC 220V, without middle machine | ||
| Enter the power supply | AC 220V ±10% / 50Hz | |
| Interior input power | 40W | |
| Resolution ratio | AD：24bit；DA：16bit | |
| Input impedence | ≥1GΩ | |
| Voltage | Constant voltage range control | 10mV ~5V |
| Minimum discharge voltage | -5V | |
| Accuracy | ± 0.02% of FS | |
| Stability | 0.04% of FS | |
| Current | Output range per channel | Range 1: 0.2 μA~0.1 mA; Range 2: 0.1 mA ~1 mA; Range 3: 1 mA ~ 10 mA; Range 4: 10 mA ~ 100 mA |
| Accuracy | ± 0.02% of FS | |
| Constant pressure Cut-off current | Range 1:0.1μA; Range 2:1μA; Range 3:10μA；Range 4:0.1mA | |
| Stability | 0.04% of FS | |
| Power | Single-channel maximum output power | 0.5 W |
| Stability | 0.04% of FS | |
| Time | Current response time (10% FS to 90% FS) | ≤1ms |
| Working step time range | (365 * 24) hours / work step (Supported in time format: 00:00:00:00 (h, min, s, ms) | |
| Data logging | Data recording conditions | Minimum time interval: 100ms |
| Record frequency | 10Hz | |
| Charge | Charging mode | Constant current charging, constant voltage charging, constant current constant pressure charging, constant power charging |
| Cut-off condition | Voltage, current, relative time, capacity, -△V | |
| Discharge | Discharge mode | Constant current discharge, constant voltage discharge, constant current constant voltage discharge, constant power discharge, constant resistance discharge |
| Cut-off condition | Voltage, current, relative time, and capacity | |
| Pulse mode | Charge | Constant current mode, constant power mode |
| Discharge | Constant current mode, constant power mode | |
| Minimum pulse width | 500ms | |
| Pulse number | A single pulse working step was supported for 32 different pulses | |
| Continuous charge / discharge charge switching | A pulse step can realize charging continuous switching, or discharge continuous switching; (charge-to-charge switching is not supported) | |
| Cut-off condition | Voltage, and relative time | |
| DCIR test | Support for custom taking points for the calculation of DCIR | |
| Recurrence | Circulating test range | 1 to 65,535 times |
| Single cycle step number | 254 | |
| Loop nesting | With a nesting cycle function, up to 10 layers of nesting support | |
| Protect | Power loss data protection | |
| It has the offline test function | ||
| Safety protection conditions can be set, setting parameters include: voltage limit, voltage limit, current limit, current limit, capacity limit, delay time | ||
| IP levels of protection | Protection level is IP20 | |
| Channel characteristics | The constant current source and the constant voltage source adopt a double closed-loop structure | |
| Channel control mode | Independent control | |
| Voltage and current detection and sampling | Four-line connection | |
| Noise | <45dB | |
| Data base | The MySQL database was used to centralize the test data | |
| Upper-computer communication mode | Based on the TCP / IP protocol | |
| Server operating system | Windows 7 / Windows 10 and above systems | |
| Data output mode | EXCEL2003，2010、TXT | |
| Server disk configuration | 500GB | |
| CI | Internet access | |
| Leakage current | 0.005μA | |
| Number of machine channels | 8 | |
| Specification link | Neware CT-4008T 5V100mA | |
