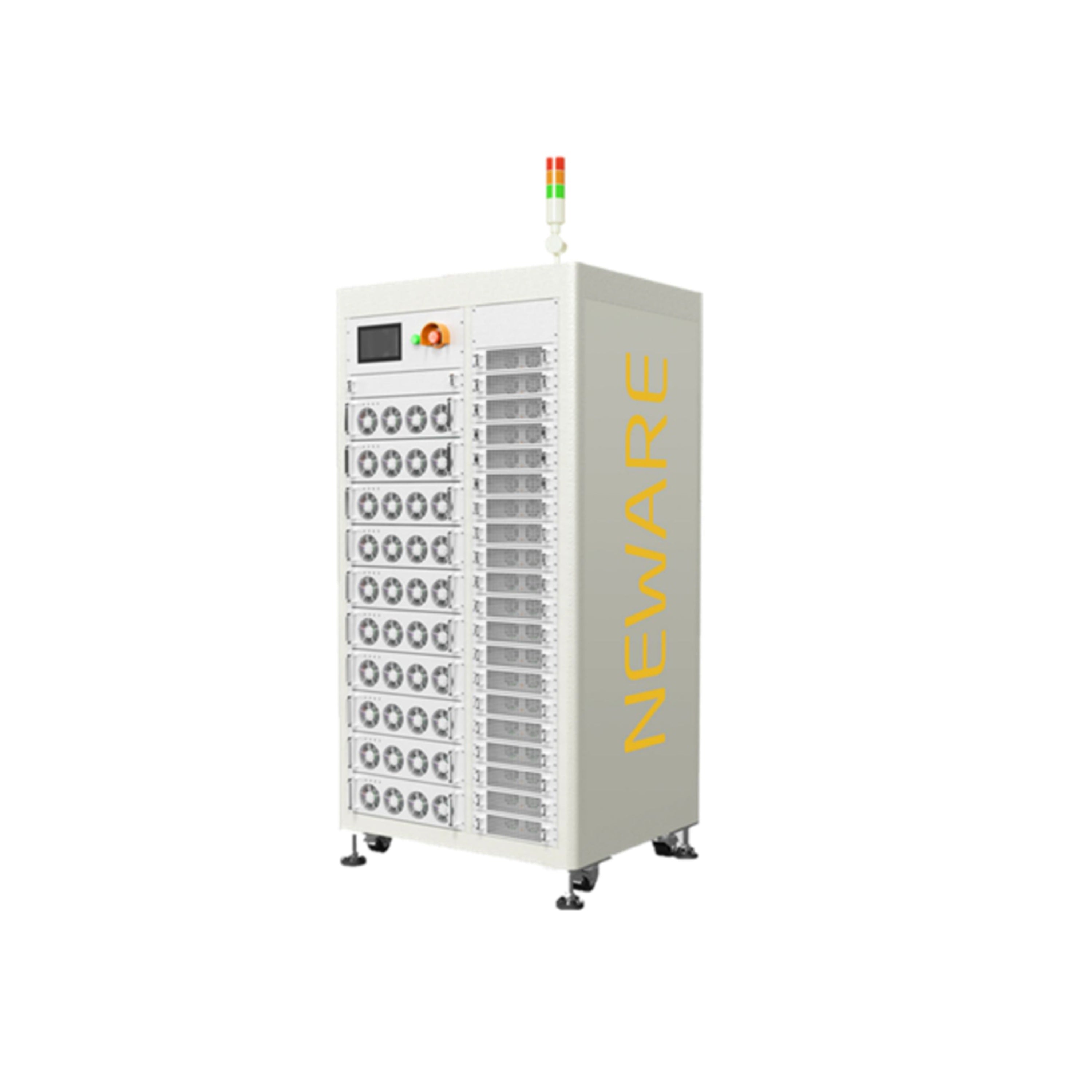

Neware CE-6002n-200V200A-H, 200V200A battery module testing equipment, 2 channels
Introduction
The Neware CE-6002n-200V200A-H, 200V200A Battery Module Testing Equipment, 2 Channels is a high-power battery module testing system designed for charge/discharge cycling, simulation testing, pulse testing, and DCIR analysis. With 2 independent channels, up to 200V / 200A per channel, and support for up to 4-channel parallel mode, it is suitable for battery module research, performance validation, and demanding high-voltage, high-current testing applications.
Built with constant-current and constant-voltage dual closed-loop control, four-wire sampling, TCP/IP communication, and MySQL-based data management, this system provides accurate control, stable operation, and flexible integration for laboratory and production environments. Optional auxiliary channels also support temperature and voltage monitoring during testing.
Key Features
- 2 independent testing channels
- Up to 200V / 200A per channel
- Supports max. 4-channel parallel mode
- Voltage accuracy of ±0.02% FS
- Current accuracy of ±0.05% FS
- Single-channel output power up to 40 kW
- Whole-machine output power up to 160 kW
- Four-wire connection for accurate voltage and current sampling
- Supports charge/discharge, simulation, pulse, and DCIR testing
- Minimum pulse time of 100 ms
- Recording frequency up to 100 Hz
- TCP/IP communication and MySQL database support
- Supports barcode scanning and historical data traceability
- Optional CAN, RS485, and BMS communication
- Supports optional temperature and voltage auxiliary channels
Specifications
Datasheet
| Parameter | Specification |
|---|---|
| Model | CE-6002n-200V200A-H |
| Channels Quantity in One Unit | 2 |
| Channel Feature | Constant current source and constant voltage source dual closed loop control |
| Channel Control Mode | Independent control |
| Channel Parallel Connection | Supports max. 4-channel parallel mode; pulse and SIM tests disabled in parallel mode |
| Input Power | AC380V. 60Hz |
| Power Factor | ≥99% (full load) |
| THDi | ≤5% (full load) |
| Input Resistance | ≥1 MΩ |
| Input Power Consumption | 188.2 kW |
| Input Current | 286 A / single |
| Overall System Efficiency (Max) | 90% |
| Noise | ≤65 dB |
| Voltage and Current Sampling | Four-wire connection (same port for charging and discharging) |
| Power Control Module Type | MOSFET |
| Input Power Wiring Method | Three-phase-five wire system |
| Input Power Protection | Anti-surge, anti-silos, anti over/under frequency, anti over/under voltage, anti phase absence |
| Voltage Output Range | Charge: 0V–200V; Discharge: 5V–200V |
| Minimum Discharge Voltage | 5V |
| Voltage Accuracy | ±0.02% of FS |
| Voltage Resolution | 24 bit |
| Current Output Range | 1A–200A |
| Current Accuracy | ±0.05% of FS |
| CV Cut-off Current | 200 mA |
| Current Resolution | 24 bit |
| Single Channel Output Power | 40 kW |
| Whole Machine Output Power | 160 kW |
| Current Response Time | ≤3 ms |
| Current Conversion Time | ≤6 ms |
| Minimum Step Time | 0.1 s |
| Charge Modes | CCC, CVC, CC-CVC, CPC |
| Discharge Modes | CCD, CVD, CPD, CRD |
| Cut-off Conditions | Voltage, Current, ΔTime, Capacity, -ΔV |
| Simulation Charge | Current, Power |
| Simulation Discharge | Current, Power |
| Simulation Switch | Supports continuous switching between charge and discharge |
| Simulation Cut-off Condition | Time, step line |
| Steps File Lines | 1,000,000 |
| Pulse Charge | Current, Power |
| Pulse Discharge | Current, Power |
| Minimum Pulse | 100 ms |
| Pulse Counts | Up to 32 |
| Charge and Discharge Switch | Supported |
| Pulse Cut-off Condition | Voltage, ΔTime |
| DCIR | DCIR by calculation |
| Software Protection | Power-off data protection, offline mode, voltage/current limits, delay time, etc. |
| Hardware Protection | Anti-reverse connection, over-voltage, over-current, over-temperature |
| Step Setting Method | Form editing |
| Data Report Conditions | Minimum time interval: 10 ms (100 ms with AUX); minimum voltage interval: 0.4 V; minimum current interval: 0.4 A |
| Recording Frequency | 100 Hz (10 Hz with AUX channel) |
| Database | MySQL database |
| Data Output | Excel, Txt |
| Curve Type | Templates available, customization supported |
| Barcode Scanning | Supported |
| Communication Protocol | TCP/IP |
| Communication Port | Ethernet |
| Tester Communication Baud Rate | 1M |
| Host Communication Baud Rate | 10M–100M adaptive |
| Communication Setup | LAN through switches and routers |
| Communication Expansion (Optional) | CAN, RS485, BMS communication with DBC configuration |
| Operating Temperature | -10°C to 40°C |
| Storage Temperature | -20°C to 50°C |
| Operating Humidity | ≤70% RH (no moisture condensation) |
| Storage Humidity | ≤80% RH (no moisture condensation) |
| Dimensions (W × D × H) | 950 × 800 × 1950 mm |
| Weight | About 498.8 kg |
| Temperature Aux Channels (Optional) | Thermistor: -30°C to 120°C; Thermocouple: -200°C to 260°C |
| Temperature Accuracy | ±1°C (length within 2 m) |
| Temperature Resolution | 0.1°C |
| Voltage Aux Range | 0V–5V |
| Voltage Aux Accuracy | ±0.1% of FS |
| Voltage Aux Resolution | 0.1 mV |
Applications
This battery module testing equipment is suitable for:
- High-voltage battery module charge/discharge testing
- Cycle life evaluation
- Pulse and DCIR testing
- Simulation-based battery testing
- Battery surface and tab temperature monitoring with optional AUX channels
- Production and R&D environments requiring high-power module validation
Important Notes
- This battery tester does not include a middle machine. If required, the middle machine must be purchased separately. Please order it separately
- The default fixture supplied with this unit is the Ring Connector, and the default channel cable length is 2 meters. The polymer clamp is shown in the image below.
- If you require a different type of clamp, please contact MSE Supplies directly.
MSE Supplies is an authorized distributor of Neware in the USA. The product figure is for reference only. The actual product may look different based on the product configuration.
