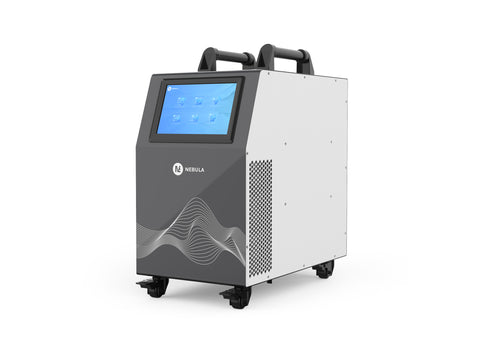

Nebula Power Li-ion Battery Pack Energy Feedback Charge-discharge Test System BAT-NEEFLCT-300100PT-E002
SKU: BAT-NEEFLCT-300100PT-E002
Nebula Power Li-ion Battery Pack Energy Feedback Charge-discharge Test System BAT-NEEFLCT-300100PT-E002
Product details:
BAT-NEEFLCT-300100PT-E002 is a high-performance mobile battery pack test system. With energy feedback function, it can be used in the testing field of Li-ion battery packs or small battery packs. BAT-NEEFLCT-300100PT-E002 can execute variable power curve output and current curve output at the millisecond level and carry out DCIR test of battery packs. It can be operated and controlled via the device’s touch screen software or mobile app or PC software with excellent accuracy and flexibility. It complies with IEC, SAE, GB...etc. The test data obtained helps battery manufacturers, EV manufacturers, energy storage manufacturers and testing institutes to make a comprehensive assessment of battery quality, providing a scientific basis for battery research, production and application. The equipment has obtained CE certification
About Nebula
Nebula is a global leader in advanced battery testing equipment, renowned for its precision, reliability, and cutting-edge technology. Our comprehensive product range supports a wide array of applications, including battery R&D, manufacturing automation, and energy storage systems. With a dedicated after-sales service team based in North America, we provide direct, localized support to ensure seamless operation and customer satisfaction. Nebula’s commitment to innovation and quality positions us at the forefront of the industry, empowering clients worldwide to achieve exceptional performance and sustainability goals.
MSE Supplies is an authorized distributor of Nebula in the USA. The product figure is for reference only. The actual product may look different based on product configuration.
MSE Supplies is a US-based leading supplier of battery research materials and equipment with thousands of customers worldwide.
Specifications:
| Sound | ≤70dB (measured at 1m from the device) |
| Heat dissipation | Air forced cooling |
| Energy feedback function | Battery energy discharged to the AC grid DC-AC mode |
| IP Rating | IP21 |
| Output line | 3m of copper wire as standard (copper nose, quick disconnect plug) |
| channel | 1 |
| Power Supply | 3x480 V ±10% 60 Hz ±5% US 3x208 V ±10% 60 Hz ±5% US 3x208 V ±10% 50 Hz ±5% US |
| Power factor | ≥0.99（Full load） |
| Total Harmonic Distortion (THD) | ≤5%（Full load） |
| Input protection | Anti-surge, anti-islanding, over/under frequency protection, over/under voltage protection, phase loss protection, AC short circuit protection |
| Voltage range (DC) | 0V~300V |
| Voltage output accuracy | ±0.05% FS (0℃-45℃ ambient temperature) |
| Voltage resolution | 1mV |
| Current range | ±100A |
| Min. current output | 50mA |
| Current resolution | 1mA |
| Current output accuracy | ±0.05% FS (0℃-45℃ ambient temperature) |
| Output power of full cabinet | 20kW (Max) |
| Power resolution | 1W |
| Dimension | 340mm（W）*600mm（D）*696mm（H） |
| Weight | Appro.60kg |
| Charge discharge mode | CC/CV/CCCV/CP/DC/DP/DR/DCIR |
