Zirconium Diboride (ZrB2) Powder, 99.5% Purity, -325 Mesh - MSE Supplies LLC

MSE PRO Zirconium Diboride (ZrB2) Powder, 99.5% Purity, -325 Mesh

  • $ 33500

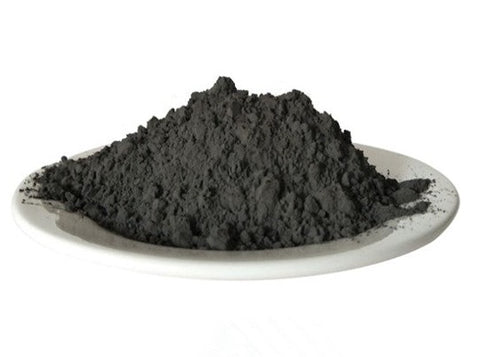

MSE PRO™ Zirconium Diboride (ZrB2) Powder, 99.5% Purity, -325 Mesh

  • CAS Number: 12045-64-6
  • Product Number (SKU#): PO1240 (1kg), PO1241 (25kg)
  • Formula: ZrB2
  • Appearance: Dark gray powder
  • Melting Point: 3040°C
  • Density: 6.085g/cm3
  • Chemical Composition: B (19.10%); Zr (78.9%); Hf (1.5%)

Applications

Zirconium diboride (ZrB2) is a Ultra-high-temperature ceramic (UHTC) with a melting temperature of 3040°C. Due to its high melting point and elastic modulus, good hardness and abrasion, it has been used in a variant of technological applications, such as furnace equipment, aerospace refractory and thermal protection layers. Further, it has been utilized in nuclear applications because of Boron element.

References:

1. "Synthesis and consolidation of zirconium diboride." Advances in Applied Ceramics 110.6 (2011): 321-334.

2. "Strength of zirconium diboride to 2300°C." Journal of the American Ceramic Society 96.1 (2013): 47-50.

3. "Zirconium-diboride silicon-carbide composites: A review." Ceramics International (2021).
