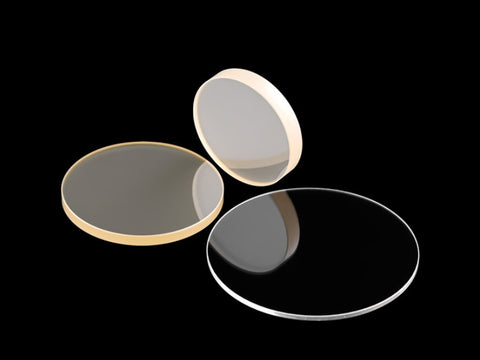

MSE PRO Zinc Sulfide (ZnS) Flat Windows, Round Shape
SKU: UZSR-12.5-2
MSE PRO™ Zinc Sulfide (ZnS) Flat Windows, Round Shape
Flat window film is a type of parallel flat panel commonly used as a protective coating for electronic sensors or external environmental detectors. Zinc sulfide (ZnS) is suitable for infrared applications. MSE Supplies provides both non-coated and coated with IR2 anti-reflective film zinc sulfide (ZnS) flat window options.
Coating treatments can also be applied to enhance its transparency and anti-reflective properties. Please contact us for customized coating services.
Technical Data:
| Diameter | 2-300mm |
| Diameter Tolerance | +0.0/-0.1mm |
| Thickness | 0.2-60mm |
| Thickness Tolerance | ±0.1mm |
| Parallelism | <1' |
| Surface Quality | 40-20 Scratch-Dig |
| Bevel | 0.2mmX45° |
| Surface Figure | λ@633mm |
| Material | ZnS |
MSE Supplies can offer a variant of optical elements, with different materials, size, surface quality and coating. Please contact us for customization or bulk orders.
