Zinc Sulfide Sputtering Targets ZnS, MSE Supplies

MSE PRO Zinc Sulfide Sputtering Targets ZnS

  • $ 22770

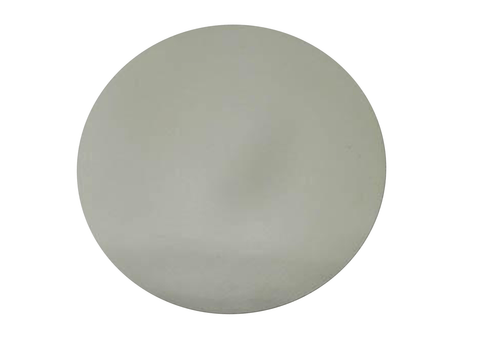

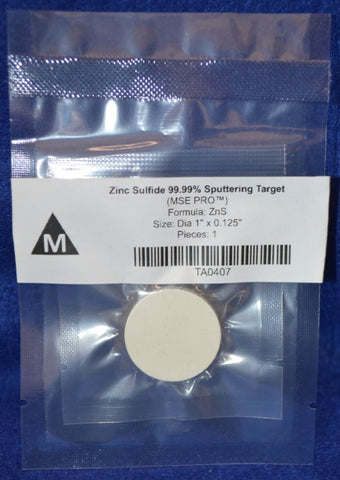

Zinc Sulfide (ZnS) Sputtering Target

To add a Cu Backing Plate with Indium Bonding for Sputtering Targets

Product SKU:

TA0407 – TA0414

CAS#:

1314-98-3

Molar Mass:

97.47 g/mol

Density:

4.09 g/cm3

Melting Point:

1,850 °C

Shape:

Discs, Rectangle, Step, Plates, Sheets, Rods, Custom-Made

Dimension:

Diameter (200mm), Length (300mm), Width (200mm), Thickness (1mm), Custom-Made

Zinc Sulphide Evaporation Material (please contact us for quote)

  • Density: 3.98 g/cm3
  • Purity: 99.9%, 99.9%
  • Hardness: (acc. to Mohs) 3.5 -- 4, (acc. to Knoop) 178X27 Kg/mm2, Linear expansion coefficient 6.5X10-6
  • Melting point: 1850°C
  • Specification: Solubility 1X10-3g/100g H2O, Soluble in acid,
  • Properties of thin film
    •  Transmission range 4000 ~ 14000nm
    •  Refractive index at 550nm ~ 2.3um
  • Suggestions on Evaporation
    • Molybdenum, tantalum boat, Mo boat, electron-beam gun, ION Gun
    • Evaporation temperature 800 to 100 C
    • Evaporation pressures 10-3 to 10-4
    • Substrate temperature 30 ~ 150 C
  • Color/Shape: solid substance, White or yellowish powder,tablets, granular.
  • Shape: (Granular)3-6mm, 6-50mm, 10-70mm (Tablet) Dia 8mm or other
  • Applications: Anti-reflection films. PVD or CVD process as evaporation materials in Decorative and IR coating, often with low refractive materials MgF2, SiO2, SiO or high refractive materials Ge. Multi-layer coatings, beam splitters.
