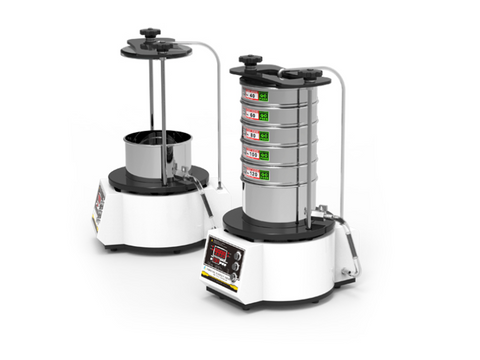

MSE PRO Wet Three-Dimensional Vibrating Sieve Machine
SKU: MA0945
MSE PRO™ Wet Three-Dimensional Vibrating Sieve Machine
MSE PRO™ Dry Three-Dimensional Vibrating Sieve Machine focuses on solving the screening task of dry and wet samples in the laboratory, suitable for sieving 20g - 3kg dry, wet or liquid samples, the product follows the design idea of precision, efficiency and silence, and the configuration time control panel can realize the intermittent screening, timing, internal/external circulation wet sieve of constant amplitude, including password lock screen protection and one-key reset function, which is convenient and quick to use, simple to operate, quiet and comfortable, safe and reliable.
Product Features
-
Ergonomic design, suitable for desktop use, low noise, and comfortable operation
-
Timed control interface with digital display
-
Simple installation, setup, and operation; maintenance-free and wear-free
-
Electro-anodized pure aluminum sieve tray and pressing plate, making them lighter and resistant to chipping or paint damage
-
Achieves high-efficiency sieving results in a short time
-
Up to 3000 vibrations/min for high-frequency three-dimensional sieving
-
Versatile functions, including intermittent and continuous sieving modes, as well as timing, screen lock, alert sound, and one-click reset
-
Comfortable fastening system for quick installation and securing of test sieves
-
Compatible with standard test sieves of 100mm, 150mm, and 200mm diameter
- Internal or external circulation wet sieving
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
MSE Supplies offers a variety of Crushers. Please contact us for more information.
Specifications:
| SKU # | MA0945 |
| Product Name: | Wet three-dimensional vibrating sieve machine |
| Processing principle: | High-frequency three-dimensional parabolic motion |
| Application sample features: | Powdered | Granular | Small lumpy | Loose | suspended solids, etc |
| Type of processing: | Particle size determination, separation, and grading |
| Maximum Load: | 3 kg |
| Number of screen layers: | Layers 1-8 |
| Maximum screen tower mass: | 4 kg |
| Amplitude: | 0.2-3 mm |
| Vibration Frequency: | 3000 times/min |
| Sieving particle size range: | 20 um – 125 mm |
| Maximum screen diameter available: | 200mm |
| Maximum Screen Tower Height: | 510mm |
| Key features: | Numerical control | Timing | Continuous sieving | Intermittent screening |
| Additional Features: | Comfort visual screen platen |
| Sieving method: | Dry | Wet |
| Electrical Description: | 100-120V/200-240V AC ,50-60Hz, 200W |
| Power Port: | NATIONAL STANDARD/EUROPEAN STANDARD/AMERICAN STANDARD/BRITISH STANDARD, ETC |
| Net weight: | 37 kg |
| Dimensions (WDxH): | 300*405*730mm |
| Ingress Protection: | IP65 |
| Standard: | CE / ISO9001 |
