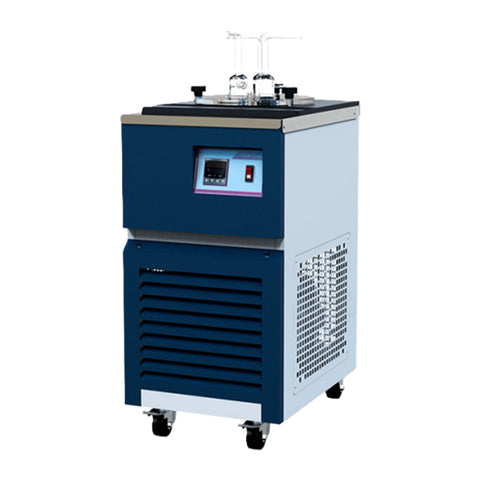

MSE PRO Vapor Trap (Indirect Cooling Type)
SKU: MA2169
MSE PRO™ Vapor Trap (Indirect Cooling Type)
MSE PRO™ Vapor Trap (Indirect Cooling Type) Traps water vapor and organic solvents discharged from vacuum drying ovens or reduced-pressure concentration systems. Enhances vacuum system efficiency, significantly reduces vapor intake by the vacuum pump and extends pump service life.
Key Features:
- Employs an indirect cooling principle.
- Collection flask constructed from Borosilicate Glass 3.3, compatible with water,
acids, and organic solvents. - Cooling bath fabricated from 06Cr19Ni10 stainless steel (GB Standard), equipped
with a drain valve for efficient coolant discharge. - Suitable for use as a pre-freezing bath or low-temperature bath.
- Features a digital temperature display for real-time monitoring of bath temperature,
facilitating optimal activation of the vacuum acquisition device. - Integrated safety protections: Time-delay protection, over-current protection,
overheating protection, and pressure protection. - Compact footprint with locking casters for easy mobility.
- Eliminates the need for dry ice or liquid nitrogen.
Specifications:
| Type | MA2169 | |
| No-load Minimum Temperature (℃) | -40 | |
| Cooling Method | Indirect Cooling | |
| Temperature Display Mode | Digital Display | |
| Sensor Index Number | Pt100 | |
| Setting Method | Arbitrary setting within the operating temperature range | |
| Safety Protection | Time Delay, Overcurrent, Overheating, Pressure | |
| Cooling Capacity (W) | -10℃ | 300 |
| -20℃ | 250 | |
| -30℃ | 150 | |
| -35℃ | 50 | |
| Refrigerant | R404A | |
| Freezer Tank Size (mm) | Ф160×250 | |
| Cold Trap Flask Size (mm) | Ф50×300 | |
| Cold Trap Flask Material | Borosilicate Glass 3.3 | |
| Vacuum Line Interface Size (mm) | Ф12 Hose Connector | |
| Number of Cold Trap Flasks (pcs) | 3 | |
| Ambient Temperature (℃) | 5～35 | |
| Ambient Relative Humidity (%) | ≤70 | |
| Overall Power (W) | 530 | |
| Overall Current (A) | 2.9 | |
| Power Supply | 220-240V～, 50Hz or 110 V, 60 Hz | |
| Dimension (mm) | 350W×470D×811H | |
| Net Weight (kg) | 45 | |
