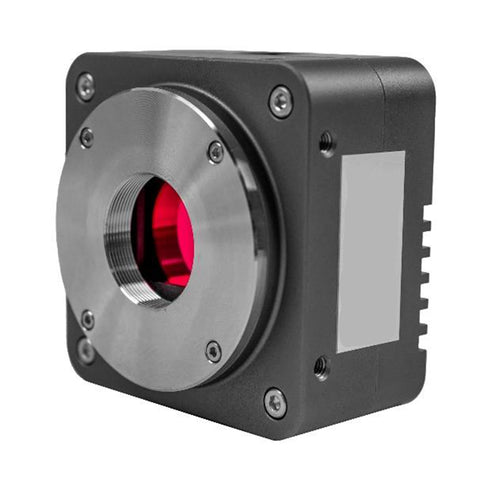

MSE PRO USB3.0 C-mount CMOS Color Digital Camera (1/1.2", 8.3MP)
SKU: LS0065511
MSE PRO™ USB3.0 C-mount CMOS Color Digital Camera (1/1.2",8.3MP)
LS0065511 series USB3.0 digital cameras adopt SONY Exmor CMOS sensor as the image-picking device and USB3.0 is used as the transfer interface. It has hardware resolutions
range from 1.5MP to 45MP and come with the integrated CNC aluminum alloy compact housing. LS0065511 series cameras integrated with 12bit Ultra-fineTM Hardware Image Signal Processor Video Pipeline (Ultra-fineTM HISP VP) for Demosaic, Automatic Exposition, Gain Adjustment, One Push White Balance, Chrominance Adjustment, Saturation Adjustment, Gamma Correction, Luminance Adjustment, Contrast Adjustment, Bayer and finally form RAW data for 8/12bit output. This will move the heavy burden of the processing from the PC to the Ultra-fineTM HISP VP and greatly accelerating the processing speed. It comes with advanced video & image processing application ImageView; Providing Windows/ Linux/ macOS/ Android multiple platforms SDK (Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc). It can be widely used in bright field, dark field, fluorescent light environment and normal microscope image capture and analysis with higher frame rate.
Feature:
The basic characteristics of LS0065511 series camera are as follows:
- SONY Exmor, Exmor R （Backilluminated, Exmor RS CMOS sensor with USB3.0 interface.
- Real-time 8/12bit depth switch （depending on sensor.
- Ultra-fineTM HISP VP and USB3.0 5 Gbps interface ensuring high frame rates.
- Super high sensitivity up to 2188mV （IMX264.
- Ultra-low noise and low power dissipation by using column-parallel A/D conversion.
- With hardware resolution from 1.5M to 45M.
- Rolling Shutter or Global Shutter.
- Standard C-Mount camera.
- CNC aluminum alloy housing.
- With advanced video & image processing application ImageView.
- Providing Windows/Linux/Mac OS multiple platforms SDK.
- Native C/C++, C#/VB.Net, DirectShow, Twain, LabView.
Specification:
| Order Code | Sensor & Size(mm) | Pixel Size(μm) | G Sensitivity Dark Signal | FPS/Resolution | Binning | Exposure |
| LS0065511 | 8.3M/IMX585(C) | 2.9x2.9 | 5970(mV/lx/s) | 45@3840x2160 | 1x1 | 0.02ms~15s |
| 1/1.2” (11.14x6.26) | 0.13mv with 1/30s | 70@1920x1080 | 2x2 | |||
| Other Specification for BUC5F Series Cameras | ||||||
| Spectral Range | 380-650nm (with IR-cut Filter) | |||||
| White Balance | ROI White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor | |||||
| Color Technique | Ultra-fineTM HISPVP /NA for Monochromatic Sensor | |||||
| Capture/Control API | Windows/Linux/macOS/Android Multiple Platform SDK (Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc.) | |||||
| Recording System | Still Picture and Movie | |||||
| Cooling System* | Natural | |||||
| Operating Environment | ||||||
| Operating Temperature （in Centigrade） | -10~ 50 | |||||
| Storage Temperature （in Centigrade） | -20~ 60 | |||||
| Operating Humidity | 30~80%RH | |||||
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
MSE Supplies offers a variety of biological microscopes accessories. Please contact us for more information.
