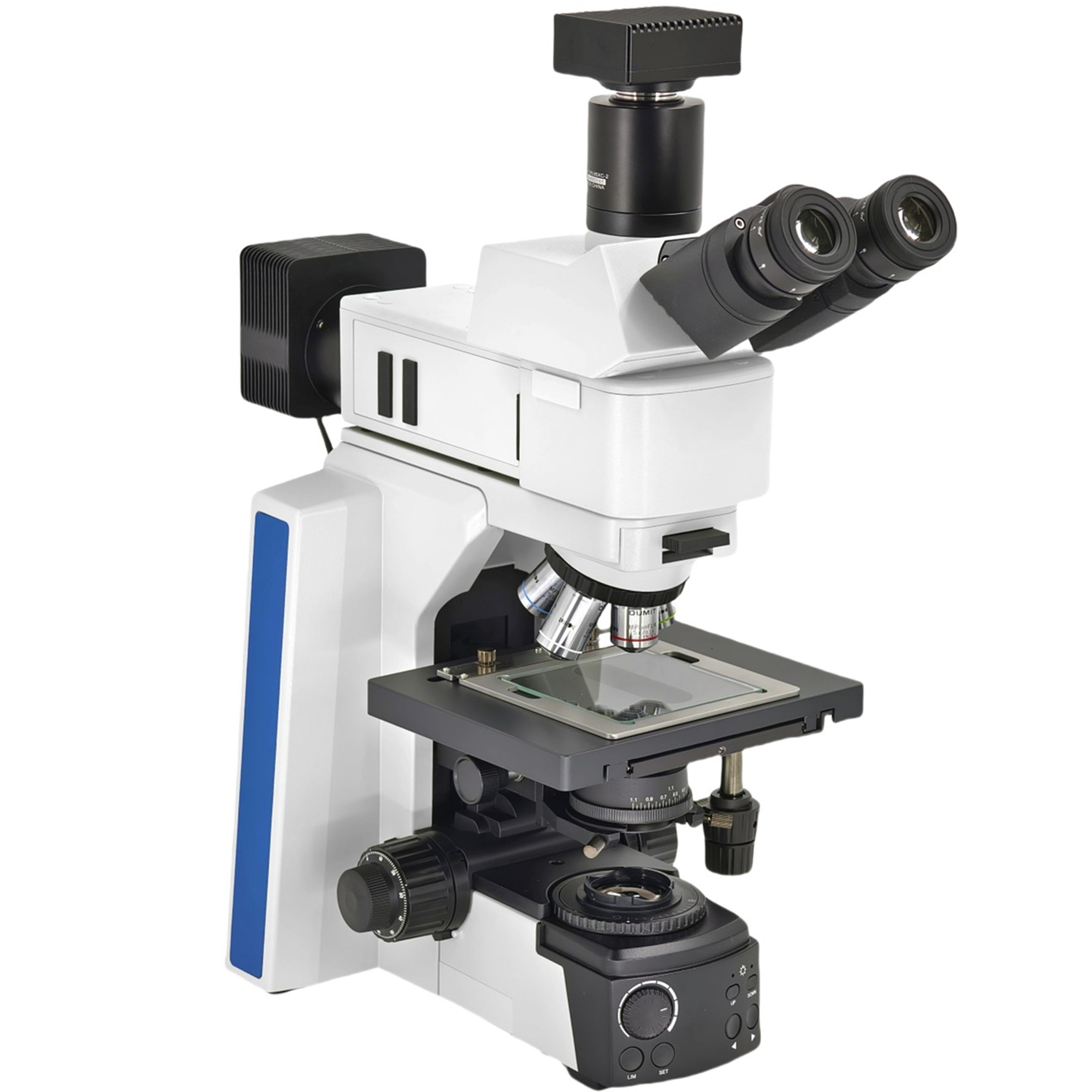

MSE PRO Upright Metallurgical Microscope with Extended Working Distance Optics
Introduction
The MSE PRO Upright Metallurgical Microscope with Extended Working Distance Optics is a modern imaging system designed for precise metallographic analysis and industrial inspection. Featuring an advanced infinity-corrected optical system and extended working distance objectives, it delivers high-resolution images with excellent depth and clarity.
With intelligent illumination control, modular design, and seamless integration with imaging software, this microscope provides an efficient workflow from observation to data analysis, making it ideal for materials research, quality control, and semiconductor inspection applications.
Key Features
- Extended Working Distance Optics – Long working distance semi-apochromatic objectives for improved sample accessibility and clarity
- Advanced Optical Performance – Infinity-corrected system with enhanced resolution and color accuracy
- Intelligent Illumination Control – Automatic brightness adjustment and memory function for consistent observation conditions
- Wide Field Imaging – Large field of view for efficient scanning and detailed analysis
- Flexible Observation Modes – Supports brightfield and polarization for versatile material analysis
- Ergonomic & Stable Design – Rigid structure with low-position controls for comfortable long-term operation
- Modular & Expandable System – Compatible with imaging software, cameras, and advanced analysis accessories
Specification
|
Parameter
|
Specification |
| Optical System | Infinity-corrected optical system |
| Magnification Range | 50× – 500× |
| Eyepieces | SWH10×/23 mm wide field |
| Objectives | 5× / 10× / 20× / 50× (semi-apochromatic, long working distance) |
| Observation Head | Trinocular, adjustable |
| Interpupillary Distance | 46 – 78 mm |
| Light Split Ratio | 100:0 or 50:50 |
| Nosepiece | 5-position encoded turret |
| Focusing System | Coaxial coarse & fine focus |
| Fine Focus Accuracy | 0.001 mm |
| Coarse Focus Travel | 27 mm |
| Maximum Sample Height | Up to 45 mm |
| Stage Size | 210 × 175 mm |
| Stage Travel Range | 75 mm (X) × 50 mm (Y) |
| Illumination System | Reflected LED Koehler illumination (10 W, ~4500 K) |
| Input Voltage | 110V, 60Hz |
| Condenser | Achromatic condenser (NA 0.9) |
| Camera Interface | 0.5× C-mount |
| Additional Features | Brightness memory, encoded objectives, polarization support |
MSE supplies offers various metallographic equipment, please contact us for more information.
