MSE PRO Uncoated UV Fused Silica Optical Dome
SKU: UOUV-25-1

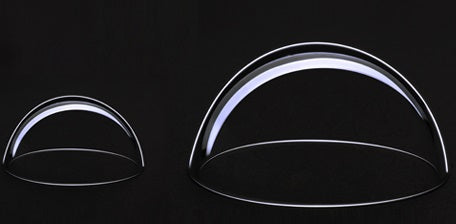

MSE PRO™ Uncoated UV Fused Silica Optical Dome
Dome windows are often used as wide angle protective windows for optical detectors, optical sensor and other electrical components. Fused silica is ideal material for UV applications.
Technical Data:
| Diameter | 25-100mm |
| Diameter Tolerance | +0.0/-0.2mm |
| Thickness | 1-4mm |
| Thickness Tolerance | ±0.2mm |
| Surface Quality | 60-40 |
| Bevel | 0.2-0.5mmX45° |
| Surface Figure |
IRR<10 fringes@633nm |
| Material | UV grade Fused Silica |
MSE Supplies can offer a variety of optical elements, with different materials, size, surface quality and coating. Please contact us for customization or bulk orders.
