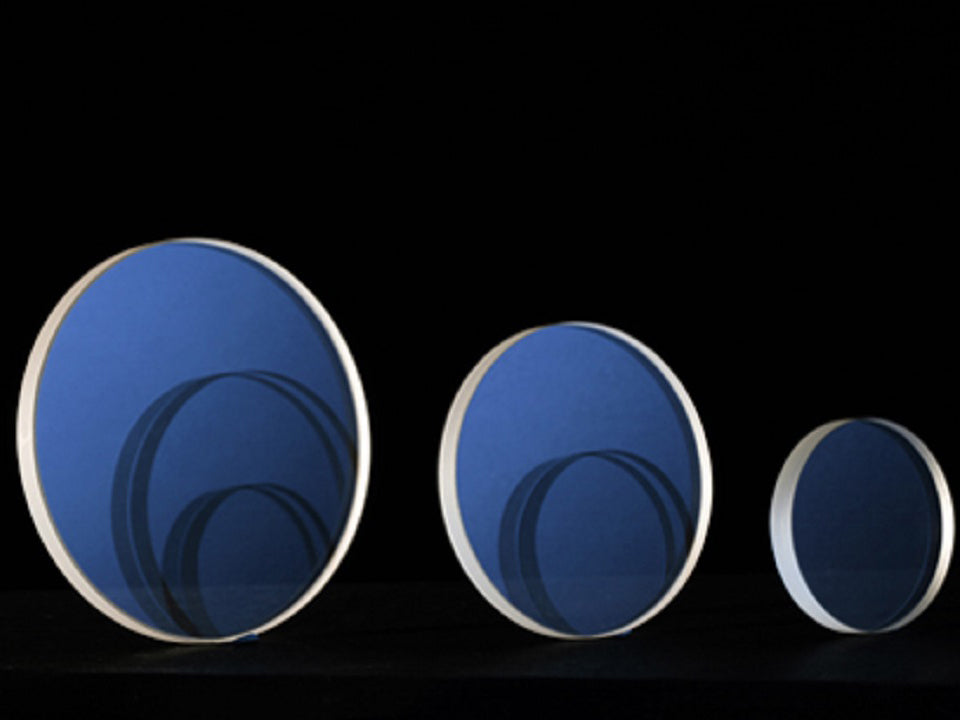

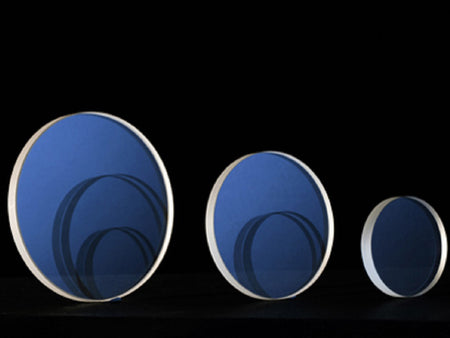

MSE PRO™ Uncoated High Precision Sapphire Flat Windows, Round Shape
Optical Windows are flat plane-parallel plates, which are often used to protect electronic sensors or detectors without blocking optical transmission. Optical Windows do not change the magnification of a system. We offer a variety of optical windows, which cover the wavelength range from ultraviolet (UV) to infrared (IR). Sapphire windows are ideal for UV range and scratch-resistance applications.
Coating treatments can also be applied to enhance its transparency and anti-reflective properties. Please contact us for customized coating services.
Technical Data:
| Diameter | 3-25mm |
| Diameter Tolerance | +0.0/-0.1mm |
| Thickness | 2-10mm |
| Thickness Tolerance | ±0.2mm |
| Parallelism | <30" |
| Surface Quality | 40-20 |
| Bevel | 0.2-0.5mmX45° |
| Surface Figure |
λ/4@633nm |
| Material | Optical Sapphire |
MSE Supplies can offer a variety of optical elements, with different materials, size, surface quality and coating. Please contact us for customization or bulk orders.
