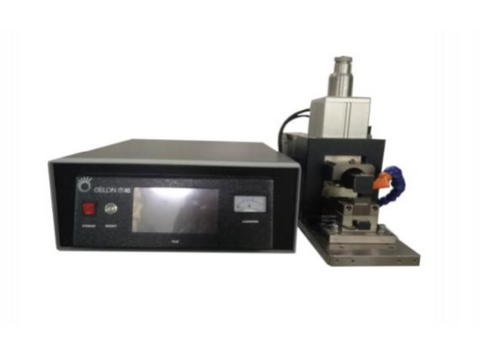

MSE PRO™ Ultrasonic Metal Welding Machine for Tab Welding and Multi-lamination Welding

This product is suitable for stacking technology power battery positive electrode, negative electrode welding. High efficiency and low internal resistance are ideal for large capacity power battery.

Features:

(1) Circuit characteristics Fully digital full bridge circuit, stable performance, strong welding ability, with energy feedback function, real-time monitoring of welding quality. 485 communication interfaces. The matching of the whole machine has reached the international advanced level.

(2) Welding mode: Time mode, energy mode, continuous mode, segment mode. The interface has current mode, current times, accumulated times, current frequency, current amplitude, current power, current energy, working air pressure, cylinder stroke, and the 485 interface can be perfectly connected with the MES management system.

(3) Records of machine failures of the protection system, including rectification protection, temperature protection, transducer resistance error, power protection, speed protection, air pressure protection, pressure protection, IGBT temperature protection, rectification current protection, displacement protection, and energy conversion Device current protection, transducer voltage protection, welding power is too high, welding power is high or low, and energy is too low.

(4) Data reading

This machine allows users to store various welding process parameters for easy retrieval and reuse, enhancing operational efficiency.

(5) Curve function Curve comparison: voltage curve, current curve, power curve. After the ultrasound is completed, the latest working curve will be refreshed.

Specifications:

• Frequency: 20KHz±10%
• Max power: 4200W
• Power supply: 110VAC±10%
• Air pressure: 0.4~0.6MPa temperature: lower than 45℃ humidity:  lower than48%
• Generator: 619*470*202mm
• Ultrasonic metal welder: 470mm x454mm x290mm
• Weight: 60kg
