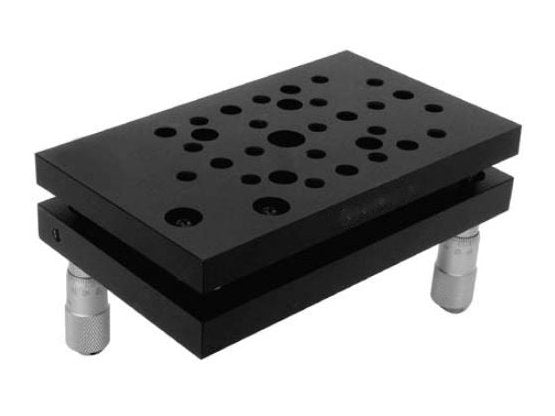

MSE PRO Two-Dimensional Tilt Stage (Table Size 125x75mm)
MSE PRO™ provides Hard Aluminum Tilt Stages (Table Size 125x75mm). Manual tilt stages are precision-engineered devices designed to provide accurate angular adjustments for laboratory, industrial, or optical applications. These stages allow users to manually tilt and position objects or instruments with high stability and repeatability. Equipped with fine adjustment knobs and sturdy construction, they are ideal for aligning optical components, calibrating sensors, or conducting precision experiments. Many models feature a compact design, smooth motion control, and compatibility with other positioning systems, ensuring seamless integration into existing setups. Perfect for researchers, engineers, and technicians, manual tilt stages offer reliability and precision for demanding tasks.
Key Features
-
Provides dual-axis tilt adjustment.
-
Micrometer head drive, high-quality disc spring reset, excellent stability.
- There are connection holes with standard hole spacing on the upper and lower parts, which is convenient for combination with other series products.
Specification
| Parameter | Value |
| Model | LDTSQ-02-5V2 |
| Platform Size | 125 × 75 mm |
| Drive Mode | Vertical drive of the micro tilt head |
| Function | 0°, θy two-dimensional tilt adjustment |
| Adjustment Range | ±5° |
| Minimum Adjustment | 5′ |
| Load Capacity | 10 kg |
| Weight | 0.5 kg |
MSE Supplies can offer a variety of optomechanical components, with different size, freedom of regulation and optical elements combination. Please contact us for customization or bulk orders.
