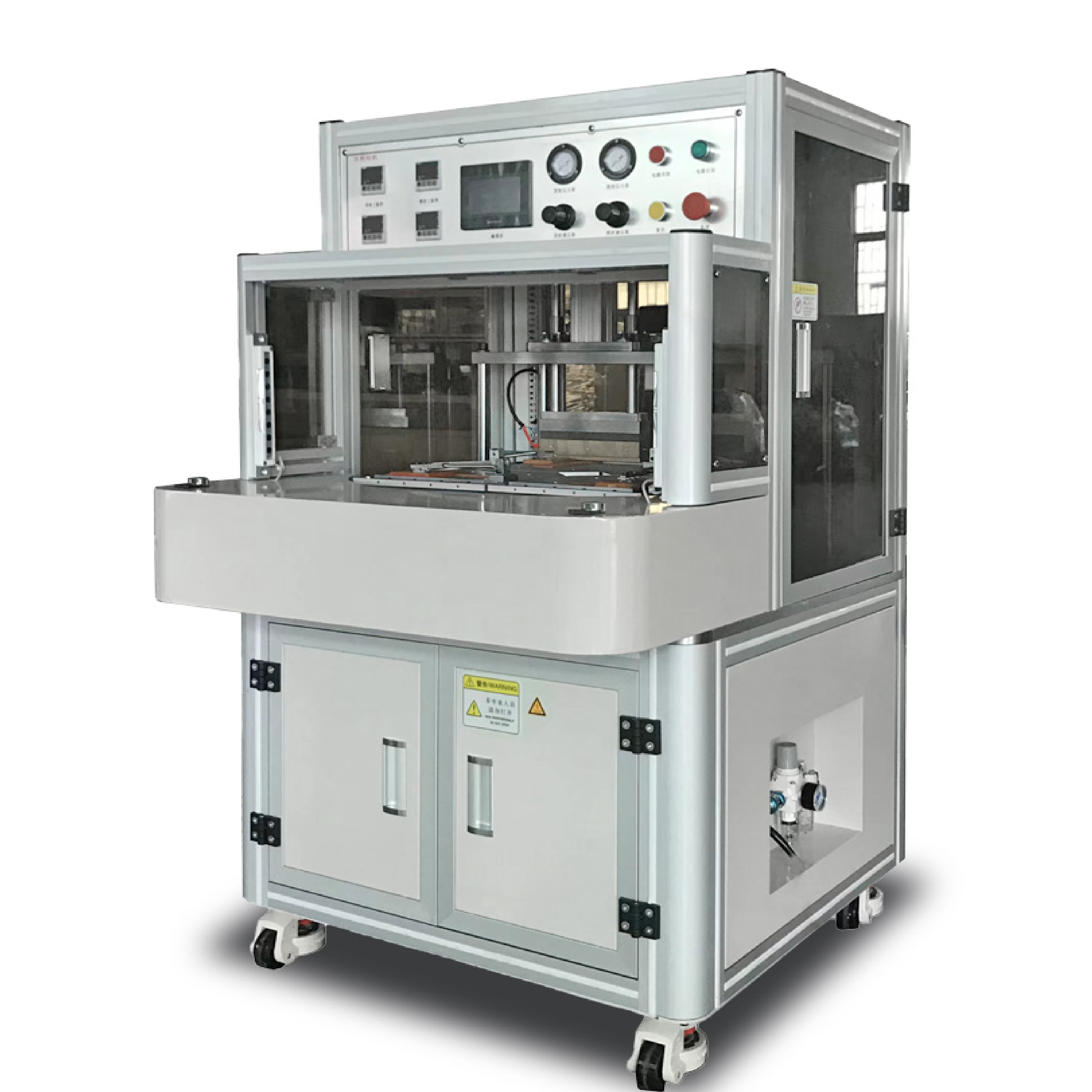

MSE PRO Turntable Pouch Cell Top and Side Sealing Machine

MSE PRO Turntable Pouch Cell Top and Side Sealing Machine

Introduction

The MSE PRO Turntable Pouch Cell Top and Side Sealing Machine is designed for efficient top and side edge sealing of lithium-ion pouch cell cases. With a turntable design, adjustable sealing parameters, and PLC touchscreen control, it ensures precise, safe, and high-speed sealing for laboratory or production use.

Key Features

• Turntable Design
  Four-station turntable with automatic battery transfer for continuous operation.
• Dual Sealing Capability
  Top and side sealing completed in a single machine with separate adjustable heating and pressure.
• Adjustable Sealing Parameters
  Sealing temperature (RT–250℃), pressure, cylinder stroke, and time can be independently adjusted for process flexibility.
• High-Speed Operation
  Capable of sealing up to 500 batteries per hour, depending on process parameters.
• Safety Features
  Equipped with a light curtain; the machine automatically resets if an object enters the work area for safe operation.
• PLC Touchscreen Control
  Intuitive display for monitoring and adjusting all operational parameters.
• Customizable Sealing Heads
  Top seal with soft seal and tab preheating block; side seal with hard seal, both can be customized according to customer requirements.
• Reliable Construction
  Durable design with high-quality materials for consistent, long-term performance.

Specifications
