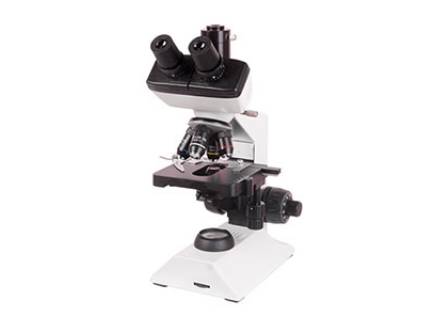

MSE PRO Trinocular Laboratory Biological Microscope
SKU: BB0379
MSE PRO™ Trinocular Laboratory Biological Microscope
The MSE PRO™ Trinocular Laboratory Biological Microscope is a versatile and robust optical system, suitable for advanced research, education, and industrial applications. It features multiple head options, including a monocular head inclined at 45°, sliding binocular and trinocular heads at 45°, and a dual observation head with 360° rotation for flexible viewing configurations. The ball-beating quadruple nosepiece supports high-quality achromatic objectives (4X, 10X, 40X, 100X oil), offering clear and sharp imaging for detailed analysis. Its double-layer mechanical stage (115x125mm) with a moving range of 30x50mm ensures precise sample manipulation. The ABBE NA1.25 condenser, with an adjustable iris diaphragm and filter, enhances illumination provided by a halogen lamp (6V/20W) or an energy-efficient 3W LED light. Packaged securely with foam, the MSE Pro is built to last and ensures reliable performance.
- Flexible Viewing Options: Includes monocular, binocular, and trinocular heads, as well as dual observation capability with a 360° rotatable design.
- Precision Optics: Achromatic objectives (4X, 10X, 40X, 100X oil) deliver high-resolution imaging with minimal aberration.
- Advanced Stage Design: Double-layer mechanical stage (115x125mm) with smooth, precise movement for ease of sample positioning.
- Enhanced Illumination: Equipped with a halogen lamp (6V/20W) and optional 3W LED lighting for customizable brightness and clarity.
- Durable and Portable: Secure foam packaging ensures safe transport and long-lasting durability for various applications.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
MSE Supplies offers a variety of Biological Microscopes. Please contact us for more information.
Specifications:
| SKU# | Specification | BB0379 |
| Viewing Head | Monocular Head inclined at 45° | / |
| Dual Observation 45°, -90° inclined and vertical 360° rotatable | / | |
| Sliding Binocular Head inclined at 45° | / | |
| Compensation Free Binocular Head inclined at 30° | / | |
| Sliding Free Trinocular Head inclined at 45° | ✓ | |
| Nosepiece | Ball Beating Quadruple Nosepiece | ✓ |
| Eyepiece | Wide Field Plane-scope Eyepiece: WF10X 18 mm | ✓ |
| Objective | Achromatic 4X, 10X, 40X (Spring) 100X (Spring, Oil) | ✓ |
| Stage | Double Layer Mechanical Stage 115*125 mm moving Range 30*50 mm | ✓ |
| Condenser | ABBE NA1.25 condenser with Iris Diaphragm & filter, rack & pinion adjustment | ✓ |
| Illumination | Build-in Illumination, Halogen lamp 6V/20W, Power Supply 220V, 3W LED | ✓ |
| Power Supply | AC110/220V | ✓ |
| Package | Canon with foam | ✓ |
Note: ✓ Standard Outfit, / without this feature
Note: 110V/220V for LED lamp, 220V only for halogen lamp
Optional: 2.0, 3.0 or 5.0 Megapixel. CMOS electronic eyepiece(only for Trinocular microscope).
