MSE PRO Trinocular Inverted Biological Microscope
SKU: BB0433

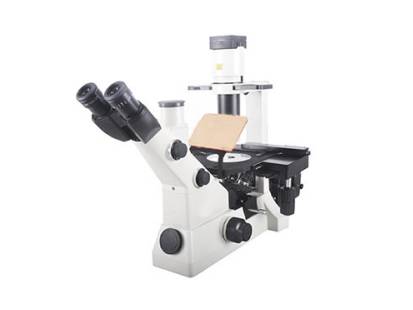

MSE PRO™ Trinocular Inverted Biological Microscope
The MSE PRO™ MSE PRO Trinocular Inverted Biological Microscope is a high-performance inverted microscope designed for various applications in cell biology, microbiology, and immunology. It features a trinocular viewing head, a range of high-quality objectives, a precise focusing system, and a powerful illumination system. The microscope also includes a mechanical stage for easy specimen manipulation and a camera port for image capture and analysis.
- Ergonomic Design: The trinocular viewing head is inclined at 45° and rotatable 360°, offering comfortable viewing for extended periods. The interpupillary distance is adjustable for individual preferences.
- High-Quality Optics: The microscope is equipped with a set of infinite plan achromatic and phase contrast objectives, providing sharp, clear, and distortion-free images across a wide field of view.
- Versatile Illumination: The microscope offers both halogen and LED illumination options, providing bright and even illumination for various applications. The LED light source is energy-efficient and has a long lifespan.
- Precise Focusing: The coaxial coarse and fine focusing system allows for accurate and precise focusing adjustments, even at high magnifications.
- Flexible Stage: The mechanical stage accommodates a variety of culture dishes and slides, making it suitable for different experimental setups.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
MSE Supplies offers a variety of Inverted Biological Microscopes. Please contact us for more information.
Specifications:
| SKU# | BB0433 | ||
| Optical System | Infinite optical system | ✓ | |
| View Head | Seidentopf binocular viewing head, Inclined at 45°, 360° rotatable, Interpupillary 48-75 mm | ✓ | |
| Eyepiece | wide field eyepiece WF10x/22, eyepiece tube diameter 30mm | ✓ | |
| Wide field eyepiece WF15 /16 | • | ||
| Wide field eyepiece INF20x/12 | • | ||
| Objective | LWD infinite plan achromatic objective 4x/0.10 WD=22 | ✓ | |
| LWD infinite plan achromatic phase objective | 10x/0.25 WD=8 | ✓ | |
| 20x/0.4 WD=3.1 | ✓ | ||
| 40x/0.55 WD=2.2 | ✓ | ||
| Infinite plan phase objective | 10x/0.25 WD=6 | • | |
| 20x/0.4 WD=3.1 | • | ||
| 40x/0.55 WD=2.2 | • | ||
| Lamp house adjustment objective | • | ||
| Nosepiece | Backward quintuple nosepiece | ✓ | |
| Condenser | ELWD condenser NA 0.3, LWD 72 mm(without condenser 150 mm) | ✓ | |
| Centering Telescope | Centering telescope (Φ30MM) | ✓ | |
| Phase Annulus | 10x-20x, 40x phase annulus plate (adjustable) | ✓ | |
| Stage | Plain stage 230x170 | ✓ | |
| Glass insert | ✓ | ||
| Attachable mechanical stage, X-Y coaxial control, moving rang 80x120 mm | ✓ | ||
| Auxiliary stages | ✓ | ||
| Terasaki holder | ✓ | ||
| Petri dish holder Φ38 | ✓ | ||
| Petri dish holder Φ54 | ✓ | ||
| Focusing | Coaxial Coarse and Fine Adjustment, Fine Division 0.002 mm, Moving Range up 4.5 mm, down 4.5 mm | ✓ | |
| Illumination | 6V, 30W halogen lamp, brightness adjustable | ✓ | |
| Filter | Blue, green and ground glass, diameter 45 mm | ✓ | |
| Power Supply | AC 110-220V | ✓ | |
| Accessories | Photo attachment | • | |
| C Mount 0.4x | • | ||
Note: ✓ Standard Outfit, • Optional, Trinocular microscope can be installed camera and screen.
