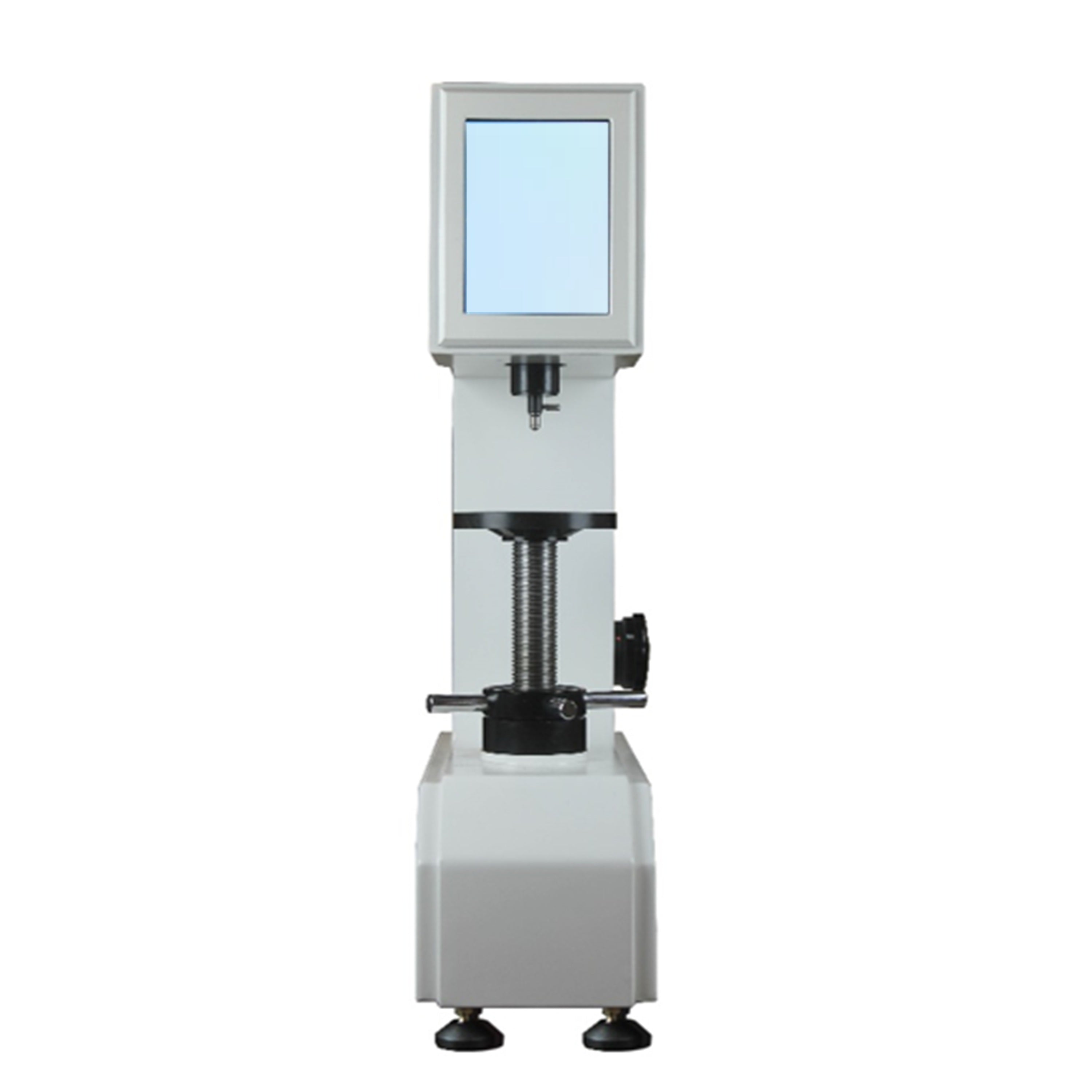

MSE PRO Touchscreen Digital Rockwell Hardness Tester with Deadweight Loading and Printer
Regular price
$ 4,000.95
Couldn't load pickup availability
Still have questions? Ask our experts!
MSE PRO Touchscreen Digital Rockwell Hardness Tester with Deadweight Loading and Printer
Introduction
The MSE PRO Touchscreen Digital Rockwell Hardness Tester is a reliable and user-friendly solution for precise hardness testing of metals and alloys. Featuring a deadweight loading system combined with high-precision sensing and an intuitive touchscreen interface, it delivers stable, repeatable results. With built-in data processing, scale conversion, and printing capability, this system is ideal for quality control and laboratory applications.
Key Features
- Deadweight loading system with high-precision sensor for stable and accurate measurements
- 8-inch touchscreen interface for intuitive operation and real-time data display
- Automatic hardness value correction across low, medium, and high ranges
- Built-in scale conversion (Rockwell, Brinell, Vickers, and superficial Rockwell)
- Data storage and export via USB or integrated printer (RS-232 interface)
- Advanced data management with pass/fail limits, alarms, and customizable test information
Specification
| Category | Specification |
| Initial Test Force | 10 kgf (98.07 N) |
| Total Test Force | 60 kgf (588 N), 100 kgf (980 N), 150 kgf (1471 N) |
| Rockwell Scales | HRA, HRBW, HRC, HRD, HREW, HRFW, HRGW, HRHW, HRKW, HRL, HRM, HRR, HRP, HRS, HRV |
| Test Range | HRA: 20–95; HRBW: 20–100; HRC: 20–70; HRD: 40–77; HREW: 70–100; HRFW: 60–100; HRGW: 30–94; HRHW: 80–100; HRKW: 40–100; HRL: 100–120; HRM: 85–115; HRR: 114–125 |
| Dwell Time | 0–99 s |
| Hardness Resolution | 0.1 HR |
| Test Force Accuracy | <1.0% |
| Display | LCD touchscreen (8-inch) |
| Data Output | LCD display, printer (RS-232), or USB (Excel export) |
| Scale Conversion | Rockwell, Brinell, Vickers, superficial Rockwell |
| Standards | BS EN 6508, ISO 6508, ASTM E18, GB/T 230 |
| Max Sample Height | 200 mm |
| Throat Depth | 160 mm |
| Dimensions | 560 × 200 × 800 mm |
| Weight | 70 kg |
| Power Supply | 110 V, 60 Hz |
MSE supplies offers various metallographic equipment, please contact us for more information.
