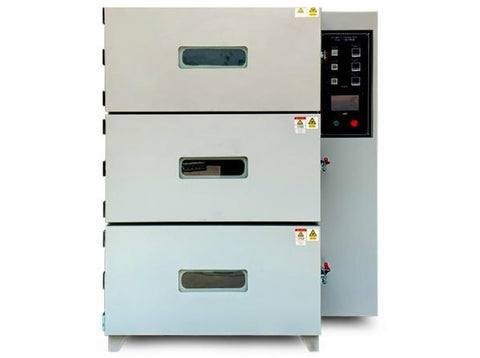

MSE PRO Three Layers Automatic Vacuum Oven for Pilot Battery Electrode Baking
SKU: BR0341
To better serve you, we would like to discuss your specific requirement.
Please Contact Us for a quote.
MSE Supplies offers a three layers automatic vacuum oven for pilot lithium battery material and electrode sheet baking. This vacuum oven is specially designed for vacuum drying in lithium battery industry production. The oven is equipped with automatic programmable control for temperature and vacuum. The size of the chamber and the barrier height is maximally meet the needs of the lithium battery industry.
Main Features:
- Three working chamber with one vacuum hole, controlled by solenoid valve separately
-

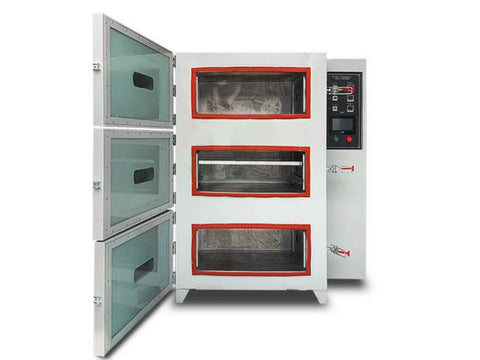

Three single door, with square observe window
-
Equipped with air switch, over current and temperature protection function
-
Vacuum, pressure, pneumatic automatic programmable control with 7.0 inch color LCD touch screen display
The equipment passed CE certification. Vacuum pump is optional. More details and customizable options about the oven are available upon request.
Specifications:
| SKU | BR0341 |
| Source voltage | AC380V, three phase, 50HZ |
| Power | 4.5KW*3 for three layers |
| Max current | 20A |
| Working chamber dimension (H*W*D) | 300*800*600mm*3 for three layers |
| Insulation layer thickness | 90mm Aluminum silicate fibers |
| Working temperature | RT+15℃~200℃ with accuracy ±1℃ |
| Temperature control mode | PID adjustment, intelligent digital display temperature controller |
| Vacuum degree | ≤100pa |
| Inner box material | SUS304 stainless steel |
| Dimension | 149*97*181cm |
| Weight | 400kg |
