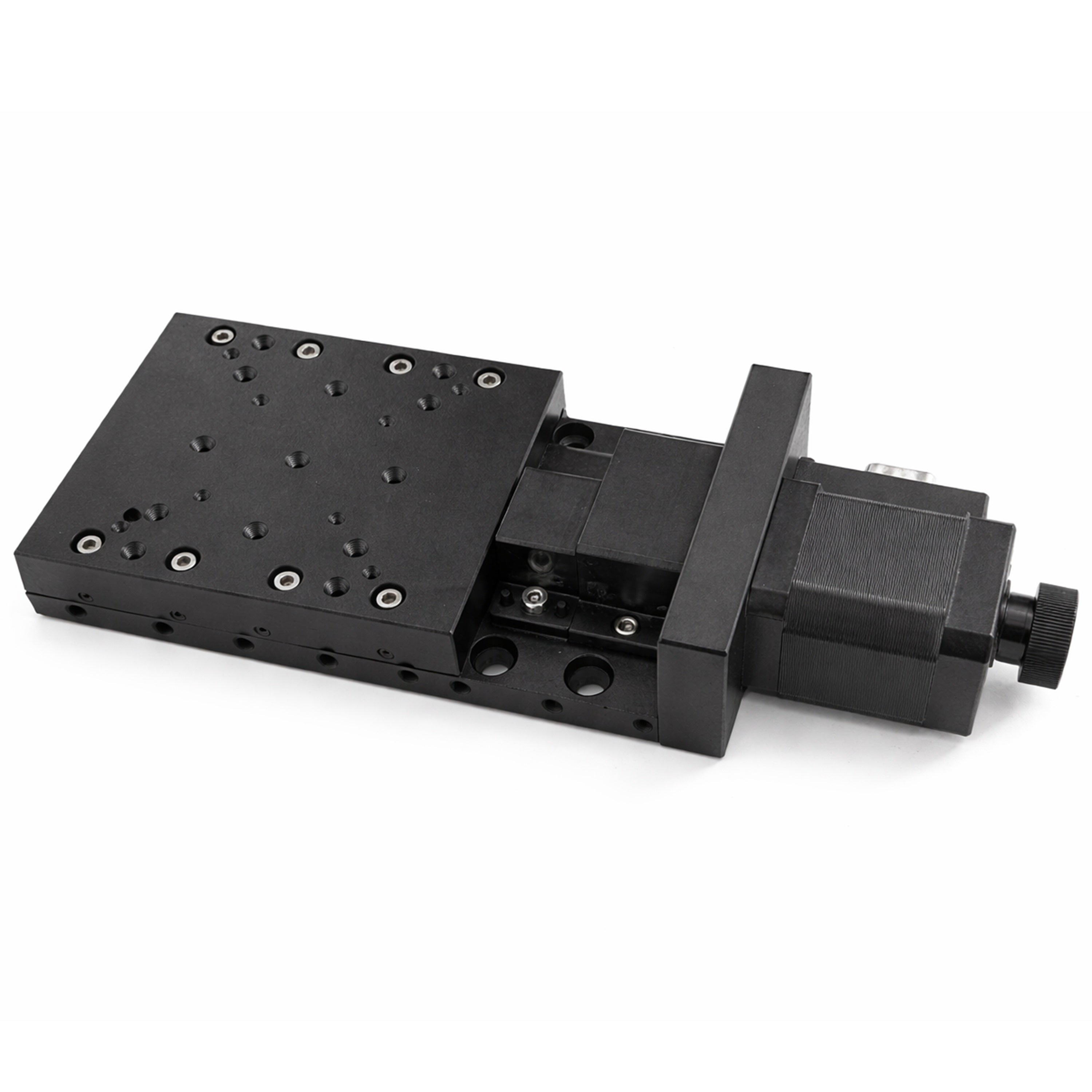

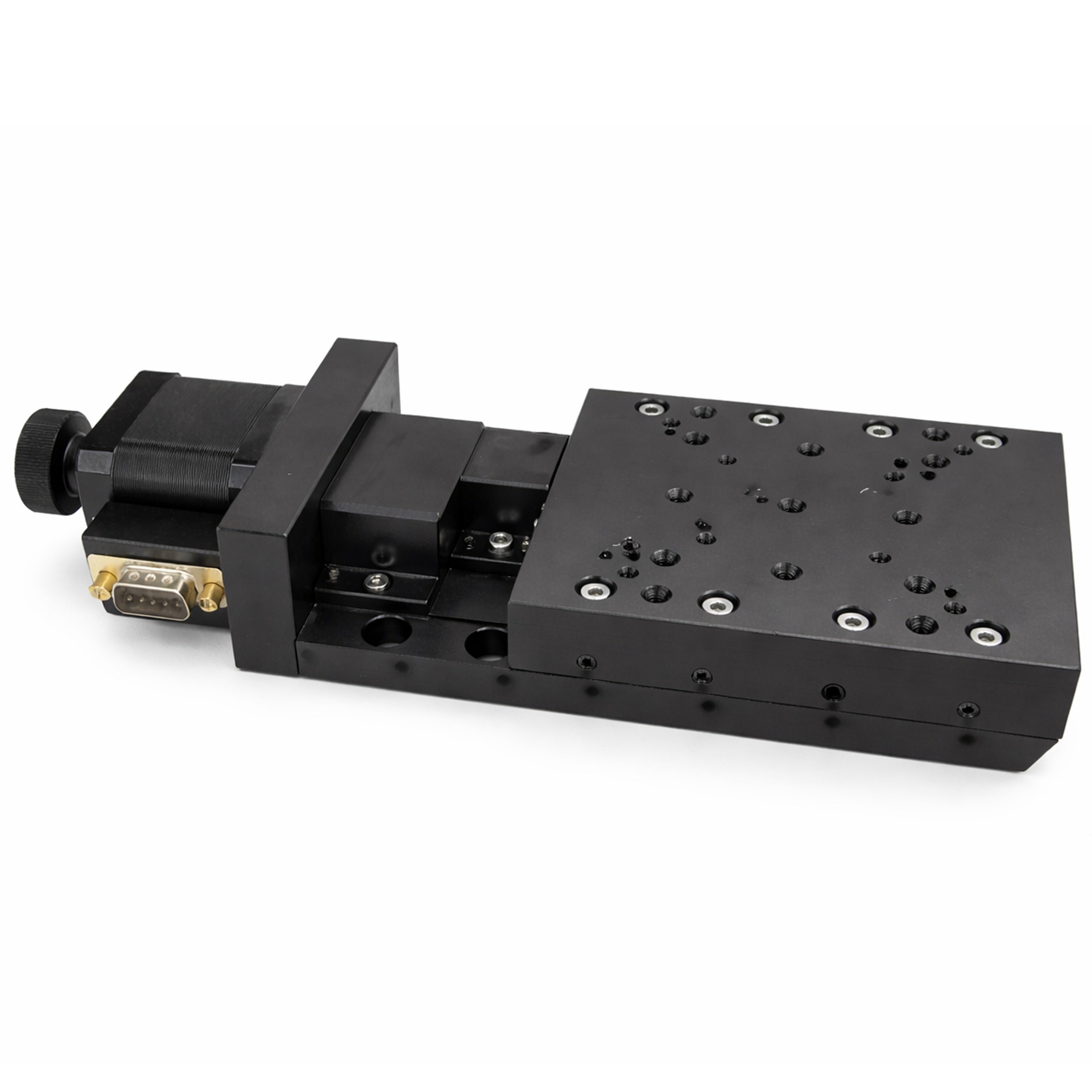

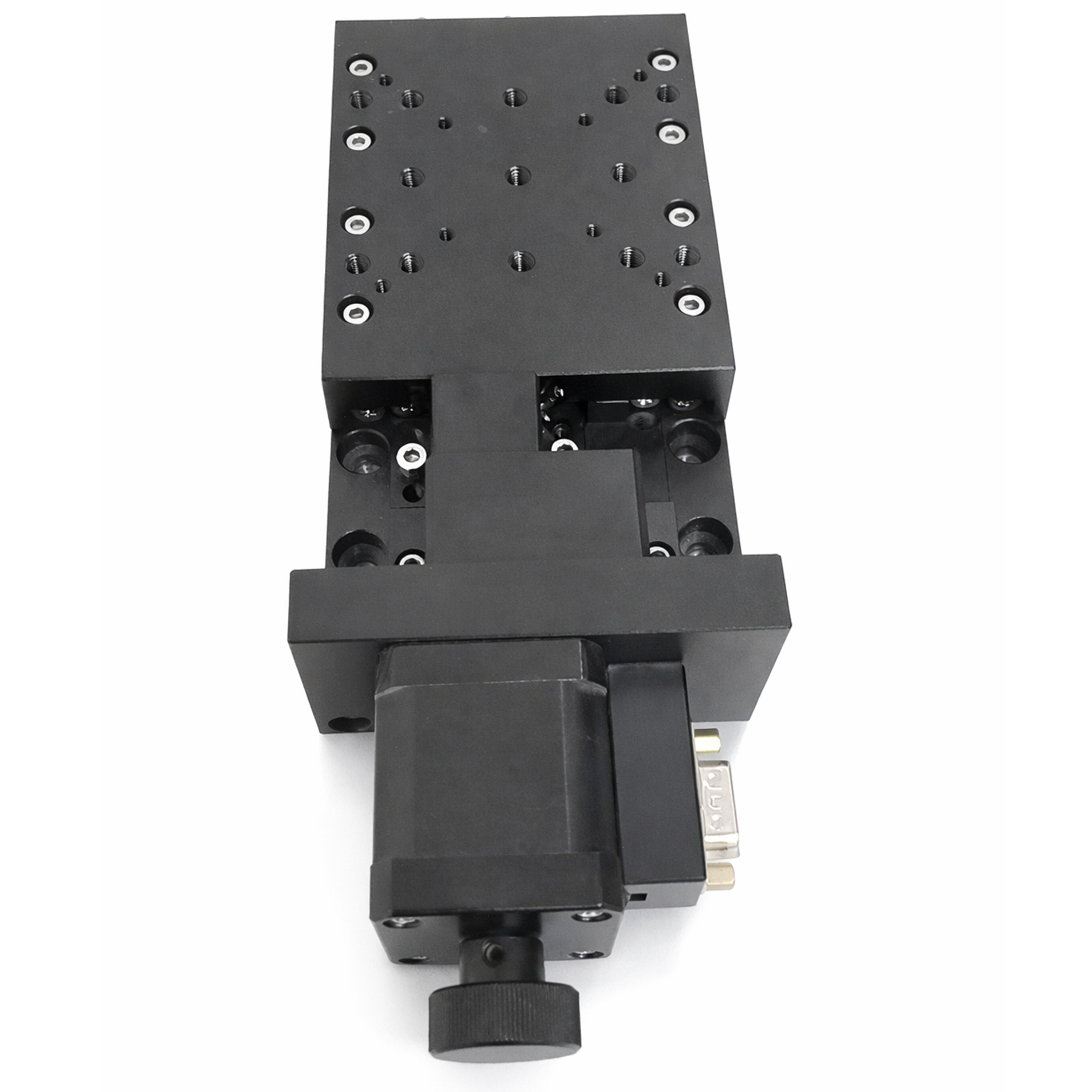

MSE PRO Stepper Motorized Aluminum Alloy Translation Stages, Travel 15mm, 65×65mm
Introduction
MSE PRO Stepper Motorized Aluminum Alloy Translation Stages,15 mm Travel, 65 × 65 mm are designed for precise, automated linear positioning with excellent accuracy and repeatability. Equipped with a stepper motor, these stages provide precise control of position, speed, and motion, making them ideal for applications in photonics, microscopy, semiconductor testing, and automation systems.
Constructed from durable aluminum alloy with a black-anodized finish, the stages offer robust performance, low backlash, and smooth motion even under demanding conditions. Their compact design and standardized mounting platform allow easy integration into single-axis or multi-axis systems, enabling accurate alignment and positioning for research, manufacturing, and inspection applications.
Key Features
- Non-contact direct-drive system ensures ultraprecision motion with high dynamics and reliability
- Extra-large, high-efficiency linear motor minimizes heat generation
- Ironless moving coil has no cogging for ultra smooth velocity control
- Ultra-quiet anti-creep crossed roller bearings assure ripple-free motion without cage migration
- High precision glass scale encoder provides accurate position feedback
- Sub-nm resolution with low interpolation error for outstanding speed stability and motion sensitivity
- No moving cables inside the stage, reduced particle generation and improved reliability.
Specification
| Parameter | Specification |
| Model | OP0067942 |
| Travel Range | 15 mm |
| Table Size | 65 x 65 mm |
| Screw Spec. | Grinding Screw (0.1 mm) |
| Travel Guide | Crossed Rollers |
| Stepper Motor | 28 stepper motor |
| Base Material | Aluminum Alloy |
| Surface Treatment | Black-anodized |
| Load Capacity | 10 kg |
| Weight | 1.2 kg |
| Resolution | 20 μ/pulse (non microstep); 2.5 μ/pulse (20 microstep) |
| Maximum Speed | 10 mm/sec |
| Repeatability | 25 μ |
| Accessories | Limit Switch & Origin Sensor |
| Optional | Grating; Servo Motor |
MSE Supplies can offer a variety of optomechanical components, with different size, freedom of regulation and optical elements combination. Please contact us for customization or bulk orders.
