MSE PRO Smart Filling System
SKU: LS0374
MSE PRO™ Smart Filling System

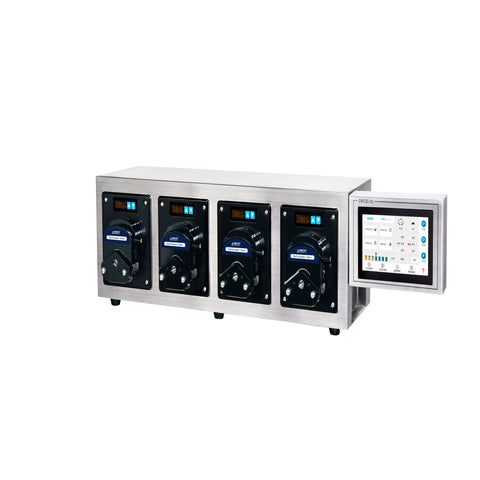

MSE PRO LS0374 Smart Filling System is an intelligent filling peristaltic pump and controller developed by MSE Supplies. The standard drive unit of the system is 4 channels (2 3 4 5 6) optional and can be expanded to 32 channels at most. It can be installed with DG series, YZ series, TX series, LP15-6 and other pump heads, suitable for various specifications of hoses, providing customers with a variety of options to meet a variety of applications. The main controller adopts a 7-inch or 10-inch industrial touch screen, the operation is simple, clear and easy to use, and the functions are rich and easy to use.
Order Peristaltic Pump Tubing Through MSE Supplies HERE!
Brand: MSE PRO™
Features
Industrial touch screen
The main controller adopts 7 inches or 10 Inches Industrial touch screen, easy to operate
Scalable
The standard drive unit is 4 channels, Expandable up to 32 channels by stacking
Stainless steel housing
The main body adopts stainless steel shell High strength, corrosion resistance, easy to clean
No bottle and stop filling
When receiving a bottle shortage signal, the system will stop the filling operation of the channel
Error alarm
Improved system security
Multiple operation methods
It has three operation modes: internal control, external control and communication control to meet different application requirements
Specifications:
| Model | Display Method | Control | Filling Accuracy | Control Mode | Fine-Tuning range | Max Speed (rpm) | Pump Head | Max Flow (mL/min) | Weight (kg) |
| LS0374 | 7 inches/10 inches Industrial touch screen +4-digit LED digital display |
Sub-control / Central control |
<±2% | Offline mode / Online mode |
80%-120% | 600 | DG series | 4560 | Master-1.35 Single group system - 16.85 |
| YZ1515x | |||||||||
| YZ2515x | |||||||||
| YZ15m/YZ15ma | |||||||||
| YZ25m/YZ25ma | |||||||||
| 400 | TX315 | ||||||||
| TX325 | |||||||||
| 600 | LP15-6 |
Filling application and performance index:
| Filling volume | 0.1ml-9999.99mL/time | Display adjustment resolution: 0.01mL |
| Filling time | 0.1-9999.9s/time | Display adjustment resolution: 0.1s |
| Intervals | 0.2-9999.9s/time | Display adjustment resolution: 0.1s |
| Filling times | 0-9999 times | "0" means infinite loop |
| Suction angle | 0-7200° | Display adjustment resolution: 1° |
| Suction speed | 0-300rpm | Display adjustment resolution: 1rpm |
| Suction back delay | 0s-60s | Display adjustment resolution: 0.1s |
| Channels | 4 channels/unit (standard)2 3 4 5 6 channels/unit (optional) | Expandable up to 32 channels |
