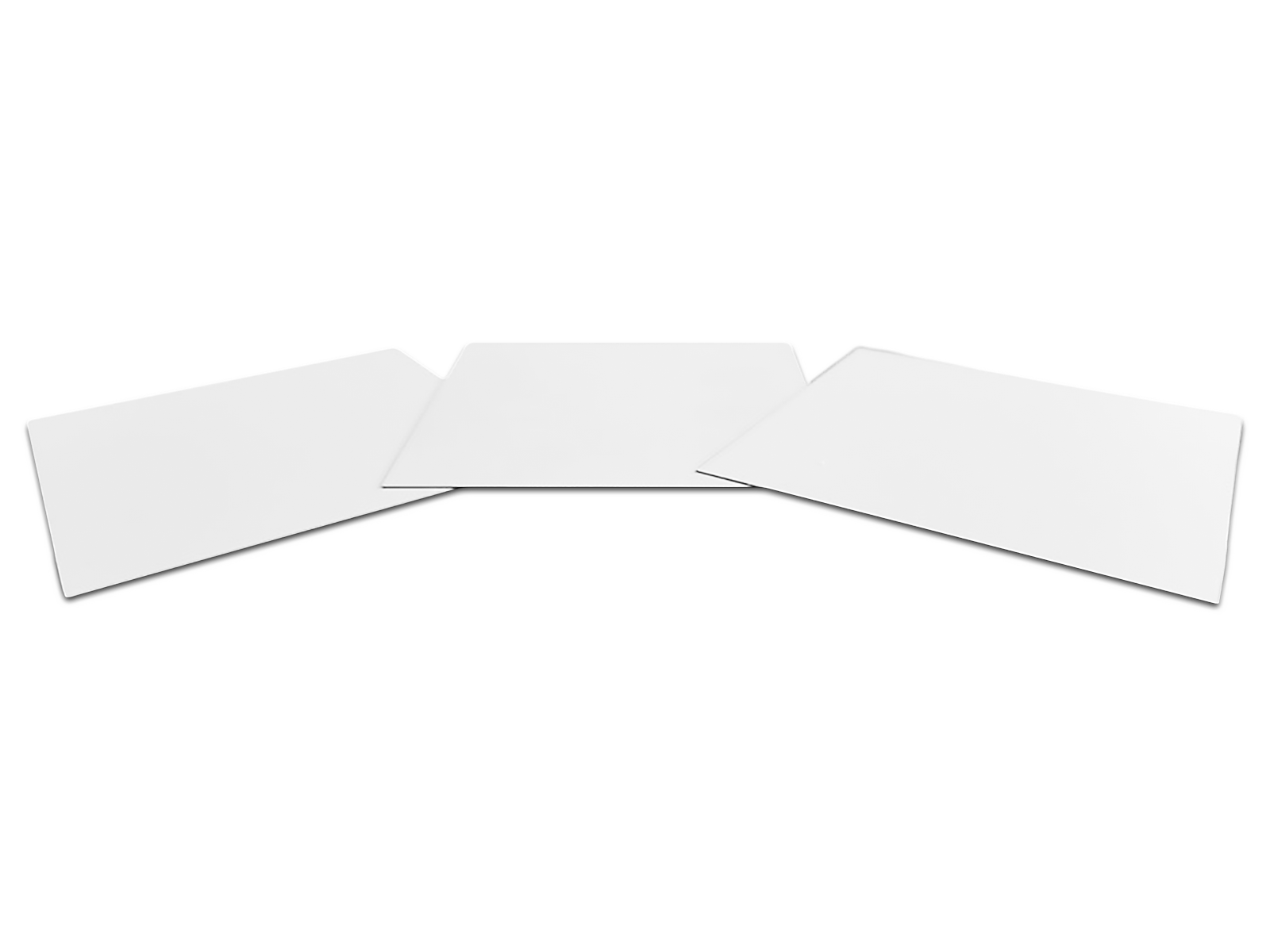

MSE PRO Silicon Nitride (Si<sub>3</sub>N<sub>4</sub>) Ceramic Substrate (138mm x 190mm), Engineered Ceramics, MSE Supplies LLC, MSE Supplies
MSE PRO Silicon Nitride (Si<sub>3</sub>N<sub>4</sub>) Ceramic Substrate (138mm x 190mm), Engineered Ceramics, MSE Supplies LLC, MSE Supplies
MSE Supplies LLC

MSE PRO Silicon Nitride (Si3N4) Ceramic Substrate (138mm x 190mm)

Order upon Request
SKU: WA2027
$ 252.95

Still have questions? Ask our experts!

Email +1 (520) 789-6673

MSE PRO™ Silicon Nitride (Si3N4) Ceramic Substrate (138mm x 190mm)

MSE Supplies offers high quality silicon nitride (Si3N4) substrate made in Japan. It's valued for their exceptional mechanical, thermal, and chemical stability, making them suitable for high-stress and high-temperature applications. It's the optimal solution for applications where other ceramic materials prove to be too weak to handle mechanical stress or thermal shocks.

Please contact us for customization or bulk order.

Specifications:

SKU# WA2023
Dimension (LxW) 138 mm x 190 mm
Thickness 0.32 mm
Thermal Conductivity 24 W/m.K
Vickers Hardness 15 GPa
Bulk Density 3.2 g/cm³
Flexural Strength 800 MPa
Volume Resistivity ＞1014 Ω･cm

References:

1. Philipp H R. Silicon nitride (Si3N4)(noncrystalline)[M]//Handbook of optical constants of solids. Academic Press, 1997: 771-774.

2. Dow H S, Kim W S, Lee J W. Thermal and electrical properties of silicon nitride substrates[J]. AIP Advances, 2017, 7(9).
