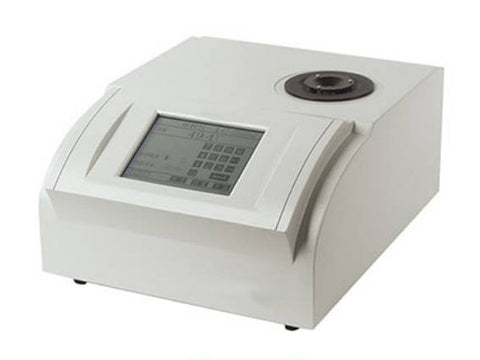

MSE PRO RT~400°C Digital Melting Point Apparatus
SKU: BB2173
MSE PRO™ RT~400°C Digital Melting Point Apparatus
The MSE PRO Digital Melting Point Tester is a high-precision laboratory instrument designed for accurate melting point determination in pharmaceutical, chemical, and material science applications. Equipped with PID & PWM controllers, an LCD touchscreen, and automatic data recording, it ensures consistent and reliable results for quality control and research laboratories.
- Advanced PID & PWM Control – Ensures precise and stable temperature regulation, minimizing fluctuations for high-accuracy melting point detection.
- High-Resolution LCD Touchscreen – Provides an intuitive user interface for easy operation and real-time monitoring of temperature curves.
- USB & RS232 Connectivity – Facilitates seamless data transfer for documentation, analysis, and integration with laboratory information systems.
- Automated Melting Curve Recording – Enhances accuracy and repeatability by automatically capturing detailed temperature transition data.
- Intelligent Data Processing – Automatically calculates initial and final melting points, providing consistent and reproducible results with minimal user intervention.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
MSE Supplies offers a variety of Melting Point Apparatus. Please contact us for more information.
Specifications:
| SKU# | BB2173 |
| Measuring Range | RT~400°C |
| Resolution | 0.1°C |
| Linear heating-up Rate | 0.1°C~20°C/min |
| Temperature Accuracy | 0.4°C (≤200°C), 0.7°C(>200°C) |
| Repeatability | 0.3°C |
| Capillary Size | φ1.4mm(outside diameter), φ1.0mm(inside diameter), 90mm (height) |
| Sample Loading Height | 3mm |
| Data Storage | 1000 sets |
| Printer | RD TH32C(Optional) |
| Power Supply | AC110/220V |
| External Size(W*D*H) | 360*290*270 mm |
