Porous Titanium Foam for Battery and Supercapacitor Research (100 mm L x 100 mm W x 0.6 mm T), MSE Supplies

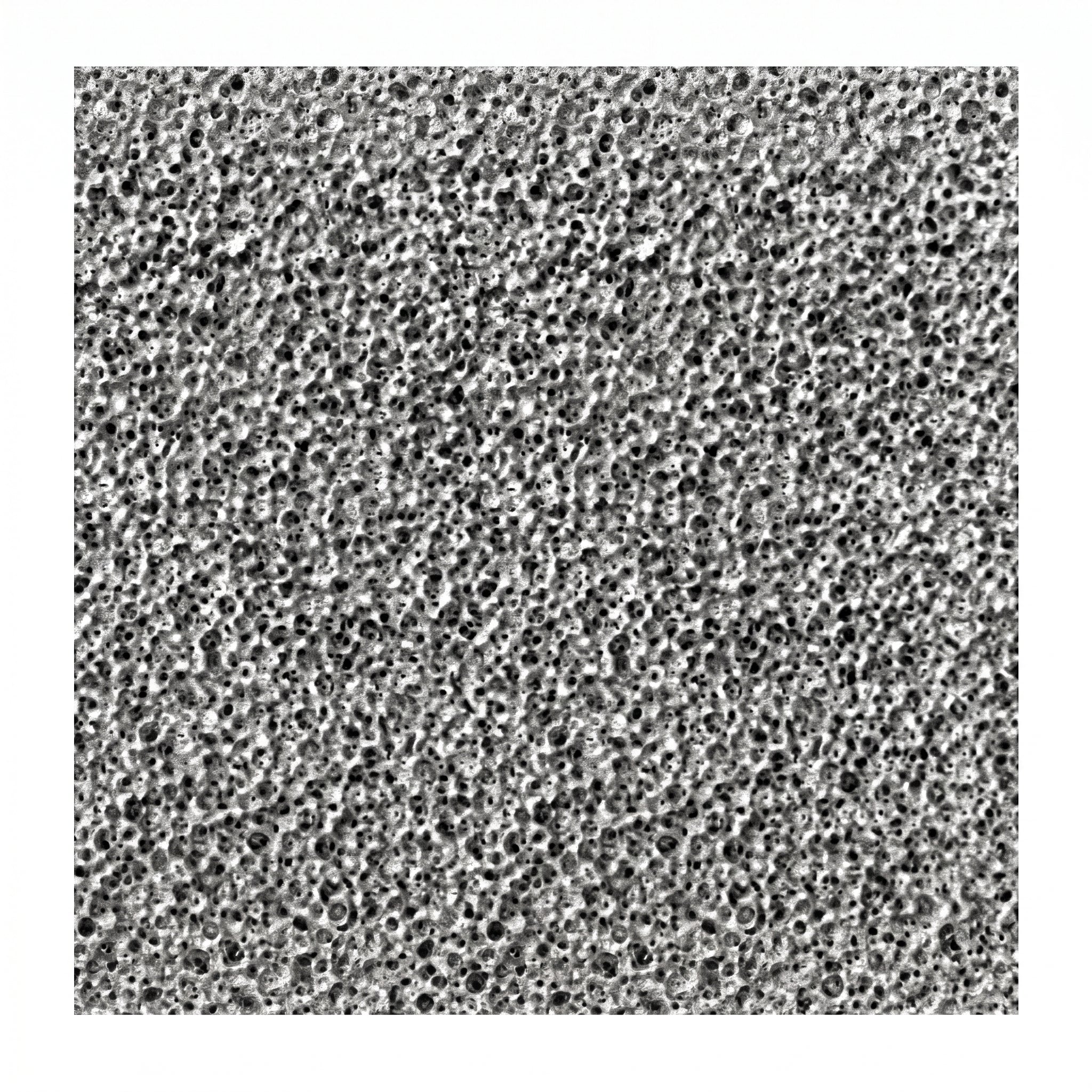

MSE PRO Porous Titanium Foam for Battery and Supercapacitor Research (100 mm L x 100 mm W x 0.6 mm T)

  • $ 56900

Product details:

Porous Titanium foam is used as substrate for battery and supercapacitor application. Compared with copper and nickel foam, it has better corrosion resistance to electrolytes. It is used as substrate for in-situ growth of hierarchical electrode material which is beneficial from its porous structure. It is also used in pharmaceutical industry, water treatment industry, food industry, biological engineering, chemical industry, petrochemical industry, metallurgical industry and gas purification field.

Specifications
Product SKU# BR0134
Pack Size 1 piece

Material

Titanium ≥99.99%
Density 0.5~1.0 g/cm3

Dimensions

100 mm X 100 mm or customized

Thickness

0.6 mm (can be customized from 0.56 to 2.8 mm)
Porosity

30~50%
Net Weight ~20 g
Pore Size
 10~160 um
Compressive strength

4~6 MPa
Filtration efficiency

98%



References:

 1. Sputtered Titanium Nitride Films on Titanium Foam Substrates as Electrodes for High‐Power Electrochemical Capacitors, ChemElectroChem 2018 , 5 , 2199.

 2. PPy modified titanium foam electrode with high performance for supercapacitor, Eur. Polym. J., Volume 49, Issue 11, November 2013, Pages 3651-3656
