Porous Graphene Foam (50 mm L x 50 mm W x 1.2 mm T) for Battery, Sensor and Supercapacitor Research - MSE Supplies LLC

MSE PRO Porous Graphene Foam (50 x 50 x 1.2 mm) for Battery, Sensor and Supercapacitor Research

$ 479⁹⁵
Save $ 58⁰⁰

Product details:

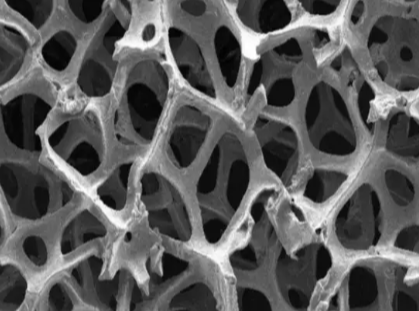

Graphene Foam is made via the chemical vapor deposition (CVD) process. Graphene foam is a new class of ultra-light, highly conductive graphene-based materials with exceptional mechanical strength, flexibility, and elasticity. Graphene foam is widely used as porous substrate / support for sensor, EMI shielding, solar–thermal energy conversion, battery and supercapacitor.

The size and thickness can be customized upon request. Please contact us at sales@msesupplies.com to discuss your special need.

Specifications of Porous Graphene Foam
Product SKU#	BR0173
Pack Size	1 piece
Material	Carbon (With Nickel support)
Size	50 mm x 50 mm (Customizable)
Thickness	1.2 mm (Customizable)
Density	4 mg/cm³
Pore size	580 um
Surface density	0.5-0.9 mg/cm²
Standard PPI	110
Packing	In sealed membrane box

References:

1. High Sensitivity Gas Detection Using a Macroscopic Three-Dimensional Graphene Foam Network, Sci. Rep., 1, 166 (2011)

2. Lightweight and Flexible Graphene Foam Composites for High‐Performance Electromagnetic Interference Shielding, Adv. Mater., 25: 1296-1300

3. Hierarchical Graphene Foam for Efficient Omnidirectional Solar–Thermal Energy Conversion, Adv. Mater. 2017, 29, 1702590

4. 3D Graphene‐Foam–Reduced‐Graphene‐Oxide Hybrid Nested Hierarchical Networks for High‐Performance Li–S Batteries, Adv. Mater., 28: 1603-1609

5. Flexible self-charging supercapacitor based on graphene-Ag-3D graphene foam electrodes, Nano Energy, 2018, 51, 604-612
