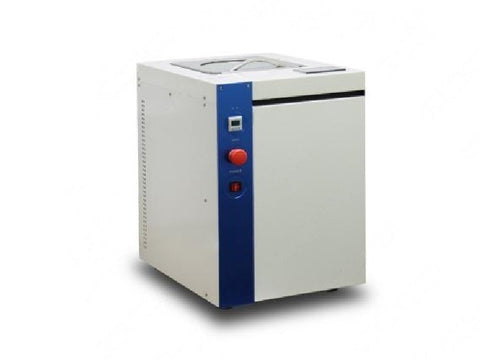

MSE PRO Planetary Vacuum Centrifugal Mixing Defoaming Machine
SKU: BR0389
MSE PRO™ Planetary Vacuum Centrifugal Mixing Defoaming Machine
MSE Supplies presents the Planetary Vacuum Centrifugal Mixing Defoaming Machine, designed for efficient mixing of diverse liquid and powder materials. Ideal for substances like battery powder or slurry, carbon nanotubes, nano powders, conductive ceramics, oxide powders, and metal powders, this machine operates under vacuum conditions to enhance sample uniformity and improve experimental outcomes.
MSE Supplies is a US-based leading supplier of battery research materials and equipment with thousands of customers worldwide.
| SKU# | BR0389 |
| Standard Container | 300ml × 2, size (Φ77 × H85mm) |
| Optional Container Sizes | 10ml, 30ml, 50ml, 100ml (available upon request) |
| Maximum Capacity | 300g × 2 |
| Working Principle | Planetary Gravity (Rotation/Rotation = 0.6 fixed) Stirring / Defoaming |
| Rotation Speed | Stepless speed regulation (300~2000rpm); arbitrary input, accuracy 1rpm |
| Rotation Ratio | 0.6 times of the rotational speed |
| Maximum Speed | 2000rpm |
| Drive Mode | 750W motor |
| Vacuum Flow | 165L/min |
| Vacuum Pressure | -98Kpa, accuracy 0.1KPa, vacuum delay, adjustable vacuum |
| Parameter Storage Capacity | 6 groups |
| Balance Adjustment | Double-side counterweight balance adjustment |
| Setting Time | (0~600s) / 3 sections (accuracy 1s, 200s/section) |
| Control System | Double closed-loop PLC control, Chinese interface, touch screen operation |
| Lubrication System | Cup and sleeve splash-proof structure, passive lubrication, prevents bearing wear |
| Main Alarm Functions | Loss of Balance / Upper Cover Not Closed / Overload |
| Main Safety Functions | Automatic stop on error / Automatic locking of top cover during operation |
| Transmission Mode | Gear drive |
| Power Supply Voltage | AC110V/60Hz |
| Total Power | 1.35KW |
| Exterior Dimensions | 400(W) × 590(H) × 580(D) mm (excluding protruding parts) |
| Machine Weight | 92Kg |
