MSE PRO Off-Axis Parabolic Mirrors
SKU: CS0050
To better serve you, we would like to discuss your specific requirement.
Please Contact Us for a quote.
-Request a Quote
MSE supplies customized Off-Axis Parabolic Mirrors with different materials, dimension, surface qualify, etc.

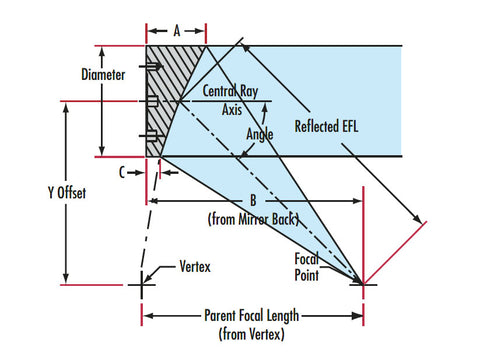

Parabolic Mirrors can turn a spot source into collimate beam or focusing the collimate beam into a spot. The off-axis design prevents the beam being blocked. They are widely used in spectrometers, interferometers, astronomical optical instruments, spectrum analyzers, and in beam expanders and beam collimators.
MSE Supplies can offer a variant of optical elements, with different materials, size, surface quality and coating. Please contact us for customization or bulk orders.
Technical Data:
| Parameters | Value |
| Material |
|
| Size (mm) | 12.7-50.8 |
| Size Tolerance (mm) | +0/-0.01~+0/-0.1 |
| Thickness Tolerance (mm) | ±0.01~±0.1 |
| Focal Length Tolerance (%) | ±1 |
| Irregularity (P-V) @ 632.8nm | λ/4~2λ |
| Surface Quality | 40/20~80/50 |
| Off-Set Angle (°) | 90° |
| Clear Aperture (%) | >90 |
| Bevel | Protective bevel as needed |
| Coating | Uncoated, AR, BBAR |
