MSE PRO™ Octo 2×2 Bypass Fiber Optical Switch

MSE Supplies offers Octo 2×2 Bypass Fiber Optical Switch. The switch integrated 4 dual 2×2 bypass switches in a single compact format. It is designed for 40G/100G transceiver bypass application. The device connects optical channels by redirecting incoming optical signals into selected output fibers. Latching operation preserves the selected optical path after the drive signal has been removed. The switch has integrated electrical position sensors. This novel design significantly reduces moving part position sensitivity, offering unprecedented high stability as well as an unmatched low cost. The switch is bidirectional.

• Compact design, Miniature size
• Short switching time
• Bi-directionalLow optical distortions
• Low cross talk, Low Insertion Loss

• Wide operating wavelength Range

Parameters

Parameters	Unit	Specifications
Operating Wavelength	nm	1260~1620(SM)、850(MM)
Insertion Loss	dB	≤1.1
Wavelength Dependent Loss	dB	≤0.25
Polarization Dependent Loss	dB	≤0.05
Temperature Dependent Loss	dB	≤0.25
Return Loss	dB	SM≥50 MM≥30
Cross Talk	dB	SM≥55 MM≥50
Switch Time	ms	≤8
Repeatability	dB	≤±0.02
Durability	times	≥107
Operating Voltage	V	5
Switch Type		Non-Latching/Latching
Operating Temperature	℃	－20~＋70
Storage Temperature	℃	－40~＋85
Optical Power	mW	≤500
Dimension	mm	37.2L×21.5W×13.2H

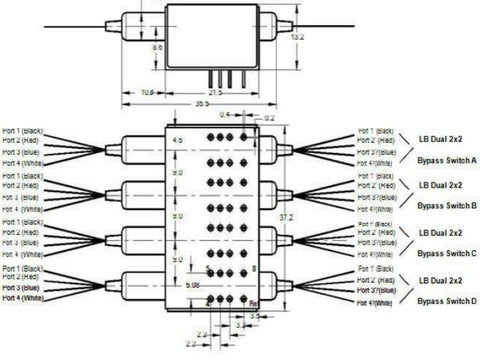

Pins

Ordering Information

Type	Mode	Wavelength	Voltage Type	Control Model	Fiber Type	Fiber Diameter	Fiber Length	Connector
OCTO-2x2B	S=SM M=MM	85=850nm 13/15=1310/1550nm X=Others	3=3V 5=5V	L=Latching N=Non- Latching	5=50/125 6=62.5/125 9=9/125 X=Others	25=250um 90=900um 20=2.0mm 30=3.0mm X=Others	1=1m 2=1.5m X=Others	0=None 1=FC/PC 2=FC/APC 3=SC/PC 4=SC/APC 5=ST/PC 6=ST/APC 7=LC/PC 8=LC/APC X=Others

MSE Supplies can offer a variety of optomechanical components, with different size, freedom of regulation and optical elements combination. Please contact us for customization or bulk orders.
