MSE PRO Nickel woven mesh 5 pcs

Introduction

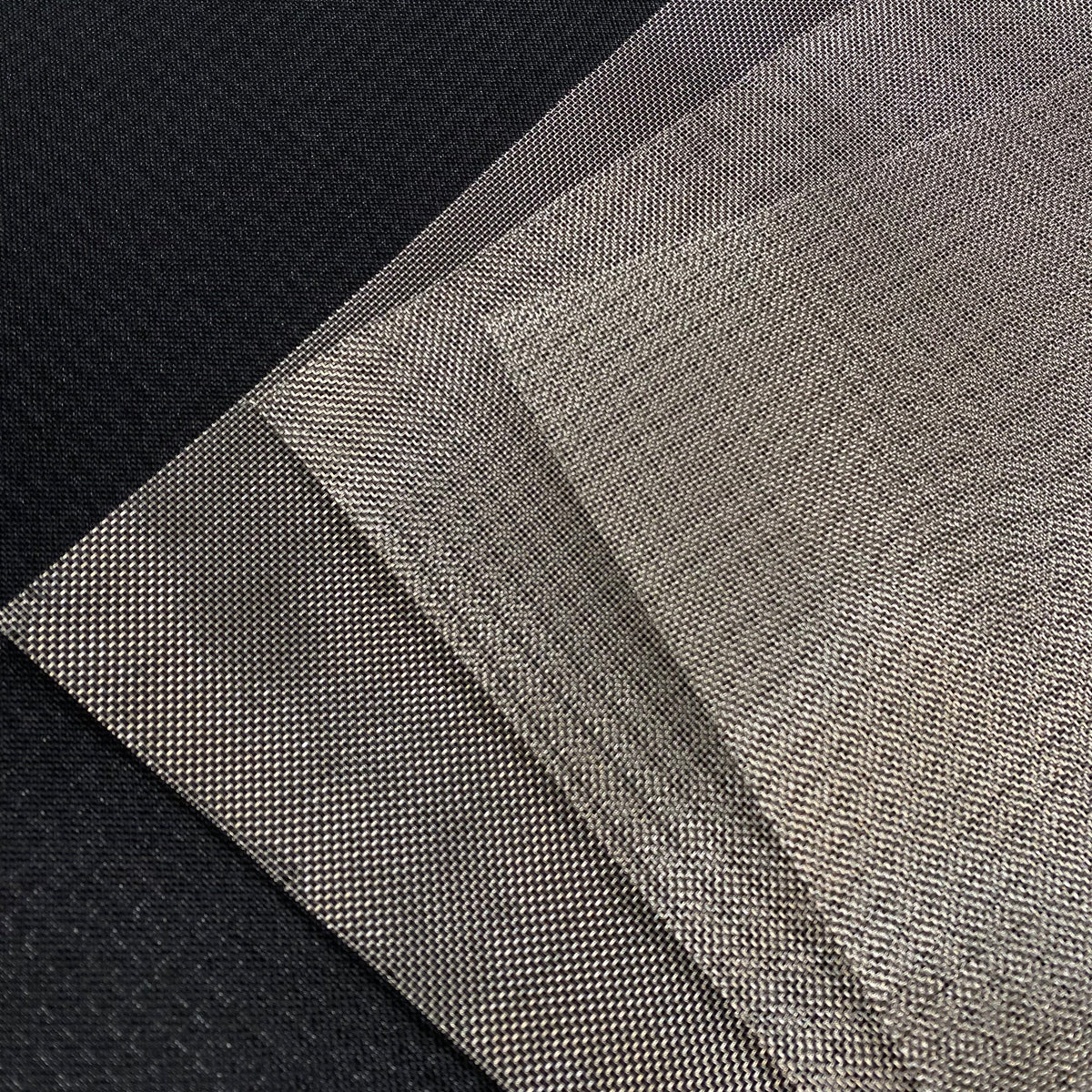

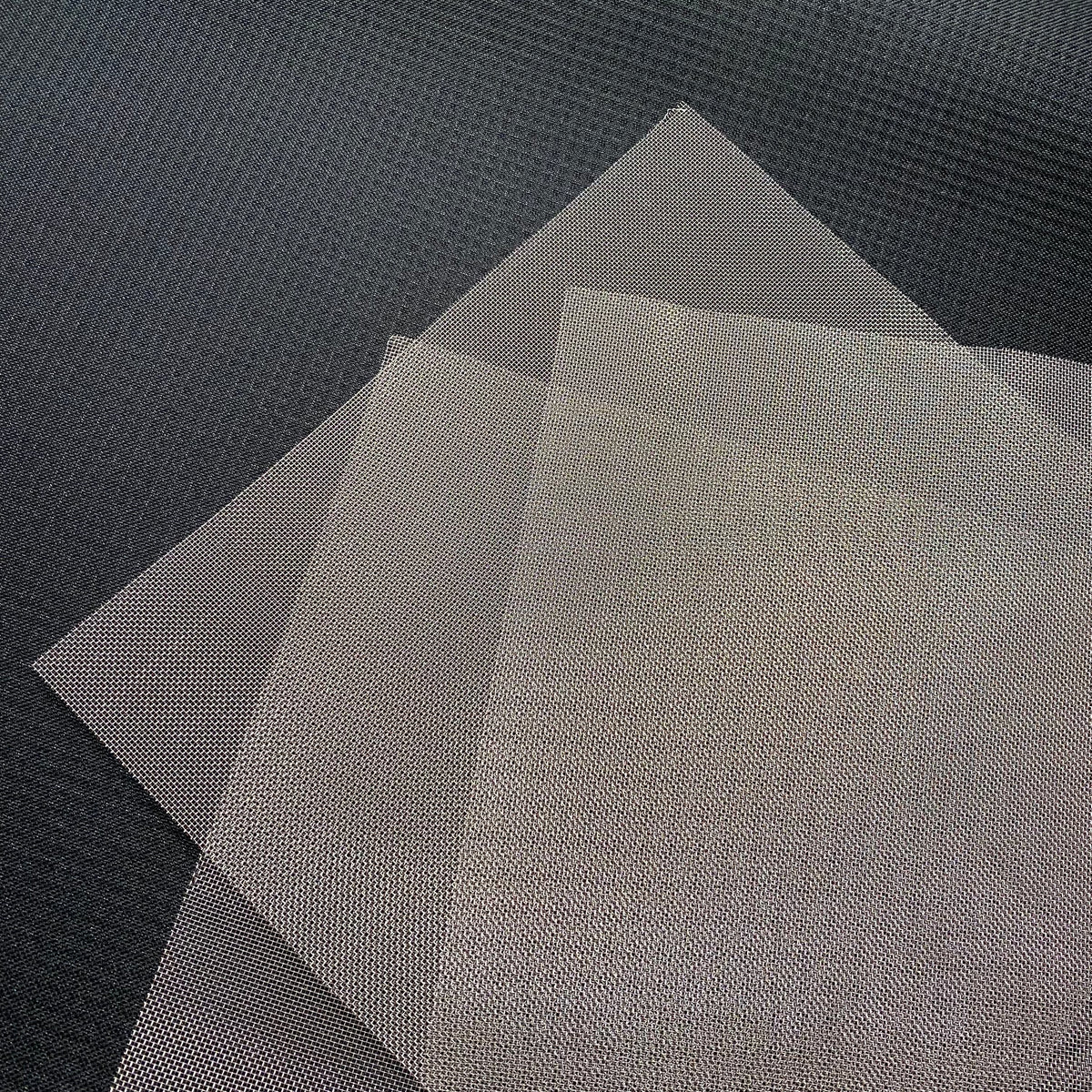

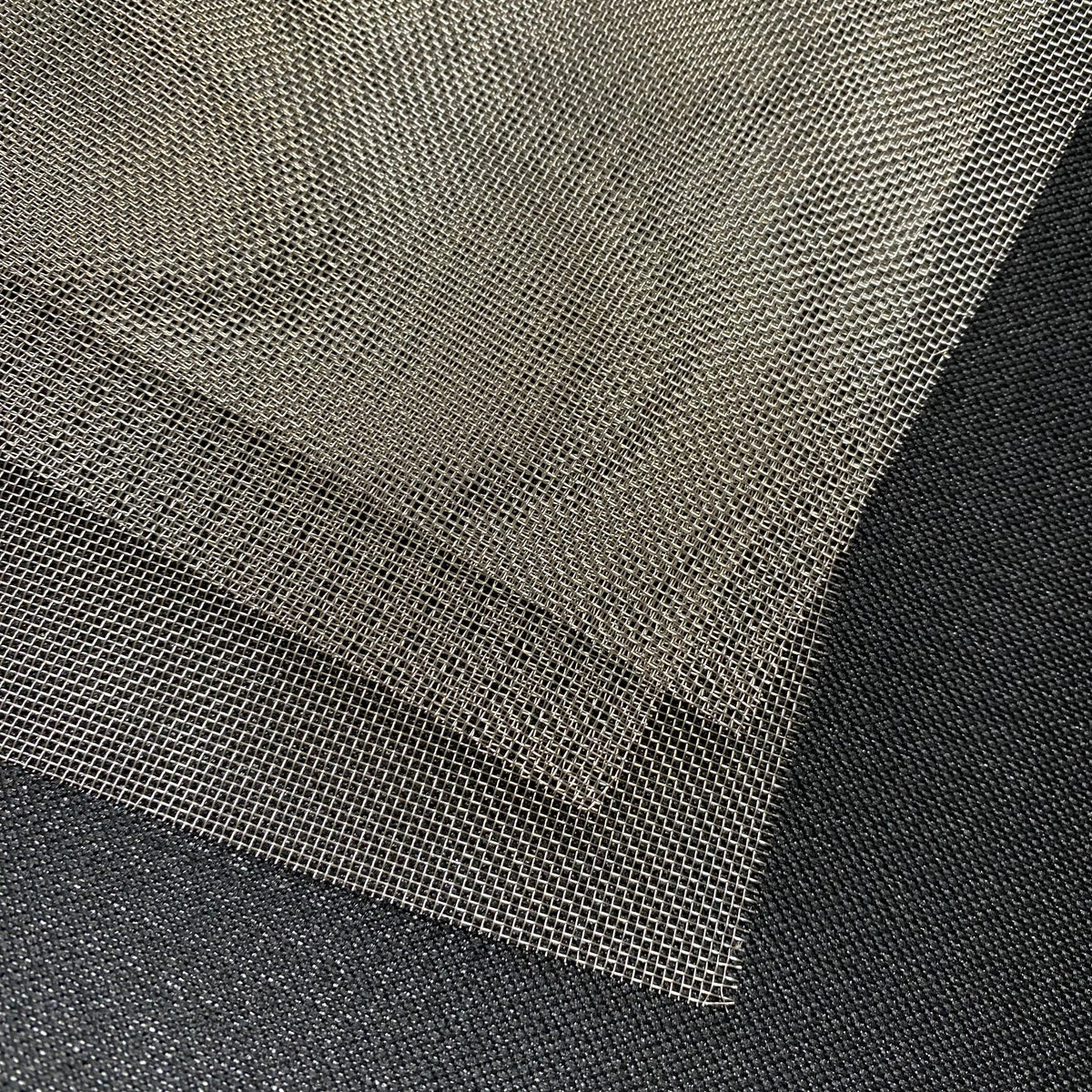

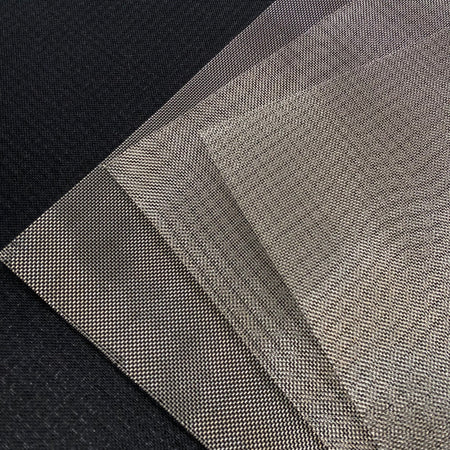

The 80-mesh N6 nickel woven mesh is a high-purity nickel material designed for hybrid acid–alkaline water electrolysis and other electrochemical applications. Made from N6 nickel wire with a purity of ≥99.5%, it features a plain-weave structure with uniform square openings, providing reliable electrical conductivity, efficient electrolyte flow, and stable mechanical support. It is suitable for electrode substrates, catalytic coating carriers, gas diffusion layers, and current collectors.

Key Features

• High-Purity Nickel: Made from N6 nickel wire with a purity of ≥99.5%.

• Uniform 80-Mesh Structure: Plain weave with regular square openings for consistent porosity and electrolyte flow.

• Excellent Electrical Conductivity: Supports stable current distribution across the electrode surface.

• Corrosion Resistance: Suitable for alkaline and neutral electrochemical environments; acid compatibility depends on operating conditions.

• High-Temperature Stability: Maintains physical stability at temperatures up to 1200°C, depending on the environment.

• Mechanical Strength: Provides a stable structure for electrolysis and electrode assembly.

• Versatile Applications: Suitable for water electrolyzer electrodes, catalytic coating supports, gas diffusion layers, and current collectors.
