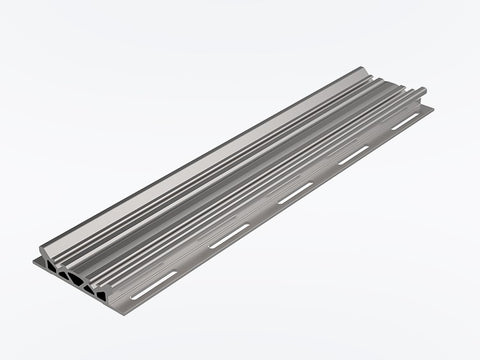

MSE PRO Natural Anodic Oxidation One-Sided Optical Construction Guides (25.5 x 119 mm)

MSE PRO™ Natural Anodic Oxidation One-Sided Optical Construction Guides (25.5 x 119 mm)

MSE Supplies offers Natural Anodic Oxidation One-Sided Optical Construction Guides (25.5 x 119 mm). The 95 mm construction guides are designed with outer wings along their edges, which forms four effective dovetails at each end face. In addition, two paralleled T-grooves are provided with an interval of 46.0 mm on each side of the guides. With these features, standard optomechanical elements can be directly mounted onto the guides by using guide carriages, guide plates and T-nuts. In addition, the outer wings are M6-tapped in eight locations. These threaded holes are compatible with our leveling feet and base plates. They are all designed to connect guides with each other, or locate guide assemblies on a flat surface.
