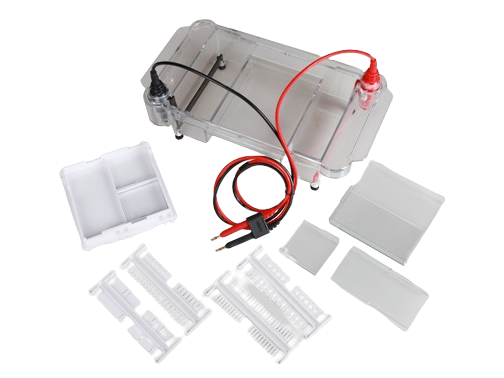

MSE PRO™ Multifunctional Horizontal Electrophoresis Cell
MSE PRO™ Multifunctional Horizontal Electrophoresis Cell is designed for rapid agarose gel electrophoresis of small sample volumes. The unit supports various gel tray sizes, providing flexibility to accommodate different sample requirements.
- Multi-Purpose Gel Casting System: Equipped with a versatile gel casting device that accommodates different gel tray sizes, making it a cost-effective and space-saving solution for laboratories.
- High-Temperature Resistant Casting Tray: The gel casting system is made from high-temperature resistant material (135°C) through injection molding, ensuring durability and deformation resistance.
-
Centralized Platform Design: The electrophoresis unit features a horizontal platform with a vertically fixed reference, allowing easy placement of both small and large gels in the center of the electrophoresis tank.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
MSE Supplies offers a variety of Electrophoresis Cell. Please contact us for more information.
Applications:
Ideal for nucleic acid electrophoresis separation, genotyping, and DNA recovery.
Specifications:
| SKU# | LS0562 |
|
Gel Area |
120 x 120 mm |
|
Gel Tray Sizes |
60 x 60 mm / 60 x 120 mm / 120 x 60 mm / 120 x 120 mm |
| Sample Combs | 3-well / 13-well / 18-well / 25-well combs |
| Maximum Voltage | 500 V |
| Maximum Buffer Volume | 1000 mL |
| Size (L x W x H) | 310 x 175 x 80 mm |
| Compatible Power Supply | LS0550, LS0551, LS0552, LS0553 |
Frequently Asked Questions
What is a horizontal electrophoresis cell used for?
Running agarose gels to separate and check nucleic acids such as DNA and RNA by size.
Does it support different gel sizes?
Yes. The casting system takes several gel tray sizes, so one unit covers small and larger gels.
How durable is the casting tray?
The casting system is injection molded from a material that withstands 135 C, so it resists warping when you pour hot agarose.
