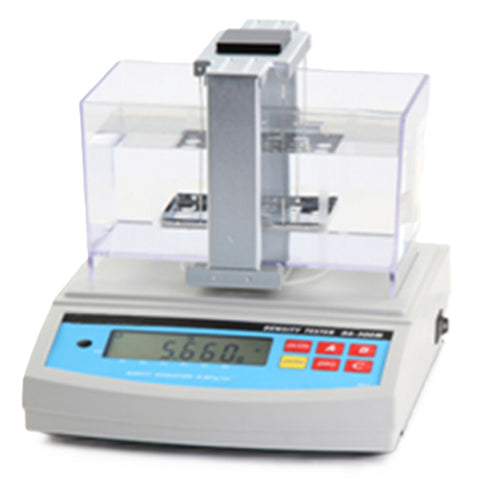

MSE PRO Multifunctional Density Tester，110V/60Hz
SKU: MA0066117
MSE PRO™ Multifunctional Density Tester，110V/60Hz
Features:
- Free-Flip Design for Rapid Testing: Enables quick and easy operation without the need to open the cover. This streamlined process is more efficient and better suited for frequent on-site testing.
- Material R&D Support: Displays the primary material content percentage in mixtures, ideal for research and development of new materials.
- Wide Porous Material Application: Capable of measuring various porous products such as powder metallurgy parts, magnetic materials, ceramics, refractory materials, friction materials, precious metals, and similar substances.
- Pass/Fail Automatic Judgment: Automatically determines if a sample passes or fails specifications and provides an alarm prompt.
- Advanced Automated Features: Includes fully automatic zero tracking, buzzer alerts, and overload alarms.
- Flexible Liquid Media: Uses water as the standard medium, but is also compatible with other liquid mediums for measurement.
- Comprehensive Density Settings: Features include actual water temperature setting, measurable medium density setting, and water-proofing agent density setting.
- Precision Compensation & Limits: Equipped with air buoyancy compensation setting and density upper/lower limit setting functions.
- Robust Hardware Construction: Features a one-piece, large-capacity professional measurement platform and a highly transparent tank, offering wear resistance, impact resistance, and corrosion resistance.
- Dedicated Accessory: Comes with a specially designed wind and dust cover for easy assembly and durable use.
- Data Connectivity: Includes an RS-232C interface for easy connection to PCs and printers. The DE-40 Printer is available as an optional accessory for hardcopy data output
Specifications:
| Model | MA0066117 | |
| Capacity | 0.005~300g | |
| Density Resolution | 0.001 g/cm³ | |
| Density Range | 0.001~99.999g/cm³ | |
| Measurement types | Various Porous Materials: Examples: Powder metallurgy, magnetic materials, advanced ceramics, friction materials refractory materials, mica products, wood and timber, engineering construction, sponge industry, cement and products, graphite and carbon products, coal and rocks, and similar porous products. Various Non-Water-Absorbent Materials: Examples: Metal products, rubber products, plastic products, plastic pellets, films, buoys, powders, foams, viscous substances, fasteners, pipes, sheets, and similar non-absorbent products. Covers all solid materials in the fields of both water-absorbent porous substances and non-water-absorbent substances |
|
| Measurement mode | Archimedes' Principle: A. Standard Method for Solids B. Saturated Method for Porous Materials C. Wax-Coated Method for Porous Materials Constant Volume Method E. DIN Wear and Expansion Rate Method Mass and Volume Change Rate Method G. Oil Content Ratio Method for Oil-Impregnated Bearings |
|
| Measuring Time | About 5s | |
| Memory Mode | Two-step memory method | |
| Density Measurement Rack | Precision Aluminum Alloy Die-Cast Specific Gravity Measurement Holder (Dimensions: 13.5cm (L) x 5cm (W) x 11.6cm (H)) |
|
| Measuring Sink | One-Piece Injection-Molded Transparent Professional Measurement Tank (Dimensions: 16.9cm (L) x 9.8cm (W) x 8.3cm (H)) |
|
| Result Display | Density, Specific Gravity, Apparent Density, Bulk Density, Wet Density; Total Porosity, Effective Porosity, Open Pore Volume, Total Volume; Oil Content Rate, Water Absorption Rate; Volume Wear (DIN), ARI Wear Index, Expansion Rate, Mass Change Rate, Volume Change Rate, etc. |
|
| Parameter Setting | Water Temperature Setting, Liquid Medium Density Setting Parameter Setting Water-Proofing Agent Density Setting, Upper/Lower Limit Setting Air Buoyancy Compensation Setting Reference Rubber Setting: Fixed Weight Loss Value, Weight Loss Value, Density |
|
| Material Mixing Percentage | Function Introduction | Automatically displays the percentage of the primary material in a two-component mixture. |
| Setting | Allows free setting of density values for the primary and secondary materials. | |
| Display | Density value and the mixing ratio of the primary material. | |
| Calibration Method | One-touch automatic calibration and automatic detection. | |
| Output Method | RS-232C interface for easy data output and printing. | |
| Standard Accessories | Main Unit, Measurement Tank, Measurement Stand, Tweezer(s), Thermometer, Weight(s), Wind & Dust Cover, Granular Sample Accessory Set, Float Sample Accessory Set, Power Transformer |
|
| Optional Accessories | DE-40printer | |
| Power Supply | AC~110V/60HZ | |
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
MSE Supplies offers a variety of Density Tester. Please contact us for more information.
