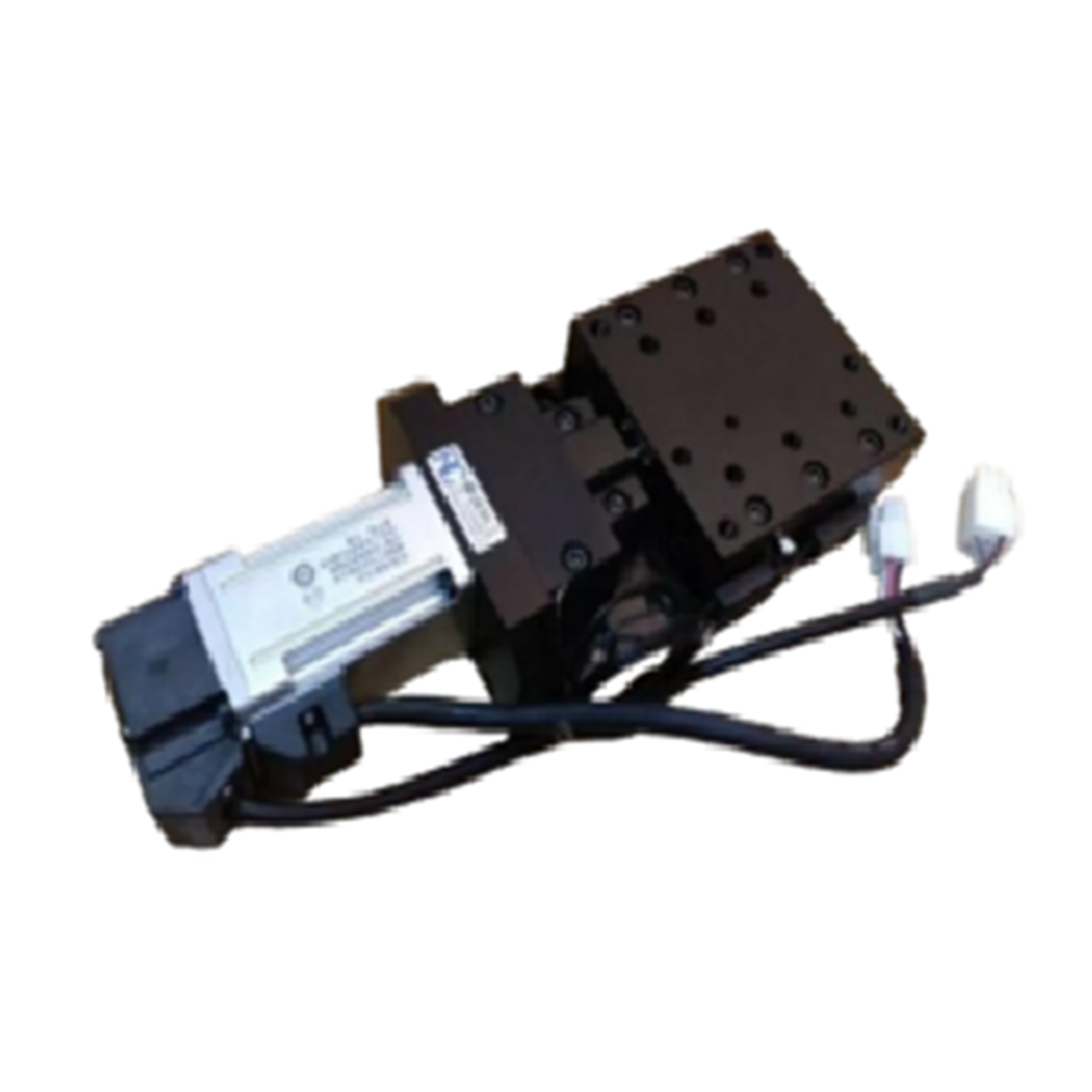

MSE PRO Motorized Liner Translation Stage, Ball Screw, 50mm, 90 x 125mm
Regular price
$ 2,225.95
Couldn't load pickup availability
Still have questions? Ask our experts!
MSE PRO Motorized Liner Translation Stage, Ball Screw, 50mm, 90 x 125mm
Specification
| Structure Description | Travel Range | 50mm |
| Table Size | 90*125mm | |
| Lead Screw Specification | Ball Screw (Lead 1mm) | |
| Guide Rails | Precision Crossed Roller Guide | |
| Stepper Motor | 43 Stepper motor | |
| Main Material | Aluminum Alloy | |
| Surface Treatment | Anodized Black | |
| Load Capacity | ≦10kg | |
| Weight | 1.4kg | |
| Accuracy Description | Resolution | 7 μm (No Subdivision) |
| 0.25 μm (20 Subdivisions) | ||
| Maximum Speed | 10mm/sec | |
| Repeat Positioning Accuracy | 6 μm (Closed-loop control 0.5 μm) | |
| Backlash | 2 μm | |
| Lost Motion | 4 μm | |
| Accessory Description | Optional limit switches and optical coupler switches | |
| Customizable for high/low temperature or vacuum applications | ||
| Interchangeable servo motor | ||
| Can be paired with our motion controller series for automated control | ||
MSE Supplies can offer a variety of optomechanical components, with different size, freedom of regulation and optical elements combination. Please contact us for customization or bulk orders.
