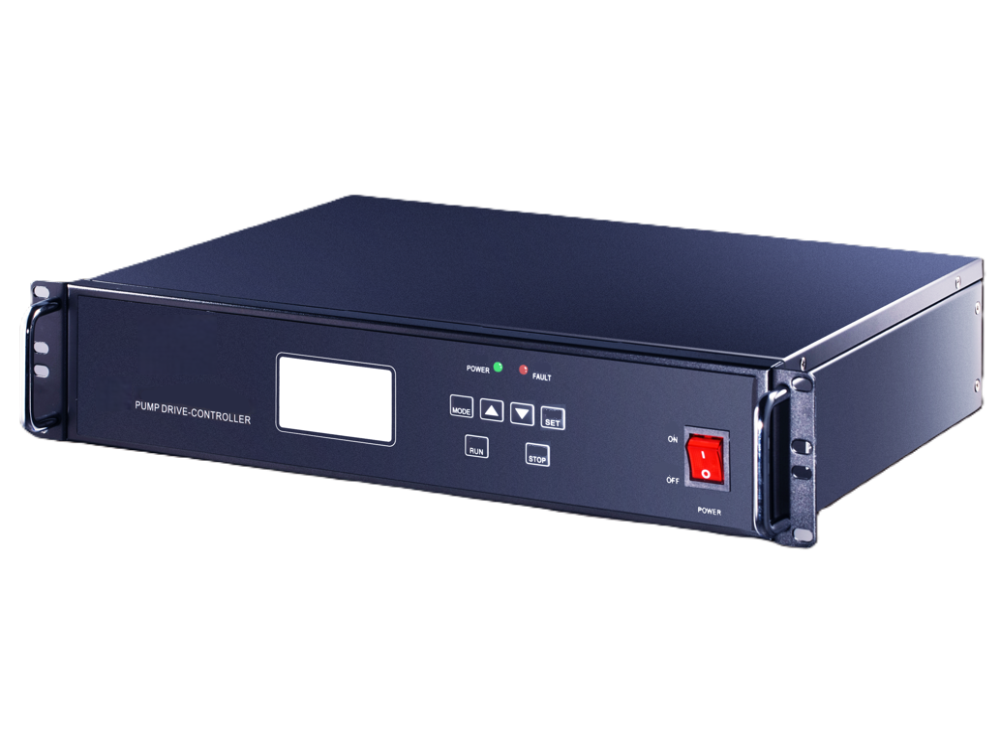

MSE PRO Molecular Vacuum Pump Controller, Pumping Speed 600-2000 L/s Easy Maintenance
SKU: CT1002
MSE PRO™ Molecular Vacuum Pump Controller, Pumping Speed 600-2000 L/s Easy Maintenance
Product Details:
MSE offers series controller of molecular pump has a top performance on multi-function and low noise. It can be applied to various molecular pumps. This user manual provides with precautions regarding installation, commissioning, operation, trouble diagnosis and daily maintenance. Please read it carefully before any installation and usage is commenced to ensure a proper operation. This manual shall be available together with the controller and should be well kept for future reference and convenience of maintenance.
Functions：
| Start/Stop | Available with Key panel , external control terminals and computer |
| Display | In the front panel: Output frequency, Output current, Output voltage, error type and function code, operation code and TMP model, 2 separate LED lights indicate the states of Electrification and Error. |
| Protection | In case of undervoltage, overvoltage, overcurrent, overheat, overload, current output limit, overcurrent and overheat protection, Password error, external interference protection |
| Working environment | Facility environment: no highly corrosive gases and dust, Temperature: -10℃～＋50℃ Humidity:＜90% ( no condensation), Vibration Strength: ＜0.5g (gravity acceleration) |
Specification:
| Input Voltage(V) | 110VAC±10％ |
| Input Frequency(Hz) | 50/60 ±5％ |
| Max output power | 750 |
| Output Frequency(Hz) | 450±10 |
| Output voltage( V/AC) | no more than 66 |
| Operation current (A) | no more than 4 |
| Max Starting current(A) | no more than 14 |
| Weight (kg) | 8.8 |
Installation Environment:
1. Away from rain, drips, steam, dust and oil-dust; no corrosion, flammable gas, liquid; no metal particles or metal powder, etc.
2. Ambient temperature: within range of -10℃~+50℃.
3. Relative humidity of environment shall be lower than 90%, without any bead coagulation.
4. No strong electromagnetic interference.
5. Vibration strength: below 0.5g (acceleration).
6. The controller should be installed inside control cabinet, sufficient ventilation shall be ensured. Ventilation space shall be secured in the surrounding
Note: This controller can only be used with designated products.
