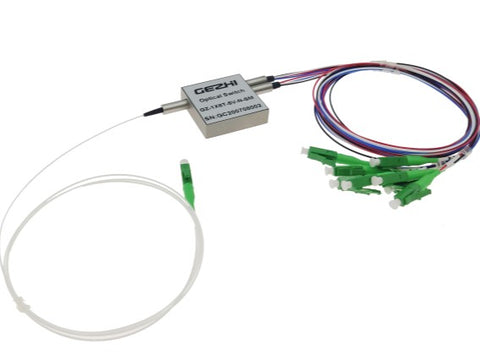

MSE PRO Mini 1x8 T Type Optical Switch
SKU: OSW010
To better serve you, we would like to discuss your specific requirement.
Please Contact Us for a quote.
MSE PRO™ Mini 1x8 T Type Optical Switch
MSE Supplies offers Mini 1x8 T Type Optical Switch. This 1×8 Optical Switch support all wavelength at 1260nm~1650nm or 850nm Multimode wavelength, it offers ultra-high reliability, low insertion loss, fast switching speed as well as bi-directional performance. The optical switches are widely used for Optical Network, Protection, Transmitter and Receiver Protection,Network Test System and Instrumentations.
Key Features
- Compact design, Miniature size
- Short switching time
- Bi-directionalLow optical distortions
- Low cross talk, Low Insertion Loss
- Wide operating wavelength Range
Parameters
|
Mini 1×8 T Type Switch |
Unit |
Typical |
|
Operation Wavelength |
nm |
850nm or 1260~1650nm |
|
Insertion Loss |
dB |
<1.0(MM), <1.2(SM) |
|
Wavelength Dependent Loss |
dB |
<0.25(MM), <0.30(SM) |
|
Polarization Dependent Loss |
dB |
<0.1 |
|
Return Loss |
dB |
MM:>35, SM: >55 |
|
Cross Talk |
dB |
MM:>40, SM: >55 |
|
Switching Time |
ms |
Typical: 4 Max:10 |
|
Repeatability |
dB |
<±0.02 |
|
Durability |
Cycles |
>10 Million |
|
Switching Type |
Latching / Non-Latching |
|
|
Optical Power Handling |
mW |
<500mW |
|
Operating Voltage |
VDC |
3V or 5V |
|
Operating Temperature |
℃ |
0~+70 |
|
Storage Temperature |
℃ |
-40~+85 |
|
Fiber Type |
/ |
SM/MM Fiber |
|
Package Dimension |
mm |
35L x 35W x 9H |
Pins
Ordering Information
| Type |
Mode |
Wavelength |
Voltage Type |
Control Model |
Fiber Diameter |
Fiber Length |
Connector |
| 1x8T |
S=SM 9/125 M5=MM 50/125 M6=MM 62.5/125 |
85=850nm 13=1310nm 15=1550nm 13/15=1310/1550nm X=Others |
3=3V 5=5V |
L=Latching N=Non- Latching |
25=250um 90=900um |
05=0.5m 10=1.0m X=Others |
0=None 1=FC/PC 2=FC/APC 3=SC/PC 4=SC/APC 5=ST/PC 6=ST/APC 7=LC/PC 8=LC/APC X=Others |
