MSE PRO Micro Cuvettes With White Walls And Stopper, 10mm Path Length, ES Quartz Glass (190 nm - 2500 nm)

10 mm Semi-Micro Quartz Cuvette with Stopper, 1.7 ml, for UV-Vis Spectroscopy

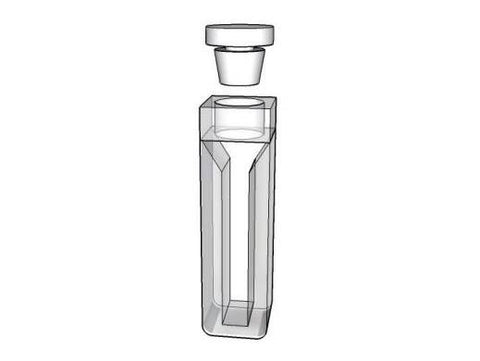

A 10 mm semi-micro quartz cuvette needs only 1.7 ml of sample: frosted white side walls narrow the chamber to a 5 mm inside width while light still passes through the 2 polished windows. The MSE PRO cell is made from ES quartz glass.

A 1.7 ml fill sits between micro and full-size cells, a practical middle ground for routine UV-Vis measurements when sample is limited.

The PTFE (Teflon) stopper seals the cell against spills and evaporation, which matters for volatile, precious or hazardous solutions.

ES quartz transmits from the deep UV at 190 nm through the visible range to 2,500 nm in the near infrared. That covers UV work such as nucleic acid readings at 260 nm and protein readings at 280 nm, as well as visible and NIR measurements.

The 10 mm path length is the standard that most spectrophotometer methods and published absorbance values assume, so results compare directly with reference data.

Outer dimensions are 45 x 12.5 x 12.5 mm (H x W x D). Check that your spectrophotometer's cell holder accepts this footprint before ordering.

The cell is made by temperature fusion. Other sizes and custom inside widths are available on request.
