MSE PRO Medium Flow Digital Distribution Peristaltic Pump, Max Speed 300rpm - MSE Supplies LLC

MSE PRO Medium Flow Digital Distribution Peristaltic Pump, Max Speed 300rpm

  • $ 86995
  • Save $ 8805

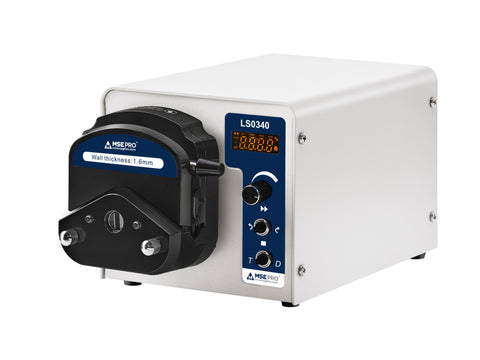

MSE PRO™ Medium Flow Digital Distribution Peristaltic Pump, Max Speed 300rpm

MSE Supplies offers a Medium Flow Digital Distribution Peristaltic Pump, the max speed of which can be up to 300rpm. It features dual working modes for distribution and transmission. Users can preset parameters such as the number of distributions and distribution time, making it convenient. It utilizes a 4-digit LED display to show the current flow or speed and includes a suction back function. Additionally, it offers multiple functions such as power-off memory and intelligent calibration. Furthermore, it supports the RS485/MODBUS communication protocol, analog control, and foot control.

This Peristaltic Pump comes with YZ1515x pump head and 2 meters of 17# silicon tube (ID: 6.4mm and WT: 1.6mm) as standard accessory. For additional tubes/pump heads beyond the standard configuration, please contact us for more detail.

Brand: MSE PRO™

Features:

  • Full-speed function: Press the knob to run at full speed, used for quickly emptying or filling the pump tube.
  • Back-suction function: In distribution working mode, the pump can be customized to reverse after stopping to prevent liquid dripping.
  • Save during power outages: Can automatically retain the control parameters from the last power outage.
  • Multiple modes: Provides distribution and transmission modes for ease of use.
  • Adaptable to multiple pump heads: YZ series, TX series, DG series, and other pump heads can be installed to meet various flow requirements. For other heads information please contact us.
  • External control function: Supports RS485/MODBUS communication protocol, analog control, and foot switch control.

    Technical Data:

    SKU# LS0340
    Speed Range 0.1 ~ 300 rpm (reversible)
    Speed Resolution 0.1 rpm
    Flow Rate 0.007 ~ 1440 mL/min
    Speed Mode Digital knob to adjust speed
    Pump Head YZ1515x as standard (For other types please contact us.)
    Standard Tube Accessory

    Length: 2 m

    Inner Diameter x Wall Thickness: 6.4 x 1.6 mm (17#)
    Display Mode 4-digit LED displays current speed/flow
    Power Supply AC110 V
    Power Consumption ＜35 W
    Timing Range 0.1 s ~ 9999 min
    Quantitative Range 0.001 mL ~ 9999 L
    External Control Method Start control/direction control/speed control (0 ~ 5 V, 0 ~ 10 V, 4 ~ 20 mA optional) RS485 serial communication.
    Drive Size 243 x 154 x 144.3 mm
    Drive Weight 4.3 kg


    Flow Rates for Tubing Compatible with the YZ1515x Pump Head

    For Max Flow Rate of 300rpm and 600rpm, multiply by 3 and 6, respectively.

    Tubing size (ID x Wall thickness) Min. flow rate (0.1 rpm) Max. flow rate (100 rpm)
    0.8 mm x 1.6 mm (13#) 0.007 mL/min 7 mL/min
    1.6 mm x 1.6 mm (14#) 0.027 mL/min 27 mL/min
    2.4 mm x 1.6 mm (19#) 0.051 mL/min 51 mL/min
    3.1 mm x 1.6 mm (16#) 0.082 mL/min 82 mL/min
    4.8 mm x 1.6 mm (25#) 0.17 mL/min 170 mL/min
    6.4 mm x 1.6 mm (17#) 0.29 mL/min 290 mL/min
    7.9 mm x 1.6 mm (18#) 0.38 mL/min 380 mL/min
