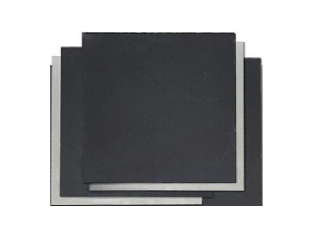

MSE PRO Manganese dioxide electrode (steel foil substrate)

Manganese dioxide (MnO₂) is used in various electrode applications due to its excellent electrochemical properties, particularly in energy storage and conversion technologies like lithium-ion battery, supercapacitors, fuel cells and so on. The specific application depends on the energy needs of the system, with vanadium pentoxide's versatility making it a valuable material in these high-performance energy systems.

Parameters:

Decent density (mg/cm2)：12.6mg/cm²(According to the actual label received on the electrode)

Active material gram capacity (mAh/g)：100mAh/g（1h discharge）1.0-1.9V

Recommended compaction density (g/cc)：1.5~2.2

Fluid collecting thickness (um)：20μm

Coating surface density (mg/cm2)：5-7.5mg/cm2

Active substance ratio：80.0%

Pole plate size：10*10cm

Test conditions: Room temperature 25 ℃, 0.1A/g(1.0C), 1.0-1.9V

Shelf life: Six months (vacuum sealed storage), to be used up within one month after opening

Packaging requirements: Vacuum packaging with aluminum-plastic film, outer layer packaged in plastic bags

Storage requirements: Sealed, stored in a cool and dry place

Baking conditions for electrode: Bake at 100 ℃ for 2 hours

• The manganese dioxide electrode sheet (steel foil substrate) is made of electrolytic manganese dioxide (γ crystal form) material in a thin sheet
