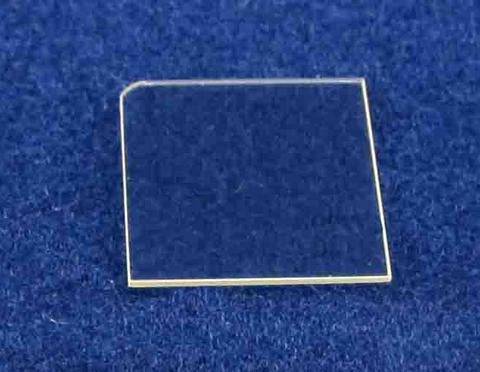

MSE PRO Magnesium Fluoride MgF2 Crystal Substrates
Couldn't load pickup availability
Still have questions? Ask our experts!
Magnesium Fluoride crystals are optically transparent well into the VUV region to the hydrogen Lyman-alpha line (121nm) and beyond. Magnesium Fluoride is used mostly for UV optics and is excellent for excimer laser applications.
For bulk and customized MgF2 crystals, please contact us for a quote.
Magnesium Fluoride Crystal Substrates Properties
|
Chemical Formula |
MgF2 |
|---|---|
| CAS Number | 7783-40-6 |
| Crystal Structure |
Tetragonal, Rutile structure, P42/mnm
|
|
Lattice Constant |
a=b=4.6213Å, c=3.0519Å |
| Crystal Orientation | (100), (001), (110), (111) |
| Sizes |
10x10x0.5mm, 10x10x1.0mm, 1 inch diameter, 2 inch diameter, other sizes are available upon request |
| Surface Polish |
Single side polished (SSP) or Double side polished (DSP) |
|
Molecular Weight |
62.30 g/mol |
|
Appearance |
colorless solid |
|
Melting Point |
1255 °C |
|
Density |
3.18 g/cm3 |
|
Solubility in H2O |
0.0002g /100g water at 20 oC |
|
Poisson's Ratio |
0.276 |
|
Specific Heat |
1003 J Kg m-1 K-1 |
|
Thermal Conductivity |
21 (parallel to C axis) W m-1 K-1 at 300K 33.6 (perpendicular to C axis) W m-1 K-1 at 300K |
|
Thermal Expansion Coefficient |
13.7x10-6 / oC, parallel to C axis 8.9x10-6/ oC, perpendicular to C axis |
|
Young's Modulus |
138 GPa |
|
Refractive Index |
ho 1.37740 |
| Transmission Range | 0.12 to 7 μm |
